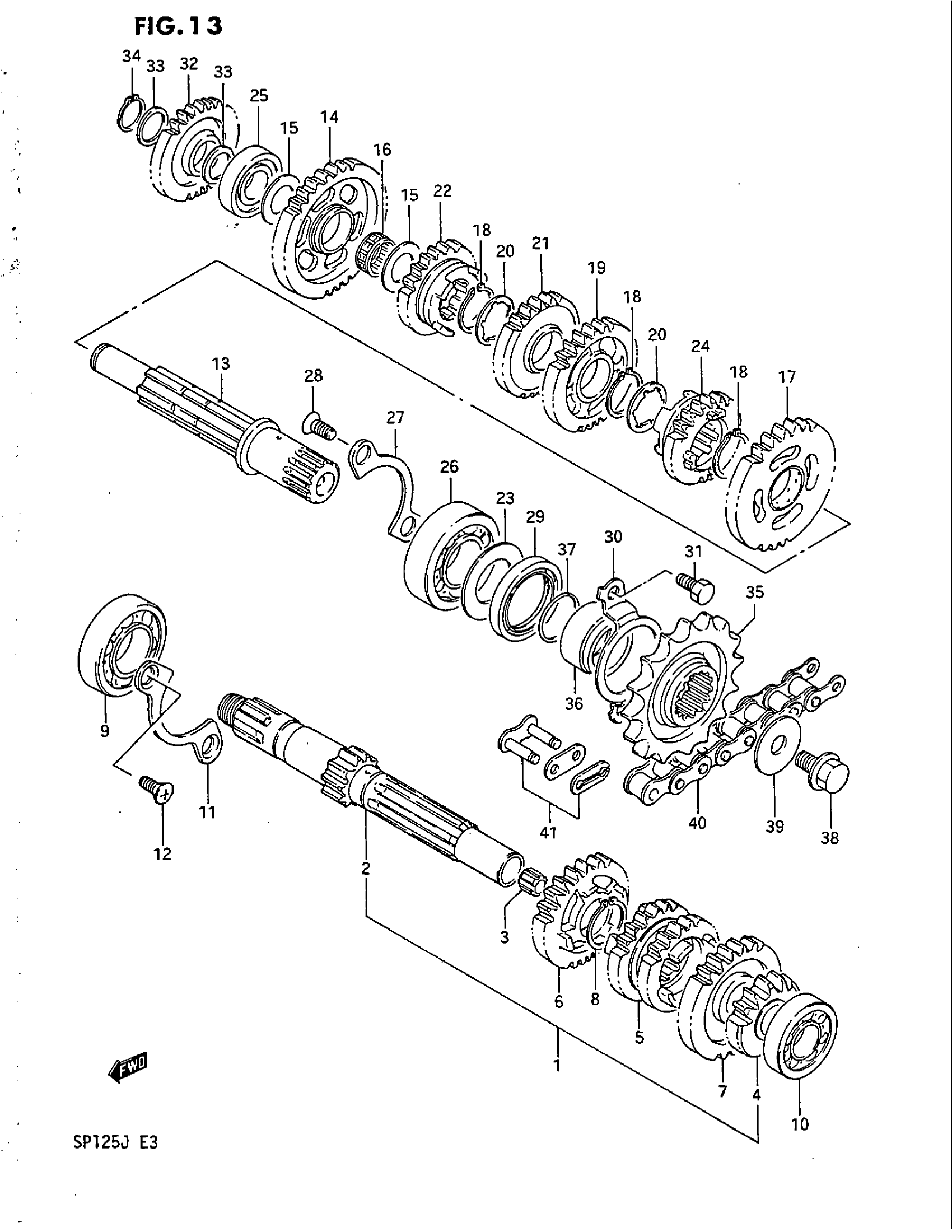

Suzuki SP125 (1988) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | Includes Item(s) 2 - 8

24120-44A00

Unavailable

2

SHAFT, COUNTER (NT:11) This part replaces 24121-05201.

24120-05810

Unavailable

3

BUSH

24125-38201

$6.38

4

GEAR,2ND DRIVE This part replaces 24221-05201.

24221-05202

Unavailable

5

GEAR, 3RD & 4TH DRIVEN This part replaces 24231-05202.

24231-05203

Unavailable

6

GEAR, 5TH DRIVE (NT:26) This part replaces 24251-05211.

24251-05212

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 24260-44A00.

24260-44A01

Unavailable

8

CIRCLIP

09380-20009

$2.20

9

BEARING, DRIVE SHAFT LH This part replaces 09262-20062.

09262-20069

$23.28

10

BEARING This part replaces 08123-60020.

08123-60027

$23.62

11

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

12

SCREW This part replaces 02122-06128.

02122-06127

$1.84

13

SHAFT, DRIVE

24130-44A00

Unavailable

14

GEAR, 1ST DRIVEN (NT:33) This part replaces 24311-05200.

24311-05202

Unavailable

15

WASHER

08211-15251

$1.67

16

BEARING

09263-15023

Unavailable

17

GEAR, 2ND DRIVEN (NT:26) This part replaces 24320-05201.

24320-05202

Unavailable

18

CIRCLIP

09380-20009

$2.20

19

GEAR, 3RD DRIVEN (NT:26) This part replaces 24331-05201.

24331-05203

Unavailable

20

WASHER

09167-20011

$2.31

21

GEAR, 4TH DRIVEN (NT:23) This part replaces 24341-05201.

24341-05203

Unavailable

22

GEAR, 5TH DRIVEN (NT:24) This part replaces 24351-05210.

24351-05211

Unavailable

23

WASHER, OIL SEALING

24359-42A00

$4.35

24

NO DESCRIPTION AVAILABLE This part replaces 24361-05210.

24361-05211

Unavailable

25

BEARING, RH

09264-15001

Unavailable

26

BEARING, LH

09262-22018

$25.60

27

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

28

SCREW This part replaces 02122-06128.

02122-06127

$1.84

29

OIL SEAL (30X40X6)

09283-30053

$9.24

30

RETAINER, DRIVE SHAFT OIL SEA This part replaces 24751-42A01.

24751-42A10

$4.52

31

BOLT This part replaces 01107-06106.

01500-0610B

$1.81

32

GEAR, KICK STARTER IDLE

26260-05201

Unavailable

33

WASHER

08211-15201

$2.38

34

CIRCLIP This part replaces 08331-31159.

08331-3115A

$2.25

35

SPROCKET,ENGINE This part replaces 27511-44A00.

27510-44A11

Unavailable

36

SPACER, ENGINE SPROCKET

27531-42A00

$23.07

37

O RING (D:2.5,ID:21)

09280-21008

$1.91

38

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.32

39

WASHER

08211-08283

$2.81

40

CHAIN ASSY,DRIV | Includes Item(s) 41 This part replaces 27600-20511.

27600-46912-134

$70.38

41

.JOINT SET, CHAIN This part replaces 27620-46911.

27620-46912

$5.55

41

JOINT (RK) This part replaces 27620-05220.

27620-40220

$11.07
