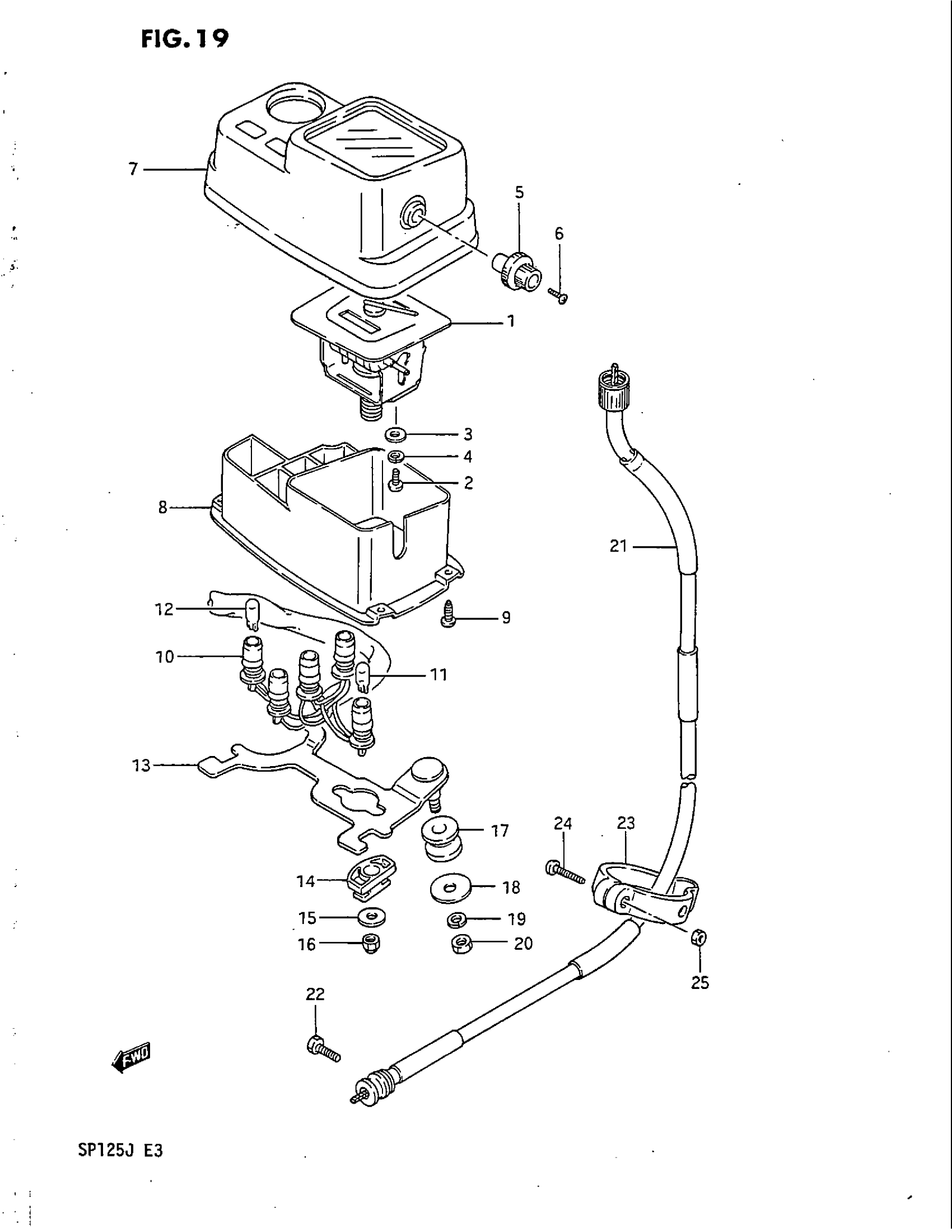

Suzuki SP125 (1988) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-44A30

Unavailable

2

SCREW This part replaces 02112-04126.

02112-0412A

$1.49

3

WASHER This part replaces 08322-21046.

08322-0104A

$1.91

4

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

5

KNOB, TRIP

34124-14A10

$9.17

6

SCREW (2X6) This part replaces 34981-13A00.

09139-02003

$1.65

7

HOOD, METER | MODEL G

34150-14A30

Unavailable

7

HOOD, METER | MODEL H/J

34150-14A70

Unavailable

8

CASE, METER

34111-14A30

Unavailable

9

.SCREW This part replaces 34183-14A00.

34184-12B00

$2.45

10

SOCKET, METER | MODEL G

34173-14A30

Unavailable

10

SOCKET, METER | MODEL H/J

34173-14A10

Unavailable

11

BULB (6V,3W) | MODEL GMODEL H/J

09471-06053

$2.88

12

BULB (6V,1.7W)

09471-06052

$4.17

13

BRACKET, METER

34950-44A00

Unavailable

14

CUSHION

34189-14A10

$5.50

15

WASHER (5.5X16X1.2) This part replaces 09160-05031.

09160-05037

$1.49

16

NUT This part replaces 08313-11055.

08313-1005B

$2.70

17

CUSHION

34956-15100

$3.71

18

WASHER This part replaces 09160-06007.

09160-06084

$1.78

19

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

20

NUT This part replaces 08310-11065.

08310-0006A

$1.84

21

NO DESCRIPTION AVAILABLE This part replaces 34910-44A00.

34910-01D03

$40.10

22

BOLT This part replaces 01107-05167.

01500-0516B

$2.15

23

CLAMP, METER CABLE

34938-01A00

$13.05

24

SCREW This part replaces 02112-05165.

02112-05164

$2.63

25

NUT This part replaces 08310-12055.

08310-0005A

$1.84
