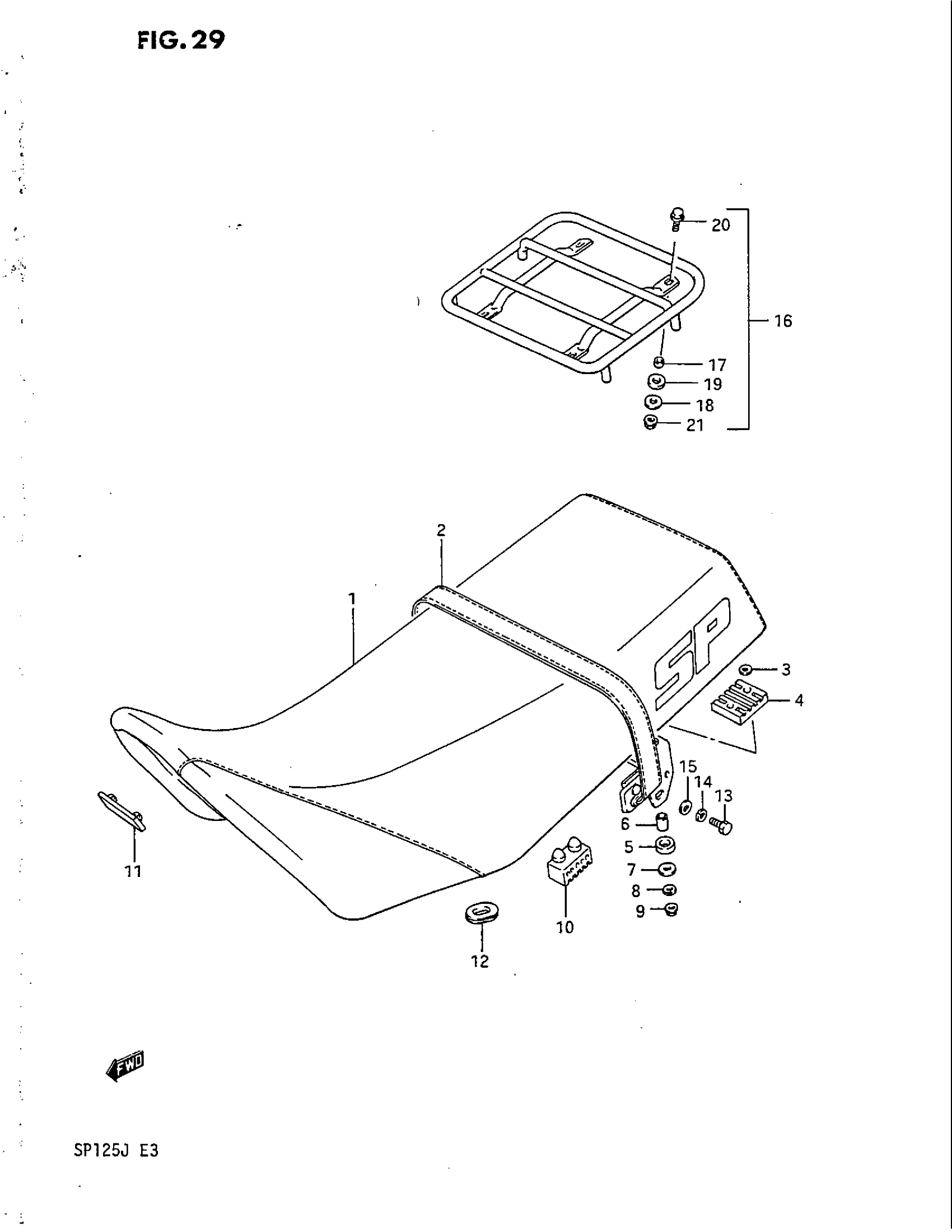

Suzuki SP125 (1988) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 45100-44A21-58D.

45100-44X01-4UZ

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H/J; Includes Item(s) 2 - 12 This part replaces 45100-44A40-4UZ.

45100-44X01-4UZ

Unavailable

2

BAND, SEAT GRIP (BLUE) | MODEL G This part replaces 45180-42A00-58D.

45180-42A00-4UZ

Unavailable

2

BAND, SEAT GRIP (BLUE) | MODEL H/J

45180-42A00-4UZ

Unavailable

3

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

4

CUSHION, UPPER

45150-23450

$6.38

5

CUSHION, LOWER

45147-23450

Unavailable

6

SPACER

45219-23450

Unavailable

7

WASHER. LOWER

08212-06201

$1.67

8

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

9

NUT This part replaces 08310-11066.

08310-0006A

$1.84

10

CUSHION

45149-31300

$3.56

11

CUSHION, FRONT

09321-08009

$3.05

12

GROMMET

09329-08003

$3.16

13

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

14

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

15

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

16

NO DESCRIPTION AVAILABLE | OPT; Includes Item(s) 17 - 21 This part replaces 46300-13830.

46300-13831

Unavailable

17

SPACER, SPORTS CARRIER | OPT

46356-13A00

Unavailable

18

WASHER | OPT

09160-06056

$1.72

19

.CUSHION | OPT This part replaces 09320-10036.

09320-10077

$2.23

20

BOLT | OPT This part replaces 01517-06205.

01550-0620A

$1.97

21

NUT | OPT This part replaces 08316-16064.

08316-1006B

$2.50
