1988 Suzuki SP125 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1988 Suzuki SP125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

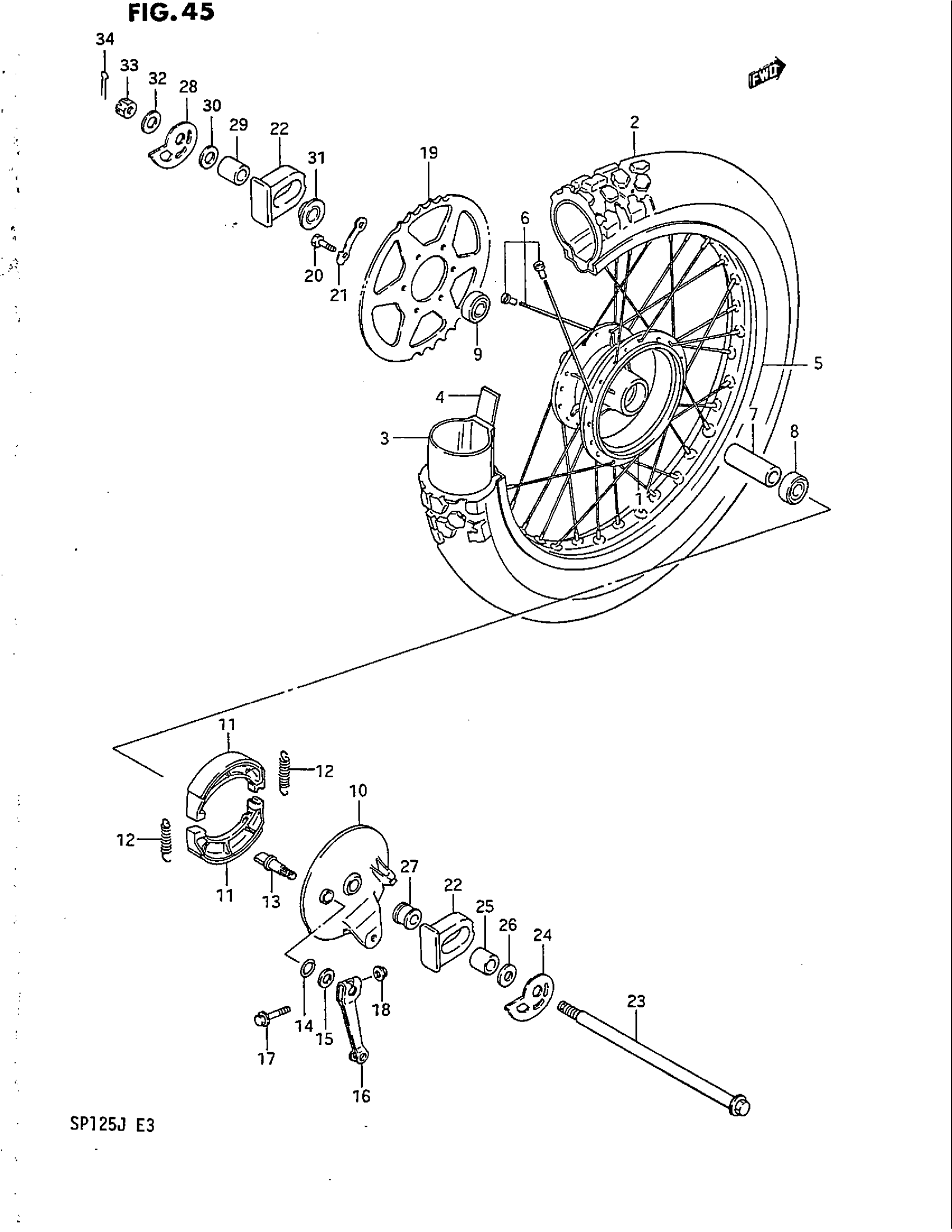

1988 Suzuki SP125 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL (BLACK) This part replaces 64110-44A00.

64110-44A01

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 65100-44A00.

65100-44A50

1
Out of stock

3

TUBE ASSY, WHEEL INNER This part replaces 65200-33030.

65200-44AA0

1
Out of stock

4

PROTECTOR, INNER TUBE This part replaces 65261-29230.

65261-33030

1
Out of stock

5

RIM, REAR WHEEL (185X18) GOLD

65311-44A03

1
Out of stock

6

SPOKE ASSY, REAR

65320-44A02

1
Out of stock

7

SPACER, HUB BEARING

09180-15013

1
Out of stock

8

BEARING, RH

08143-62027

1
Out of stock

9

BEARING This part replaces 08123-63027.

08123-6302B

1
Out of stock

10

PANEL, REAR HUB

64210-48000

1
Out of stock

11

NO DESCRIPTION AVAILABLE | MODEL G/H This part replaces 54410-37400.

54400-37820

2
Out of stock

11

SHOE SET,BRAKE | MODEL J This part replaces 54410-37410.

54400-37830

2
Out of stock

12

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

13

CAM, BRAKE This part replaces 54441-29304.

54441-29305

1
Out of stock

14

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

1
Out of stock

15

WASHER This part replaces 09160-14001.

09160-14055

1
Out of stock

16

LEVER, BRAKE CAM

64451-30501

1
Out of stock

17

BOLT This part replaces 01517-06408.

01550-06407

1
Out of stock

18

NUT This part replaces 09159-06017.

08319-31067

1
Out of stock

19

SPROCKET, REAR (NT:53) This part replaces 64511-44A01.

64511-44A02

1
Out of stock

20

BOLT

09111-08065

6
Out of stock

21

WASHER

09169-08013

3
Out of stock

22

CAP

61470-44A00

2
Out of stock

23

AXLE, REAR This part replaces 64711-44A10.

64711-44A11

1
Out of stock

24

ADJUSTER, CHAIN RH

61411-42A00

1
Out of stock

25

SPACER

61413-44A00

1
Out of stock

26

WASHER

09160-15002

1
Out of stock

27

SPACER, AXLE RH

64741-05200

1
Out of stock

28

ADJUSTER, CHAIN LH

61421-42A00

1
Out of stock

29

SPACER

61413-44A00

1
Out of stock

30

WASHER

09160-15002

1
Out of stock

31

SPACER, AXLE LH

64750-05202

1
Out of stock

32

WASHER (14.5X30X3.2) This part replaces 09160-14033.

09160-14062

1
Out of stock

33

NUT, HUB This part replaces 08314-41148.

08314-4014B

1
Out of stock

34

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock
