1988 Suzuki SP125 Rear Cushion Diagram

← All diagrams

Find the part on the Rear Cushion diagram for your 1988 Suzuki SP125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

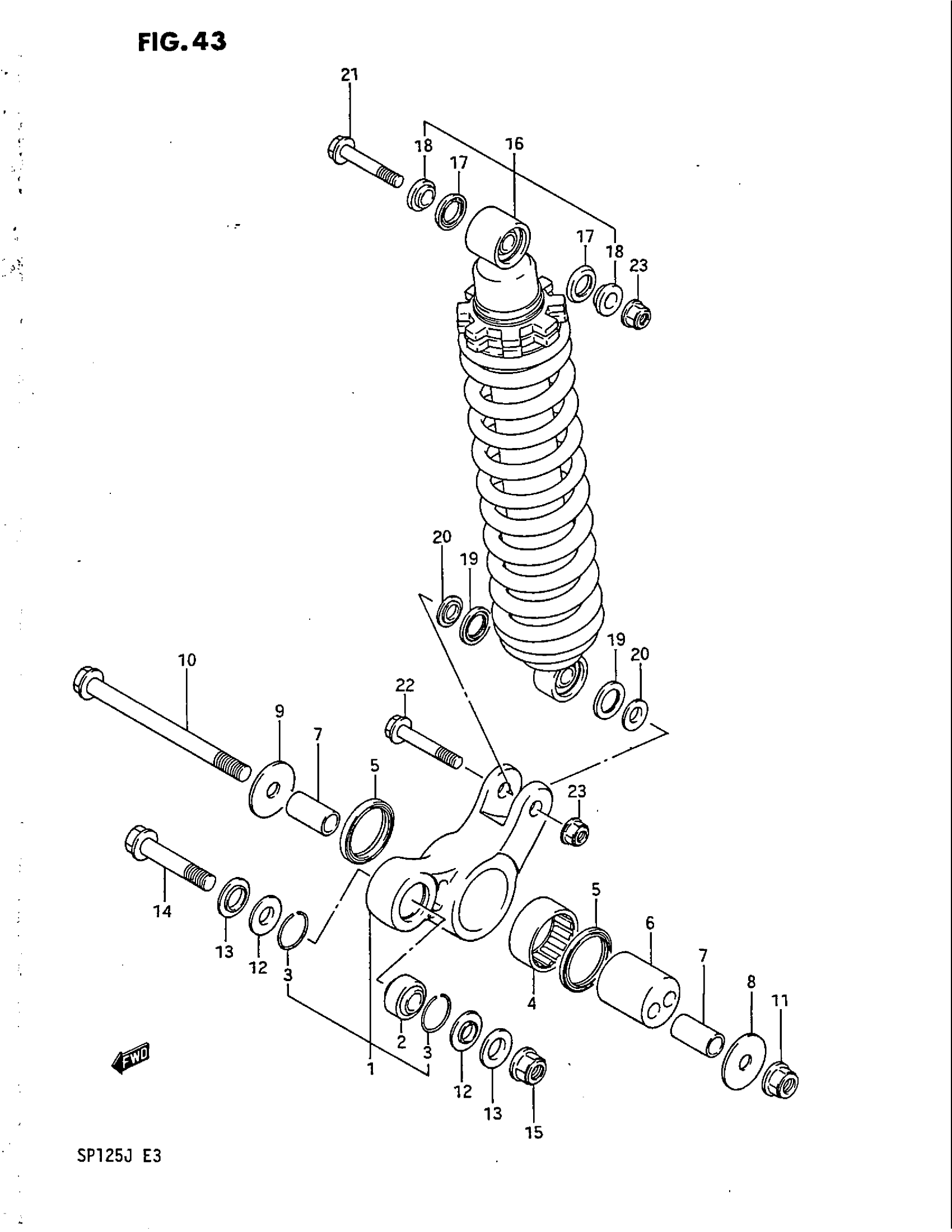

1988 Suzuki SP125 Rear Cushion Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-42812

1
Out of stock

2

BEARING, FRONT

09269-12006

1
Out of stock

4

BEARING, CENTER

09263-37003

1

$53.83

In stock

5

DUST SEAL

62624-42A00

2

$11.37

In stock

6

SPACER

62623-42A11

1
Out of stock

7

SPACER

62646-42A11

2
Out of stock

8

WASHER, LH

09160-12065

1

$3.84

In stock

9

WASHER, RH

62625-42A00

1
Out of stock

10

SHAFT, REAR CUSHION LEVER CENTER This part replaces 62621-42A11.

62621-42AA0

1
Out of stock

11

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

12

DUST SEAL

62647-05A00

2

$3.72

In stock

13

SPACER

62316-05A01

2

$7.70

In stock

14

BOLT

62668-42A02

1
Out of stock

15

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

16

NO DESCRIPTION AVAILABLE | BLACK,MODEL G This part replaces 62100-44A20-019.

62100-44A23-019

1
Out of stock

16

NO DESCRIPTION AVAILABLE | BLUE,MODEL H This part replaces 62100-44A20-19F.

62100-44A23-34S

1
Out of stock

16

NO DESCRIPTION AVAILABLE | BLUE,MODEL J; Includes Item(s) 17 - 20 This part replaces 62100-44A21-34S.

62100-44A23-34S

1
Out of stock

17

DUST SEAL

62226-20900

2

$14.73

In stock

18

COLLAR

62684-20900

2

$13.72

In stock

19

2

$14.73

In stock

20

COLLAR

62684-31300

2

$14.00

In stock

21

1

$5.52

In stock

22

BOLT, LOWER

09103-10126

1
Out of stock

23

NUT

08319-31107

2

$2.92

In stock
