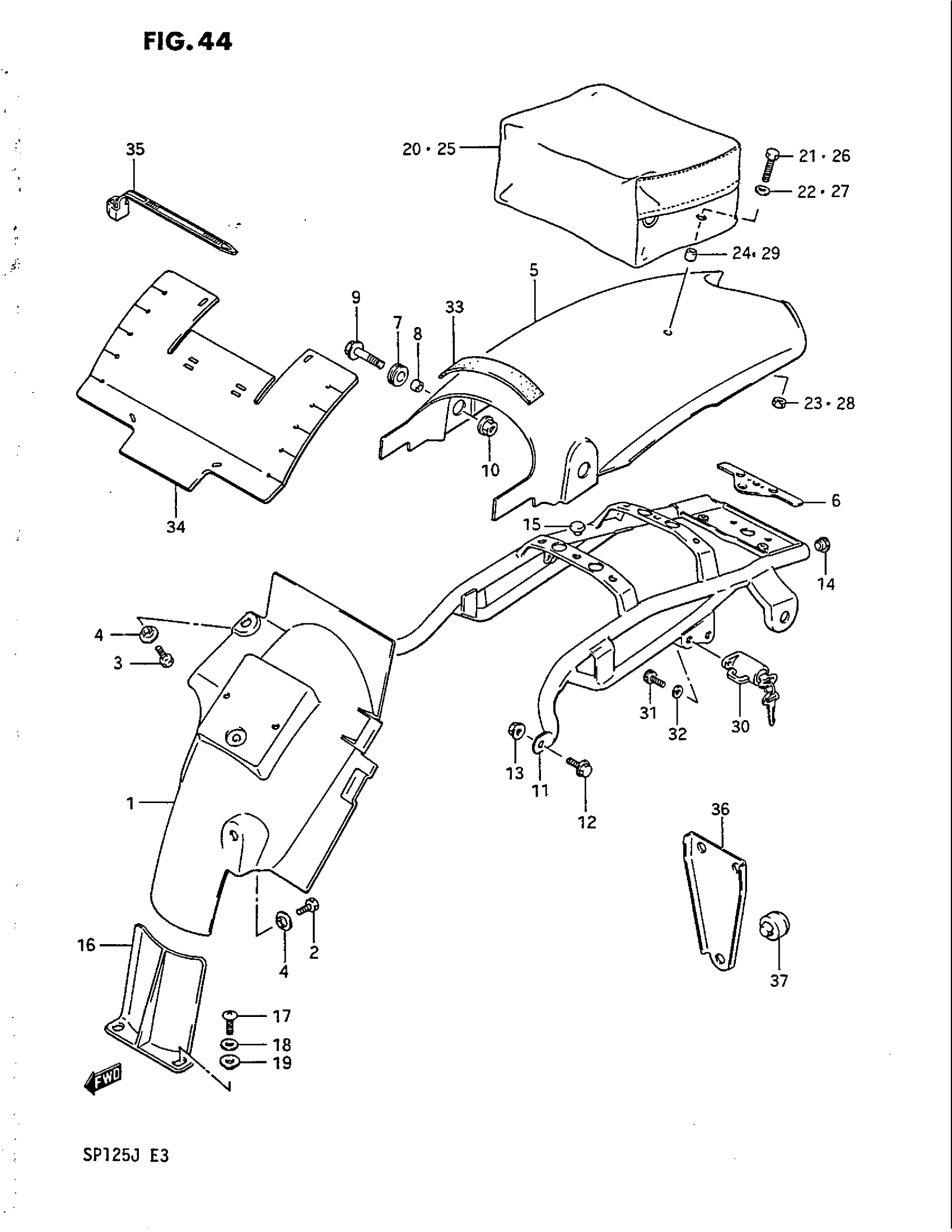

Suzuki SP125 (1988) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT This part replaces 63112-42A00.

63112-42A10

Unavailable

2

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

3

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

4

WASHER This part replaces 09169-06028.

09169-06041

$2.20

5

NO DESCRIPTION AVAILABLE This part replaces 63113-13A10-14C.

63113-13A01-14C

Unavailable

6

CUSHION

63191-13A00

Unavailable

7

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

8

SPACER This part replaces 09180-08021.

09180-08188

$2.56

9

BOLT This part replaces 01517-08305.

01550-0830A

$3.04

10

NUT

08319-31087

$2.32

11

REINFORCEMENT

63120-42A21

Unavailable

12

BOLT (8X20) This part replaces 09103-08102.

09103-08505

$3.58

13

NUT

08319-31087

$2.32

14

PLUG This part replaces 09250-13001.

09250-13004

$3.40

15

CUSHION

09321-06016

Unavailable

16

MUD GUARD, REAR UNIT This part replaces 63411-42A00.

63411C42A00J000

Unavailable

17

SCREW

02142-06167

$1.49

18

WASHER (6.5X16X1.2)

09160-06019

$1.49

19

WASHER This part replaces 09169-06025.

09169-06010

$2.60

20

NO DESCRIPTION AVAILABLE | BLUE/WHITE,MODEL G This part replaces 94900-42A00-7TP.

94900-42811-9DM

Unavailable

21

BOLT | MODEL G This part replaces 01107-06257.

01500-06257

$1.97

22

WASHER | MODEL G This part replaces 09160-06007.

09160-06084

$1.78

23

NUT | MODEL G This part replaces 08319-31066.

08319-31067

$2.03

24

SPACER (6.5X9X9) | MODEL G This part replaces 09180-06011.

09180-06263

$2.03

25

BAG,SEAT TAIL | BLUE/WHITE,MODEL H/J; Includes Item(s) 26 - 29 This part replaces 94900-42810-9DD.

94900-42811-9DD

Unavailable

26

BOLT | MODEL H/J This part replaces 01107-06257.

01500-06257

$1.97

27

WASHER | MODEL H/J This part replaces 09160-06007.

09160-06084

$1.78

28

NUT | MODEL H/J This part replaces 08319-31066.

08319-31067

$2.03

29

SPACER (6.5X9X9) | MODEL H/J This part replaces 09180-06011.

09180-06263

$2.03

30

LOCK SET, HELME This part replaces 95700-35821.

95700-49850

Unavailable

31

BOLT, NO.3 This part replaces 09106-06024.

07130-0610B

$3.21

32

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

33

CUSHION

63191-44A00

Unavailable

34

MUD FLAP

63412-44A00

Unavailable

35

CLAMP

09407-14403

$2.26

36

HOLDER, LICENSE PLATE This part replaces 63462-44A01.

63462-42A00

Unavailable

37

CUSHION

09321-06023

$2.50
