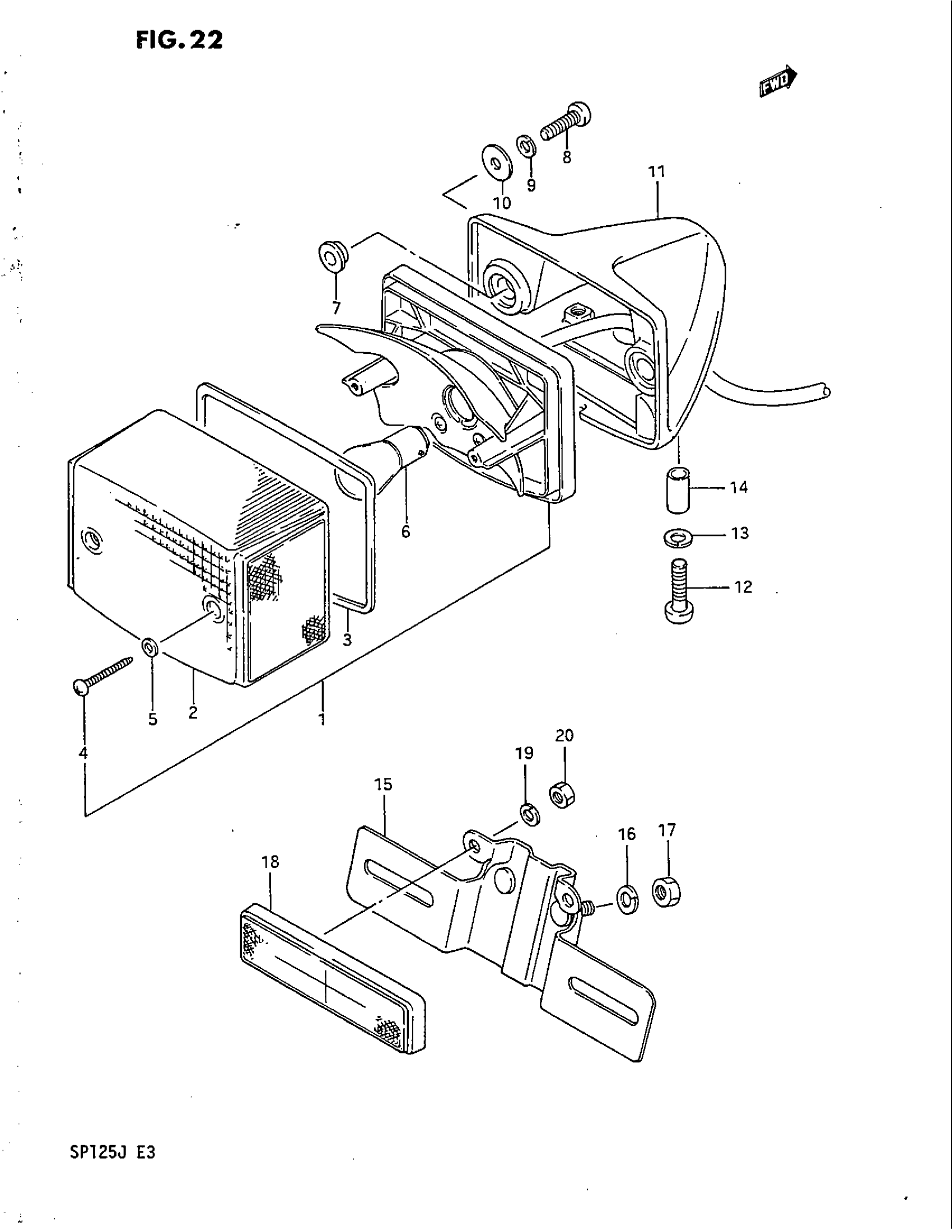

Suzuki SP125 (1988) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,RR CO | Includes Item(s) 2 - 10 This part replaces 35720-44A30.

35710-44B10-999

Unavailable

2

LENS

35712-48510

$65.02

3

GASKET

35713-48510

$6.17

4

SCREW This part replaces 03211-04308.

03211-04306

$1.78

5

GASKET

35627-43010

$2.28

6

BULB (6V,32/3CP) This part replaces 09471-06066.

09471-06030

Unavailable

7

SPACER

35766-01A00

Unavailable

8

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

9

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

10

WASHER (5.5X16X1.2) This part replaces 35727-17210.

09160-05037

$1.49

11

BRACKET UNIT

35730-44A30

Unavailable

12

SCREW This part replaces 02112-06256.

02112-0625A

$1.80

13

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

14

SPACER (6.4x9.2x12)

09180-06121

$1.98

15

BRACKEWT, LICENSE PLATE

35927-44A01

Unavailable

16

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

17

NUT This part replaces 08310-11065.

08310-0006A

$1.84

18

REFLEX REFLECTOR, REAR

35970-44A00

Unavailable

19

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

20

NUT This part replaces 08310-11058.

08310-00057

$1.84
