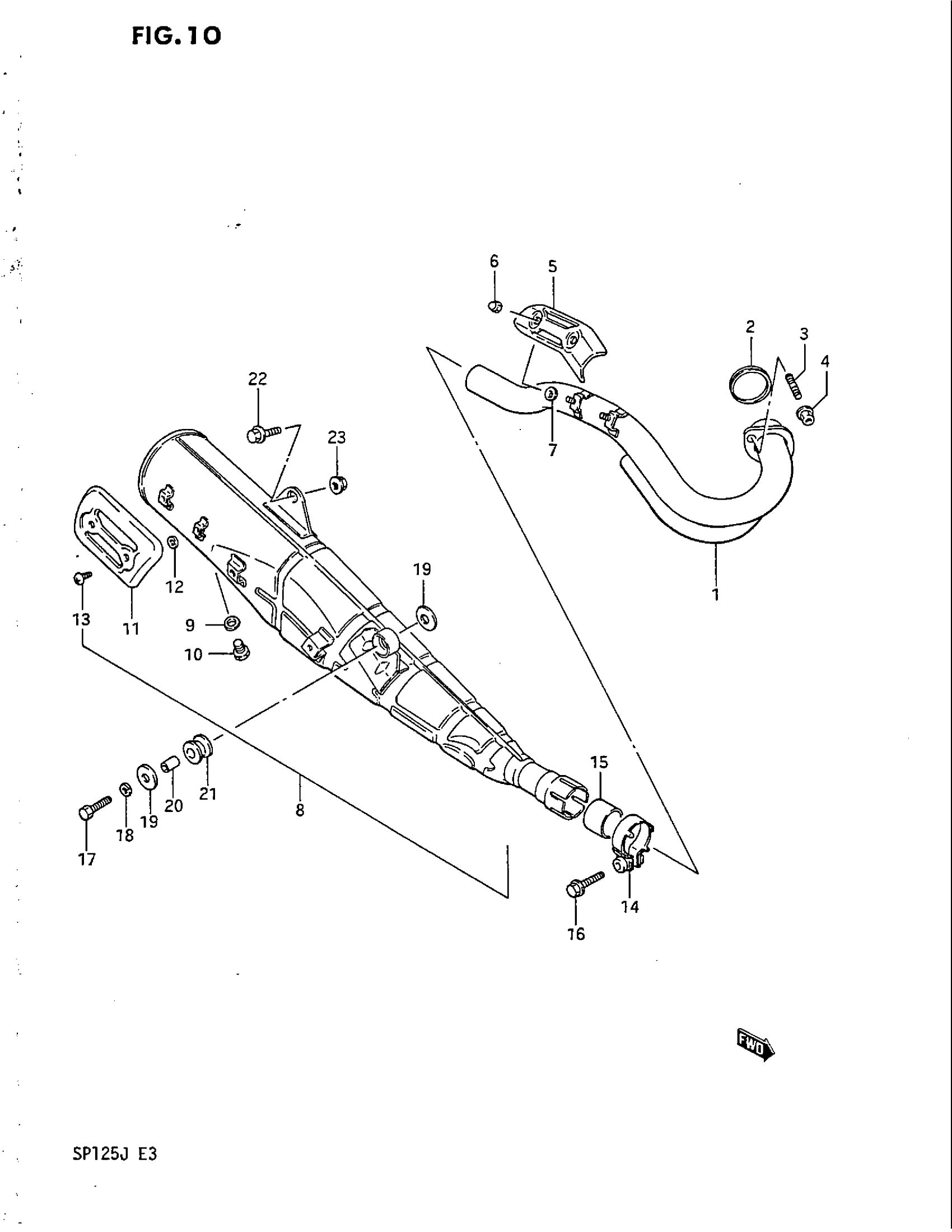

Suzuki SP125 (1988) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-44A01

Unavailable

2

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$7.22

3

STUD BOLT

09108-08207

$2.53

4

NUT This part replaces 08319-31085.

08319-3108A

$2.32

5

COVER, EXHAUST PIPE

14186-42A01

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 09159-06037.

09159-06037-XC0

Unavailable

7

GASKET (6X16X1.4) This part replaces 09168-06022.

09168-06122

$2.73

8

MUFFLER ASSY | Includes Item(s) 9 - 13 This part replaces 14301-44A11-H01.

14301-44A60-H01

Unavailable

9

GASKET

09168-12002

$1.59

10

PLUG

09247-12103

$2.84

11

COVER

14781-42A10

Unavailable

12

GASKET, MUFFLER COVER This part replaces 09168-06020.

09168-06120

$2.92

13

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49

14

CLAMP, MUFFLER This part replaces 14459-05210.

14459-44A00

Unavailable

15

CONNECTOR, MUFFLER This part replaces 14771-14600.

14771-14601

Unavailable

16

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

17

BOLT This part replaces 01107-08355.

01500-0835B

$3.04

18

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

19

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

20

SPACER This part replaces 09180-08102.

09180-08194

$3.05

21

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.98

22

BOLT (8X25)

09103-08065

Unavailable

23

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26
