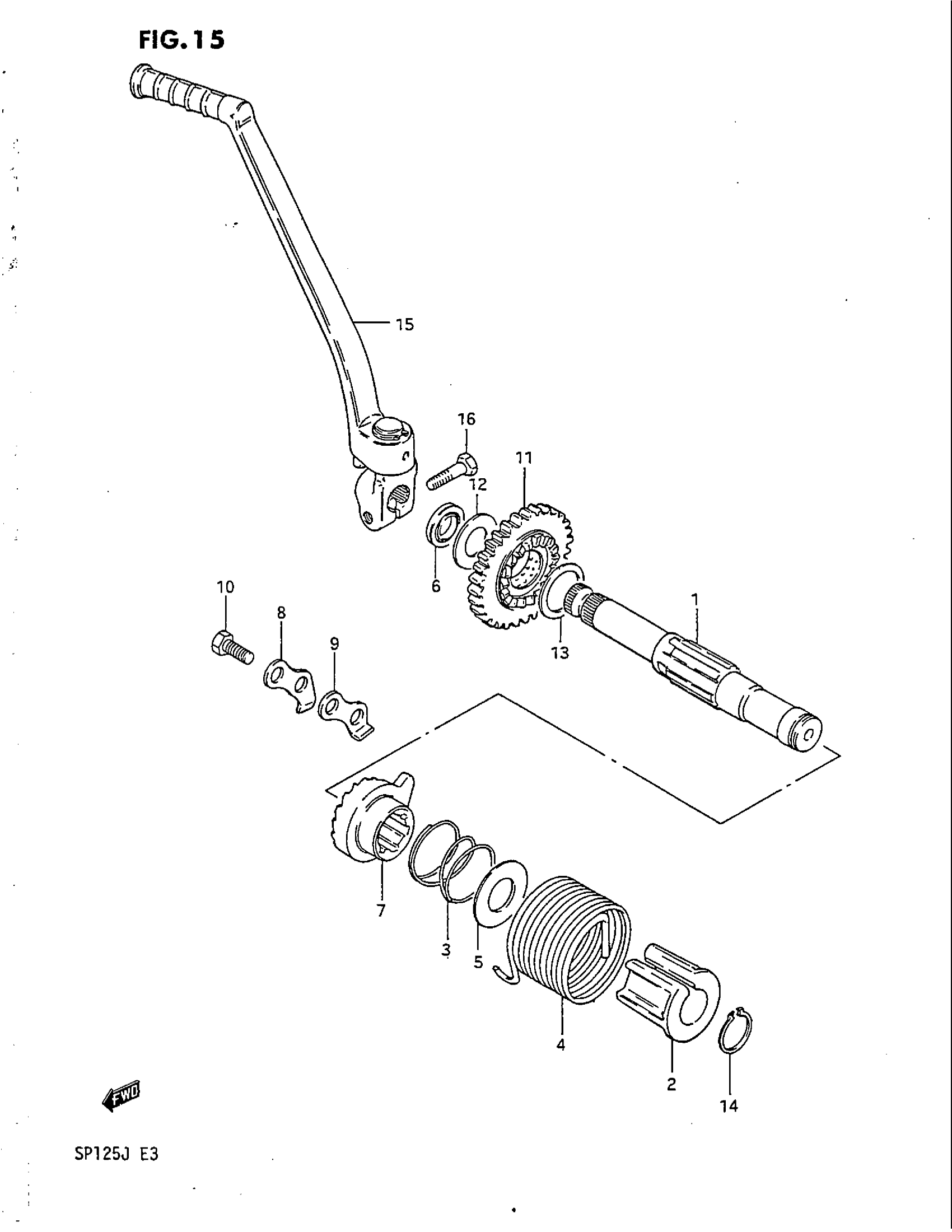

Suzuki SP125 (1988) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER This part replaces 26211-05202.

26211-05203

$91.90

2

GUIDE, KICK STARTER

26221-05200

$8.42

3

SPRING

09440-32006

$2.38

4

SPRING

09448-45003

$6.53

5

PLATE

08211-17341

$2.50

6

OIL SEAL (16X24X5)

09285-16003

$3.42

7

STARTER, KICK This part replaces 26231-38201.

26231-38202

$34.45

8

GUIDE, KICK STARTER

26232-38200

Unavailable

9

STOPPER, KICK STARTER

26233-32400

$5.40

10

BOLT, REAR This part replaces 01107-08207.

01500-08207

$2.53

11

GEAR, KICK STARTER DRIVE This part replaces 26240-05201.

26240-05202

Unavailable

12

WASHER, RH

09160-16003

$2.92

13

WASHER (20X26X1) This part replaces 08211-20261.

09181-20139

$2.62

14

CIRCLIP

09380-17001

$1.98

15

LEVER ASSY, KICK STARTER

26300-42A00

$115.65

16

BOLT,8X25 This part replaces 09100-08193.

09100-08193-XC0

Unavailable
