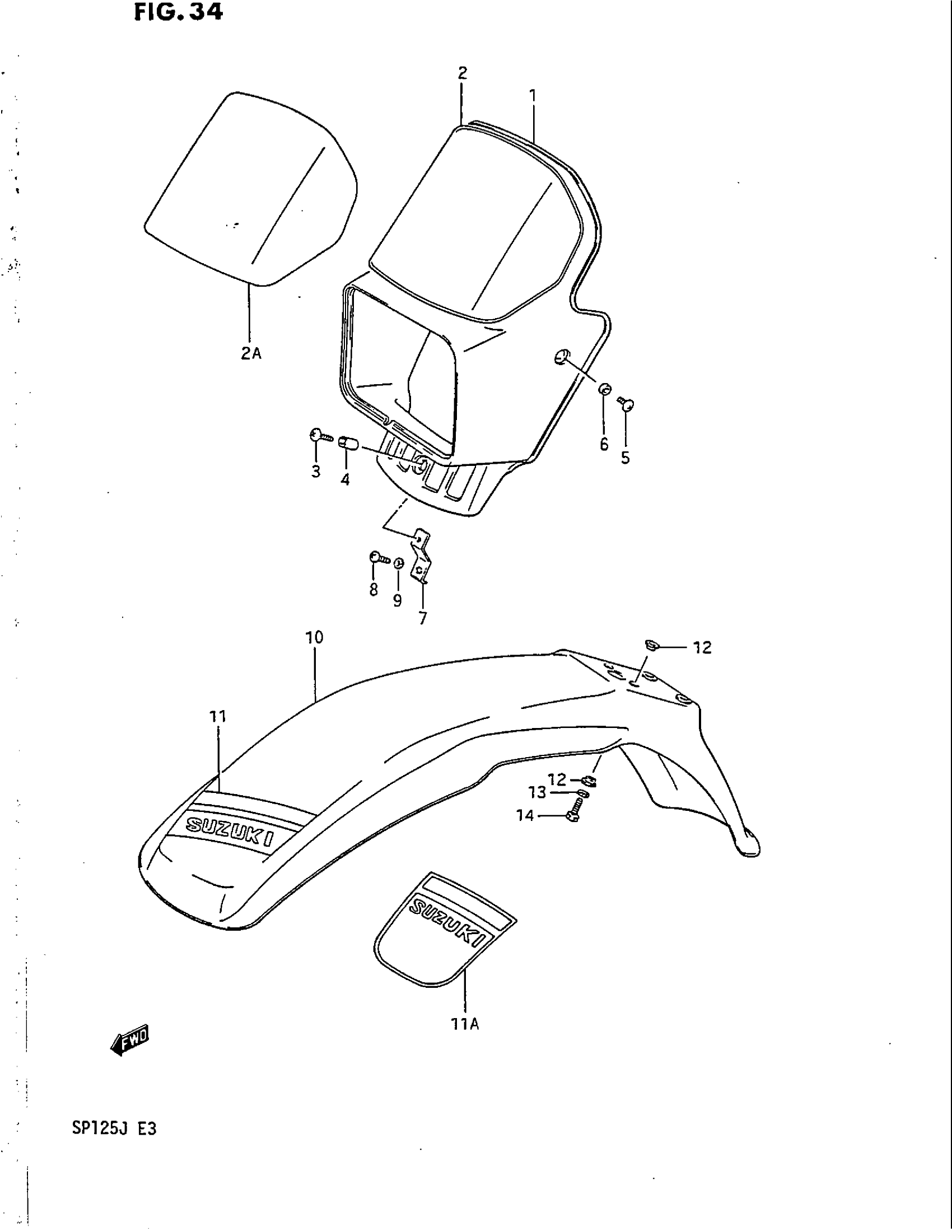

Suzuki SP125 (1988) HEADLAMP COVER - FRONT FENDER (MODEL H/J) Diagram

#

Description
Price

1

COVER, HEADLAMP (RED) | MODEL H

51810-44A40-14C

Unavailable

1

COVER, HEADLAMP (RED) | MODEL J; Includes Item(s) 2 - 2A

51810-42A20-14C

Unavailable

2

TAPE SET | MODEL H

68250-42A10-71Z

Unavailable

2A

TAPE SET (WHITE) | MODEL J

68250-42A20-064

Unavailable

3

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

4

SPACER (6.1X8X12) This part replaces 09180-06035.

09180-06249

$2.10

5

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

6

SPACER (6.1X8X3.5) This part replaces 09180-06098.

09180-06245

$2.11

7

BRACE, HOUSING LOWER

51814-44A00

$5.50

8

SCREW This part replaces 02112-06128.

02112-06127

$1.84

9

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

10

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 53110-44A50-14C.

53111-44A00-13L

Unavailable

10

FENDER, FRONT (RED) | MODEL J; Includes Item(s) 11 - 11A

53110-44A80-14C

Unavailable

11

TAPE SET | MODEL H

68150-42A00-9DH

Unavailable

11A

TAPE SET | MODEL J

68150-14A00-9UG

Unavailable

12

WASHER (6.3X16X1)

09169-06053

$1.49

13

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

14

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97
