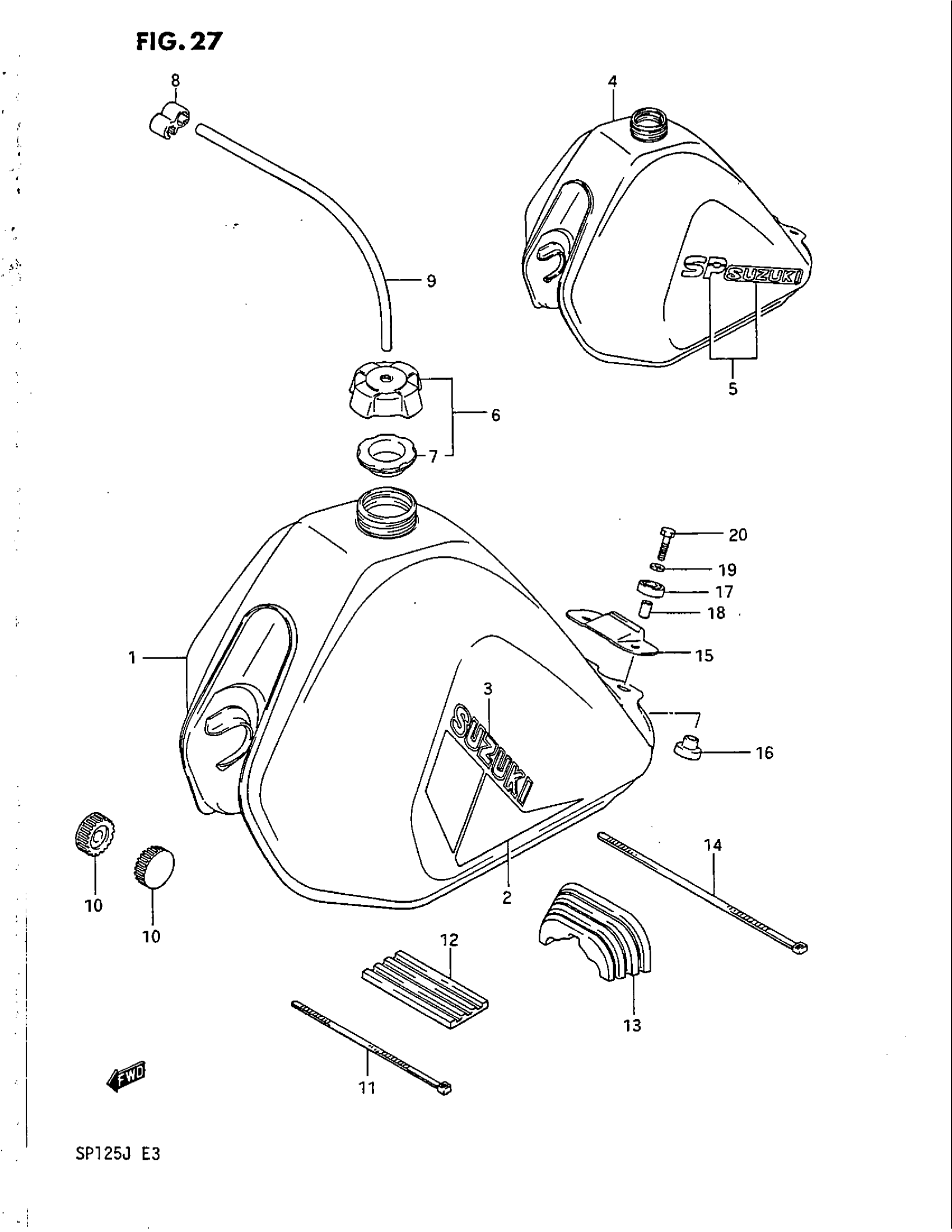

Suzuki SP125 (1988) FUEL TANK (MODEL G/H) Diagram

#

Description
Price

1

TANK,FUEL | MODEL G; Includes Item(s) 2 - 3 This part replaces 44100-44A10-14C.

44110-44A05-YD8

Unavailable

2

TAPE SET | MODEL G

68110-44A20-7CL

Unavailable

3

EMBLEM (WHITE) | MODEL G

68111-46700-064

$15.42

4

TANK,FUEL | MODEL H; Includes Item(s) 5 This part replaces 44100-44A50-14C.

44110-44A05-YD8

Unavailable

5

TAPE SET | MODEL H

68110-42A20-9DH

Unavailable

6

CAP, FUEL TANK | Includes Item(s) 7

44200-01890

Unavailable

7

GASKET This part replaces 44248-05210.

44248-05211

$3.76

8

CLAMP

44486-32101

$3.65

9

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

10

CUSHION, FRONT

09329-10016

$3.10

11

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

12

CUSHION, UPPER

44541-14500

$8.28

13

CUSHION

44542-14A00

$15.42

14

CLAMP

09407-25402

$4.64

15

PLATE, SEAT HOOK

45119-42A00

$6.55

16

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

17

CUSHION, REAR NO.2

09320-14013

$2.11

18

SPACER This part replaces 09180-06072.

09180-06271

$2.35

19

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

20

BOLT This part replaces 01107-06306.

01500-0630A

$2.19
