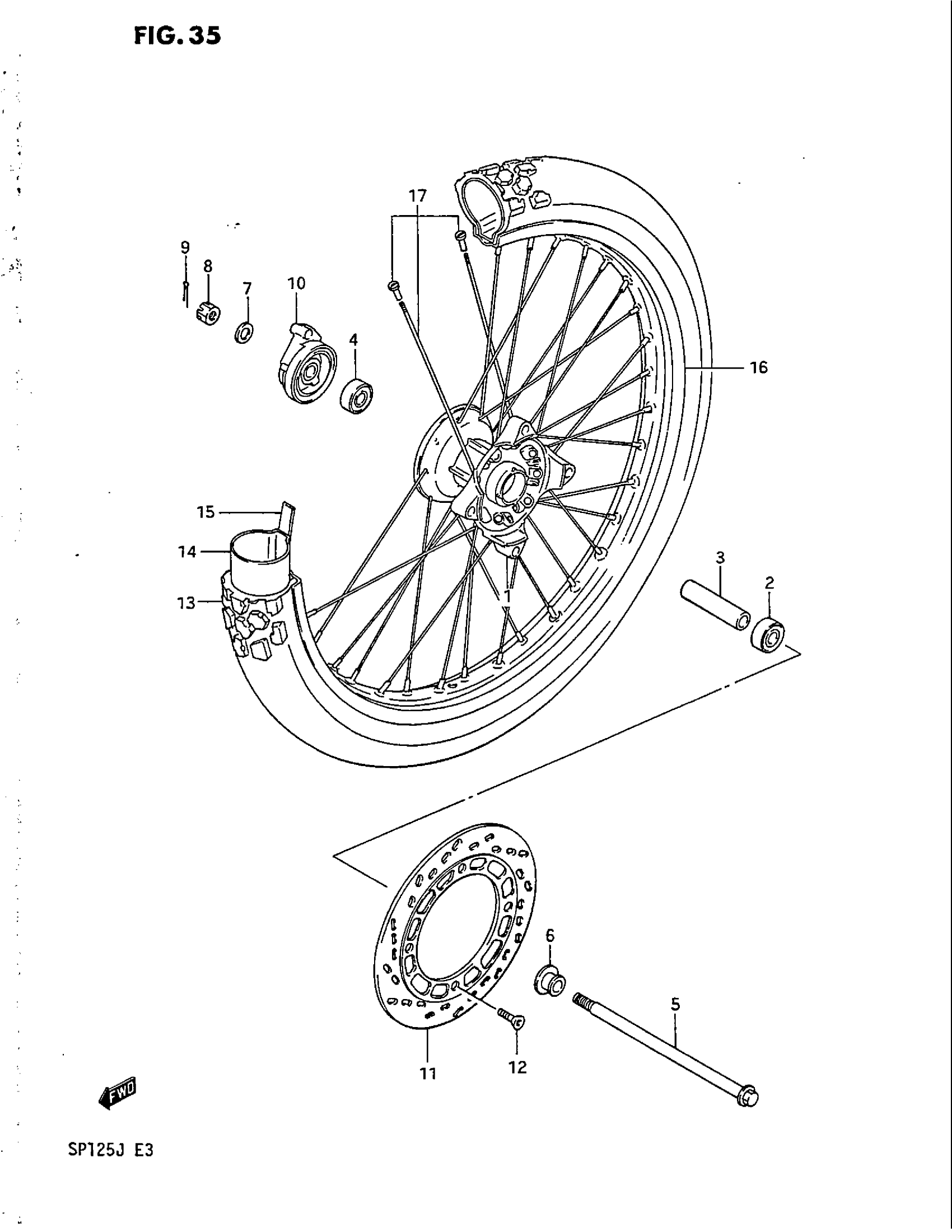

Suzuki SP125 (1988) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL (BLACK) This part replaces 54111-44A00.

54111-44A01

Unavailable

2

BEARING | MODEL G/H This part replaces 08123-62017.

08133-62017

$18.47

2

BEARING, LH | MODEL J

08133-62017

$18.47

3

SPACER (12.5X19X60.50) This part replaces 09180-12109.

09180-12146

$13.61

4

BEARING This part replaces 08113-62017.

08113-6201B

$10.15

5

AXLE, FRONT This part replaces 54711-44A00.

54711-44A01

$37.83

6

SPACER, FR AXLE This part replaces 54740-05211.

54740-02B40

$15.68

7

WASHER This part replaces 08322-11128.

08322-01127

$1.84

8

NUT This part replaces 08314-31128.

08314-3112A

$2.41

9

PIN This part replaces 04111-30308.

04111-3030A

$1.49

10

BOX ASSY,SPEEDO This part replaces 54600-01A00.

54600-01A01

$78.92

11

DISC, FRONT BRAKE This part replaces 59221-13A00.

59221-13A01

$319.20

12

BOLT This part replaces 59421-03A01.

09106-08155

$3.76

13

NO DESCRIPTION AVAILABLE This part replaces 55100-44A00.

55100-01A50

Unavailable

14

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

15

PROTECTOR, INNER TUBE This part replaces 55261-16510.

55261-14540

$3.83

16

NO DESCRIPTION AVAILABLE | NIPPLE HOLE 6.3 This part replaces 55311-44A02.

55311-01A31

Unavailable

16

NO DESCRIPTION AVAILABLE | NIPPLE HOLE 7.0 This part replaces 55311-44A03.

55311-44A04

Unavailable

17

SPOKE SET, FRONT WHEEL | NIPPLE OD:5.8 This part replaces 55320-44A00.

55320-42A00

$64.68

17

SPOKE SET, FRONT WHEEL | NIPPLE OD:6.5

55320-44A01

Unavailable
