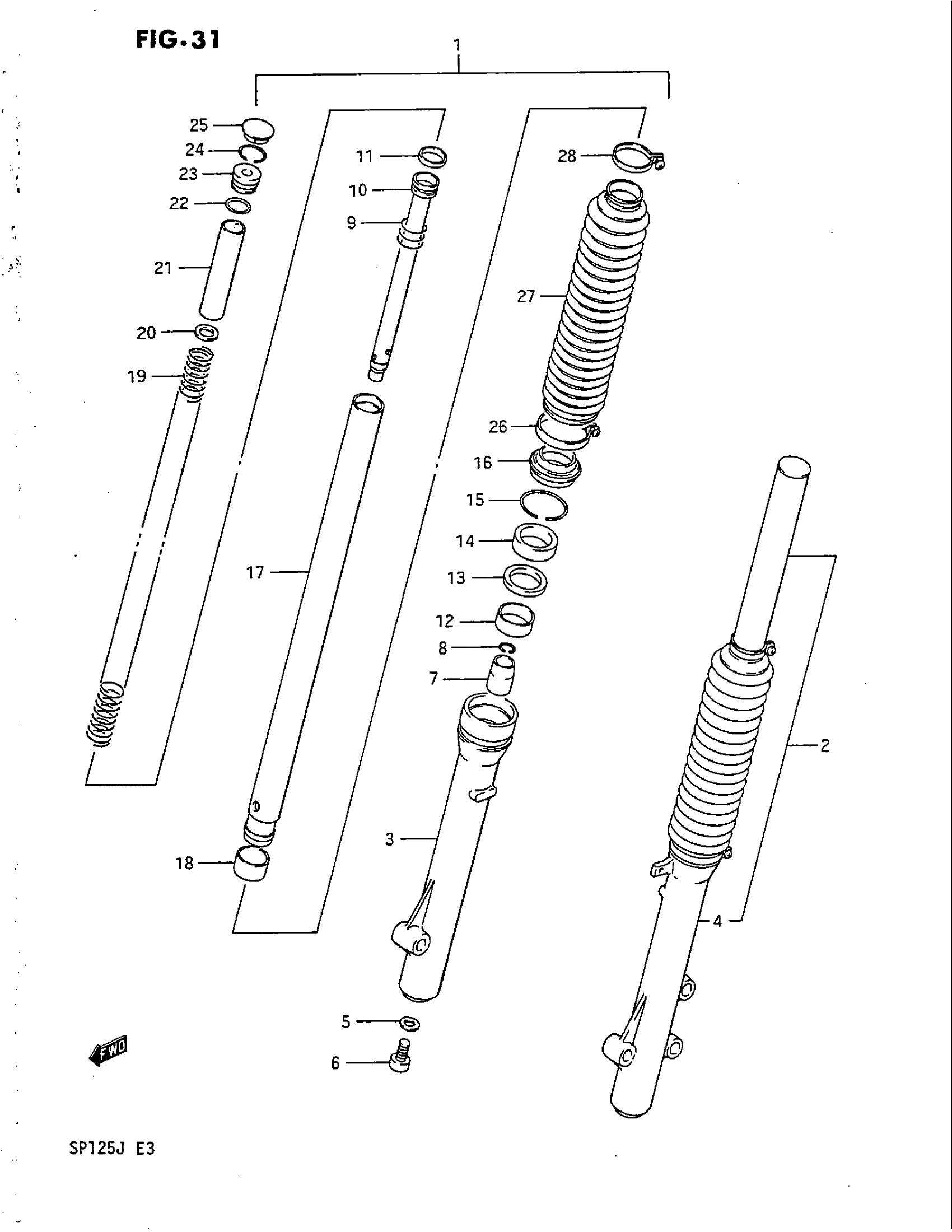

Suzuki SP125 (1988) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-44A00

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 25

51104-44A00

Unavailable

3

TUBE, OUTER RH

51131-01A01

Unavailable

4

TUBE, OUTER LH

51141-01A01

Unavailable

5

WASHER

51148-36011

$3.56

6

BOLT

51147-48130

$4.34

7

PIECE, OIL LOCK

51195-01A30

Unavailable

8

RING, STOPPER

51169-01A30

Unavailable

9

SPRING, REBOUND

51177-01A00

Unavailable

10

CYLINDER

51146-44A00

Unavailable

11

RING, PISTON

51196-45200

$8.42

12

BUSH, GUIDE

51152-33300

$15.04

13

SPACER, SEAL This part replaces 51168-01A30.

51168-30B00

$6.31

14

SEAL, OIL This part replaces 51153-20520.

51153-19D10

$22.96

15

RING, STOPPER This part replaces 51156-31231.

51156-01A00

$4.34

16

DUST SEAL

51173-01A00

$17.68

17

TUBE, INNER

51110-01A30

Unavailable

18

PISTON

51121-33300

$25.33

19

SPRING

51171-44A00

Unavailable

20

GUIDE, SPRING

51192-20510

Unavailable

21

SPACER

51176-44A00

Unavailable

22

O RING

51181-31030

$4.37

23

SEAT, SPRING

51175-47400

Unavailable

24

RING, STOPPER

51169-47400

$2.90

25

CAP

51189-31230

$9.37

26

BAND, LOWER

51576-01A00

Unavailable

27

BOOT | MODEL G/H This part replaces 51571-01A00-19F.

51571-01A01-34S

Unavailable

27

BOOT | MODEL J This part replaces 51571-01A00-34S.

51571-01A01-34S

Unavailable

28

BAND, UPPER

51575-01A00

$11.07
