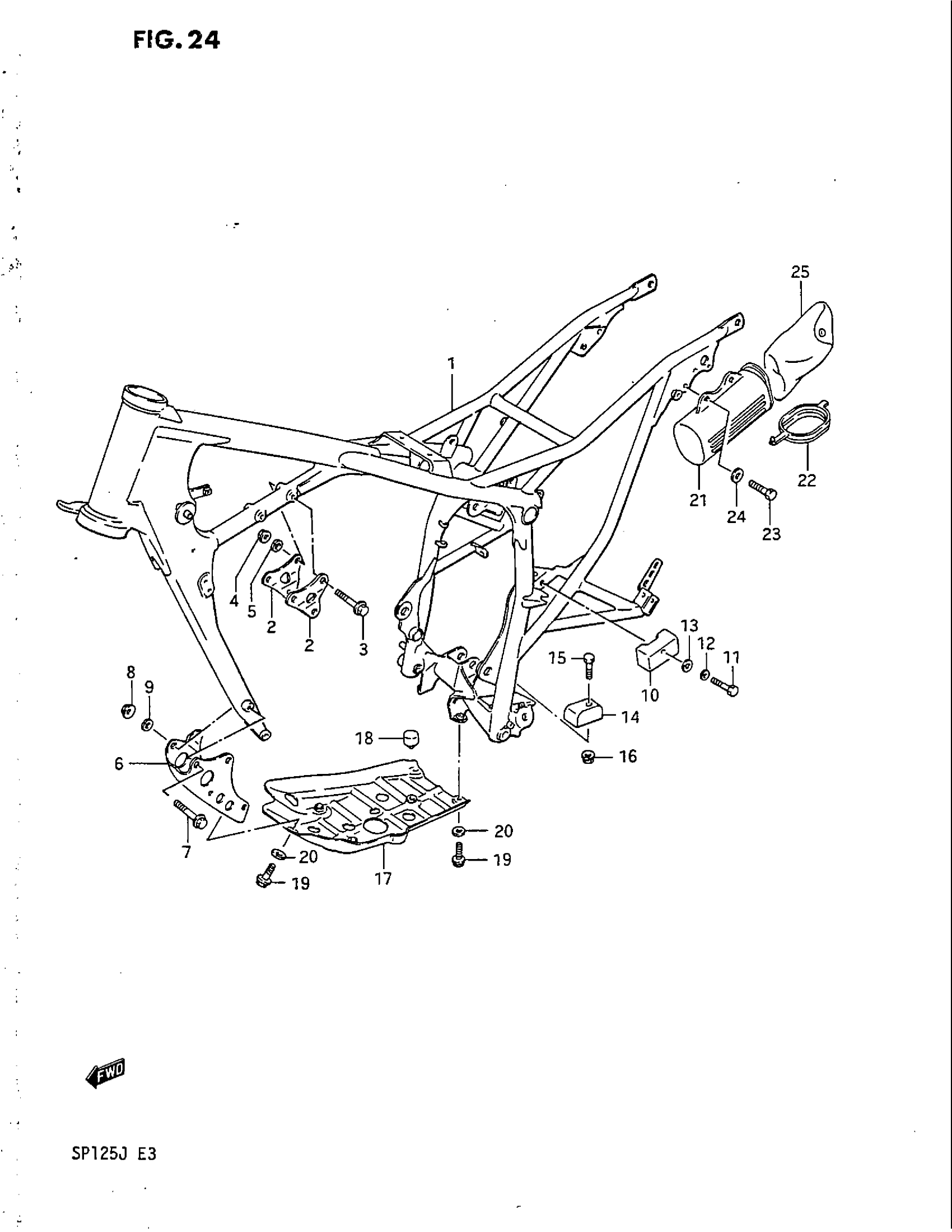

Suzuki SP125 (1988) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL G

41100-44A10-019

Unavailable

1

FRAME (BLACK) | MODEL H/J

41100-44A81-019

Unavailable

2

PLATE, UPPER (BLACK)

41991-44A00-291

Unavailable

3

BOLT (8X53) This part replaces 09103-08190.

09103-08332

$4.60

4

NUT This part replaces 08319-31085.

08319-3108A

$2.32

5

LOCK WASHER This part replaces 08321-31084.

08321-0108A

$1.84

6

PLATE, LOWER (BLACK)

41992-05200-019

Unavailable

7

BOLT

09103-08189

Unavailable

8

NUT This part replaces 08319-31085.

08319-3108A

$2.32

9

LOCK WASHER This part replaces 08321-31084.

08321-0108A

$1.84

10

GUIDE,CH CONTRO This part replaces 43911-44A00.

43911-44A01

$15.78

11

BOLT This part replaces 01107-06355.

01500-0635A

$2.19

12

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

13

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

14

GUIDE, CHAIN LOWER

43912-44A00

Unavailable

15

BOLT This part replaces 01107-06257.

01500-06257

$1.97

16

NUT This part replaces 08316-26068.

08316-2006A

$2.63

17

PROTECTOR, ENGINE (SILVER) This part replaces 42510-05202-13L.

42510-05203-13L

Unavailable

18

CUSHION

09329-12003

Unavailable

19

BOLT, OIL GALLERY This part replaces 07120-06125.

07120-0612B

$3.04

20

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

21

HOLDER, TOOL This part replaces 41551-38200.

41551-38201

$41.63

22

CAP

41552-37210

$9.78

23

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

24

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

25

TOOL ASSY This part replaces 09800-00301.

09800-21104

$34.10
