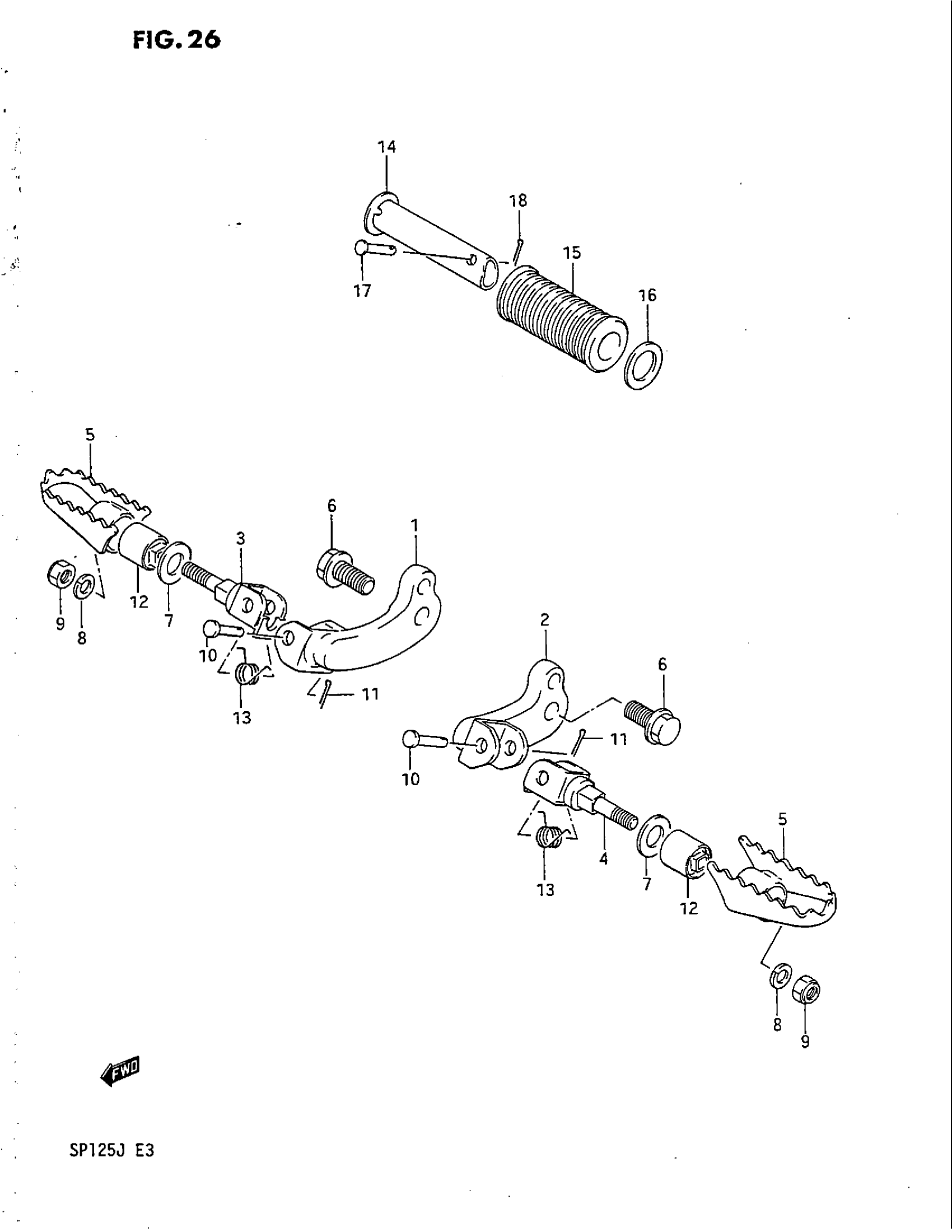

Suzuki SP125 (1988) FOOTREST Diagram

#

Description
Price

1

HOLDER, FOOTREST RH (BLACK) | MODEL G This part replaces 43510-44A01-019.

43510-44A03-019

Unavailable

1

HOLDER, FOOTREST RH (BLACK) | MODEL H/J

43510-44A03-019

Unavailable

2

HOLDER, FOOTREST LH (BLACK) | MODEL G This part replaces 43520-44A01-019.

43520-44A03-019

Unavailable

2

HOLDER, FOOTREST LH (BLACK) | MODEL H/J

43520-44A03-019

Unavailable

3

BRACKET, FRONT FOOTREST This part replaces 43530-44A01-019.

43530-44A02

$51.32

4

BRACKET, FRONT FOOTREST This part replaces 43540-44A01-019.

43530-44A02

$51.32

5

FOOTREST, FRONT (BLACK)

43550-44A01-019

$37.53

6

BOLT This part replaces 01517-12255.

01550-1225A

$4.05

7

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10087.

09160-10093

$2.35

8

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

9

NUT This part replaces 09159-10036.

09159-10027

$3.10

10

PIN

09200-08002

$2.05

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

BUSH

09319-10053

$38.40

13

SPRING, RH

09448-14037

$3.16

14

BAR, PILLION FOOTREST

43610-03001

$6.52

15

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$5.83

16

WASHER This part replaces 09160-19006.

09160-19024

$2.65

17

PIN

09200-06010

$1.72

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
