1988 Suzuki SP125 Crankshaft Diagram

← All diagrams

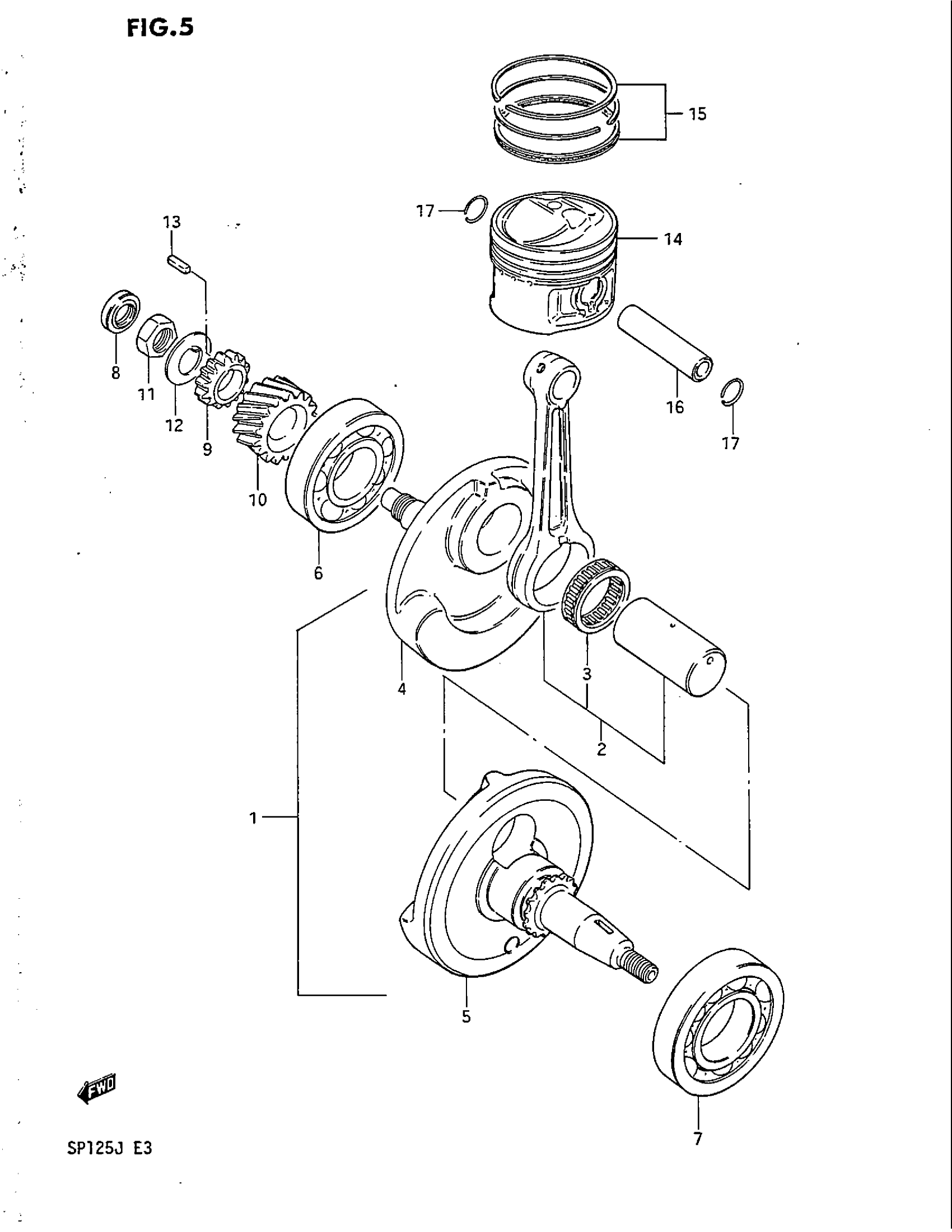

Find the part on the Crankshaft diagram for your 1988 Suzuki SP125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki SP125 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 5

12200-05224

1
Out of stock

2

ROD SET, CONNECTING This part replaces 12200-05851.

12105-05821

1
Out of stock

3

BEARING (28X36X15.8) This part replaces 09263-28022-0B0.

09263-28027-0B0

1
Out of stock

4

CRANKSHAFT, RH This part replaces 12221-05201.

12221-05202

1
Out of stock

5

.CRANKSHAFT LH This part replaces 12261-05202.

12261-05210

1
Out of stock

6

BEARING, RH

09262-28014

1
Out of stock

7

BEARING (35X72X17) This part replaces 09262-35034.

09262-35038

1
Out of stock

8

OIL SEAL (12X21X7) This part replaces 09282-12001.

09282-12009

1
Out of stock

9

GEAR, OIL PUMP DRIVE (NT:15) This part replaces 16321-05200.

16321-05201

1
Out of stock

10

GEAR, PRIMARY DRIVE (NT:17) This part replaces 21111-05200.

21111-05200-0C0

1
Out of stock

11

NUT

09140-16019

1
Out of stock

12

LOCK WASHER

09166-16012

1
Out of stock

13

KEY, GEAR

09421-04004

1
Out of stock

14

PISTON This part replaces 12111-05202.

12111-05202-0F0

1
Out of stock

14

PISTON SET (OS:0.5) | OPT This part replaces 12111-05202-050.

12100-05200-050

1
Out of stock

14

PISTON SET (OS:1.0) | OPT This part replaces 12111-05202-100.

12100-05200-100

1
Out of stock

15

RING SET, PISTON This part replaces 12140-05211.

12140-01410

1
Out of stock

15

RING SET, PISTON (OS:0.5) | OPT This part replaces 12140-05211-050.

12140-01410-050

1
Out of stock

15

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-05211-100.

12140-01410-100

1
Out of stock

16

PIN, PISTON This part replaces 12151-05220.

12151-05220-0A0

1
Out of stock

17

RING

09381-14001

2
Out of stock
