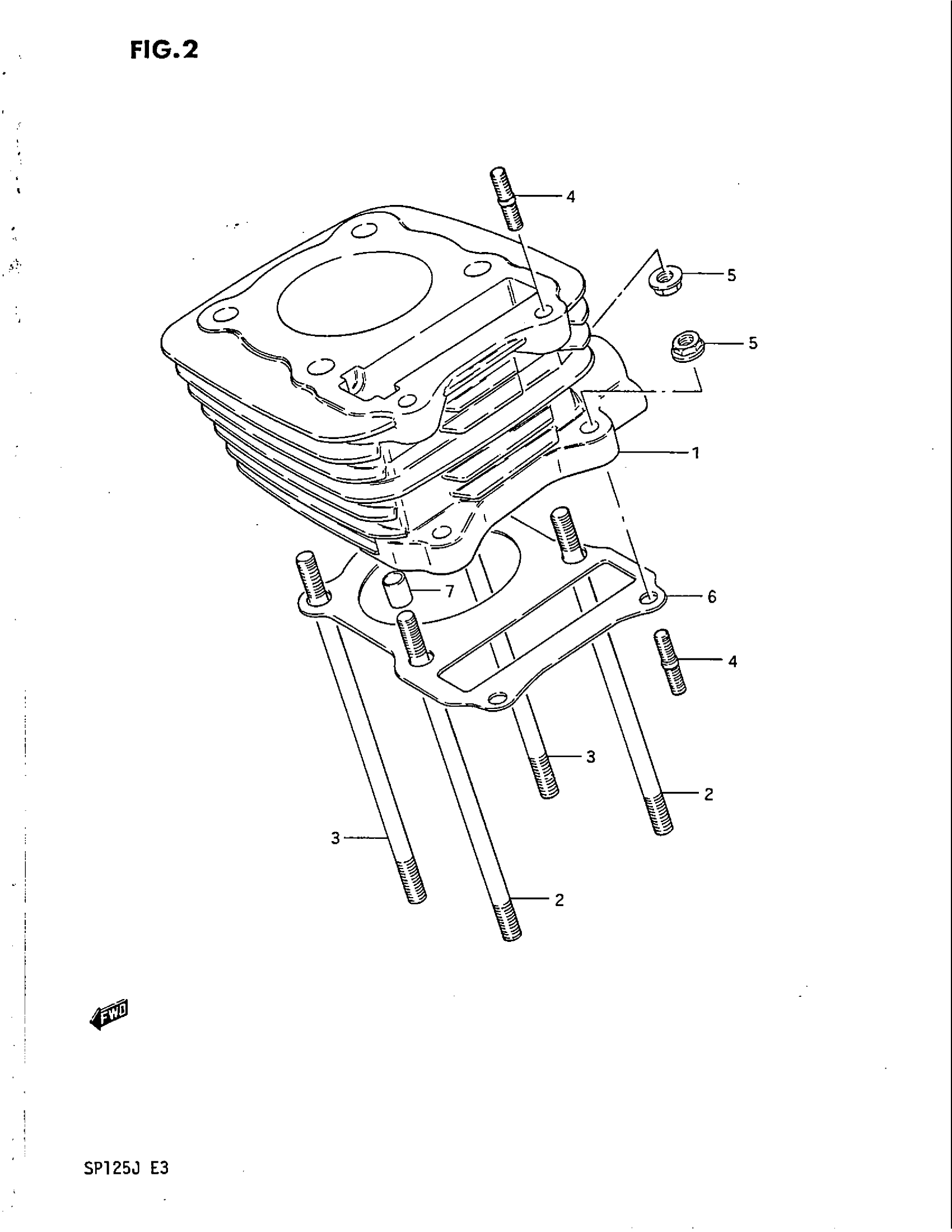

Suzuki SP125 (1988) CYLINDER Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 11210-05211.

11210-05211-0F0

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 11210-44A00.

11210-05211-0F0

Unavailable

2

STUD BOLT (8X150)

09108-08062

$7.57

3

STUD BOLT (8X155)

09108-08089

$7.10

4

STUD BOLT This part replaces 01421-06255.

01421-0625A

$2.07

5

NUT This part replaces 08316-16064.

08316-1006B

$2.57

6

.GASKET, CYLINDER This part replaces 11241-05200.

11241-05311

$5.53

7

PIN

04211-11149

$1.82
