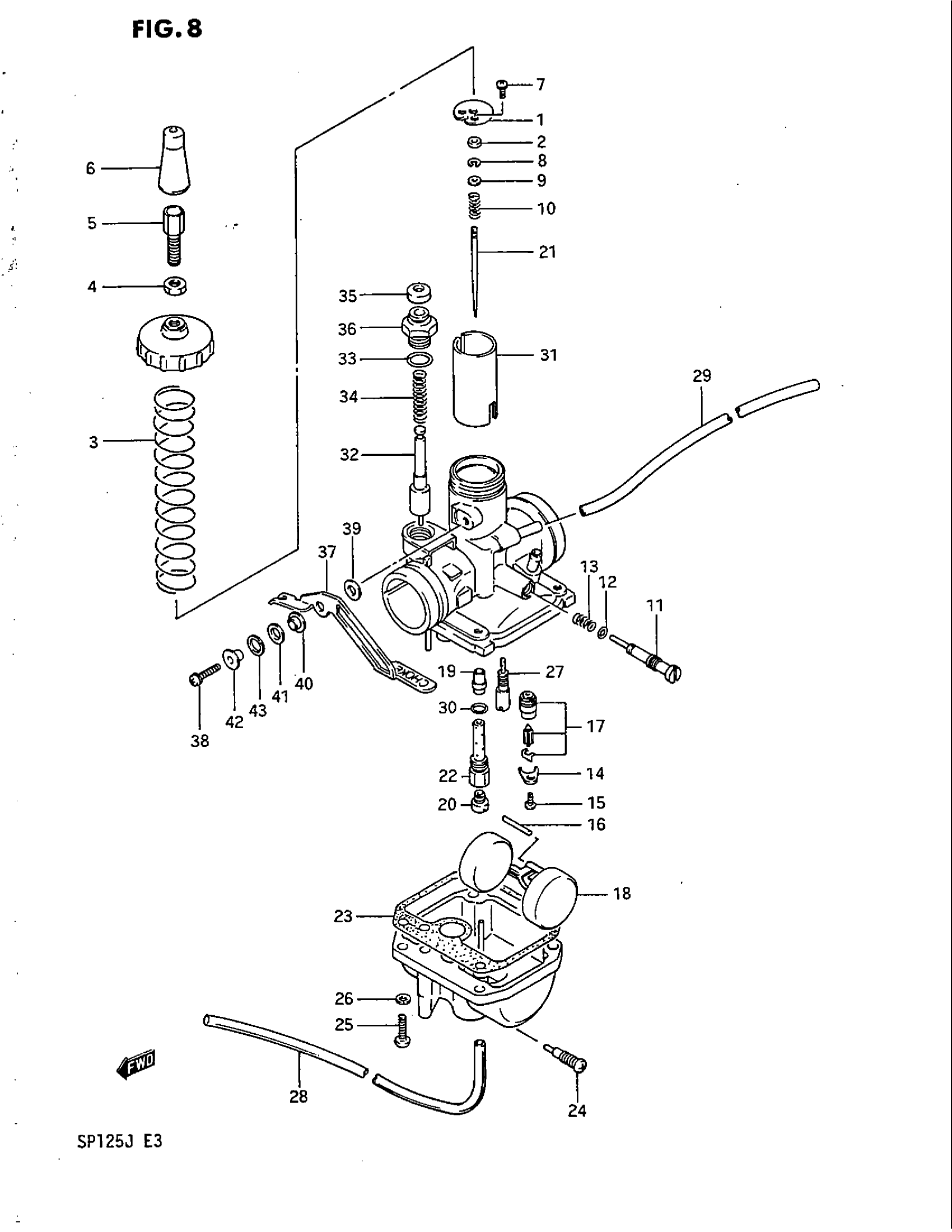

Suzuki SP125 (1988) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 43

13200-44A10

Unavailable

1

PLATE

13373-05230

$7.37

2

RING

13387-47010

$7.22

3

SPRING

13573-05230

Unavailable

4

NUT

13661-16600

$4.64

5

ADJUSTER, CABLE

13577-48110

$8.30

6

CAP

13681-16600

$3.77

7

SCREW

13601-05230

$3.37

8

E RING

13394-10010

$5.45

9

PACKING

13382-47010

$3.56

10

SPRING

13388-47010

$6.91

11

ADJUSTER

13267-36600

$12.17

12

O RING

13295-33010

$4.48

13

SPRING

13268-35010

$4.48

14

PLATE

13373-46710

$6.17

15

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

16

.PIN, FLOAT

13254-01010

$3.62

17

VALVE ASSY, NEEDLE This part replaces 13370-43250.

13370-05320

$62.80

18

FLOAT

13250-05230

$26.91

19

JET, NEEDLE (N-9)

09494-00507

Unavailable

20

JET, MAIN (95)

09491-95005

$11.55

21

NEEDLE, JET (5L18-1)

13383-44A10

Unavailable

22

PIPE

13385-44A10

Unavailable

23

GASKET

13251-05230

Unavailable

24

SCREW, DRAIN

13247-02340

$4.99

25

SCREW This part replaces 02112-04167.

02112-0416A

$1.49

26

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

27

JET, PILOT (22.5)

09492-22008

$14.85

28

.HOSE (3X7X600) | L:500->400 This part replaces 13684-18900.

09355-30001-600

$8.56

29

HOSE,5X10X600 | L:550->275 This part replaces 13684-22A00.

44421-13ER0

$10.06

30

.O RING This part replaces 13246-43010.

13246-43011

$4.34

31

VALVE, PISTON

13551-05230

Unavailable

32

PLUNGER ASSY

13411-05320

$26.80

33

O RING

13278-02330

$2.82

34

SPRING

13417-47070

Unavailable

35

.CAP, STARTER VALVE

13682-31210

$4.37

36

HOLDER

13418-05320

Unavailable

37

LEVER

13413-05230

Unavailable

38

SCREW This part replaces 13601-22A00.

02112-3416B

$2.19

39

PLATE

13421-05320

$3.12

40

RING

13432-05320

$4.25

41

WASHER

13589-47070

$1.98

42

RING

13424-05320

$5.21

43

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84
