1983 Suzuki SP125 Stand - Rear Brake Diagram

← All diagrams

Find the part on the Stand - Rear Brake diagram for your 1983 Suzuki SP125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

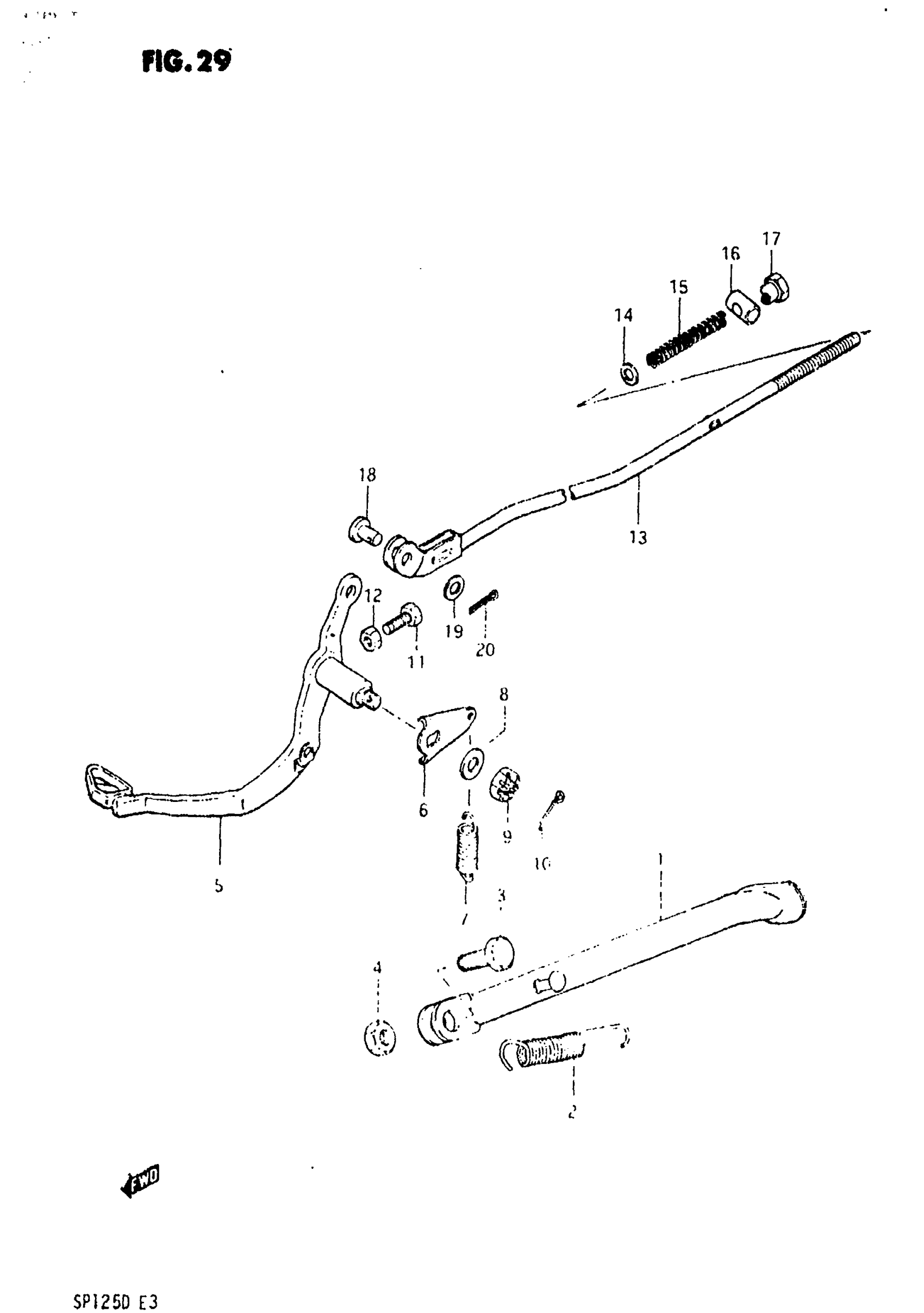

1983 Suzuki SP125 Stand - Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND,PROP This part replaces 42310-05200.

42310-05280-019

1
Out of stock

2

SPRING

09443-17007

1

$3.86

In stock

3

BOLT (10X30)

09100-10067

1
Out of stock

4

1

$2.35

In stock

5

PEDAL, BRAKE

43110-05201

1
Out of stock

6

ARM, BRAKE PEDAL

43128-38200

1

$3.80

In stock

7

SPRING

09443-14002

1

$2.56

In stock

8

WASHER

08211-08202

1

$2.50

In stock

9

1

$3.30

In stock

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

11

BOLT (6x27)

09100-06009

1

$2.07

In stock

12

1

$1.82

In stock

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 15 This part replaces 43300-05200.

43300-05X50

1
Out of stock

14

1

$1.84

In stock

15

SPRING

09440-09004

1
Out of stock

16

.PIN (13X18) | MODEL Z; Includes Item(s) 16 - 20 This part replaces 09209-13003.

09209-13018

1
Out of stock

16

.PIN (13X18) | MODEL D This part replaces 09209-13005.

09209-13018

1
Out of stock

17

.NUT | MODEL Z This part replaces 09150-06001.

09150-06010

1
Out of stock

17

.NUT | MODEL D This part replaces 09150-06009.

09150-06010

1
Out of stock

18

PIN

09200-06039

1
Out of stock

19

1

$1.84

In stock

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock
