1983 Suzuki SP125 Cushion Lever Diagram

← All diagrams

Find the part on the Cushion Lever diagram for your 1983 Suzuki SP125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

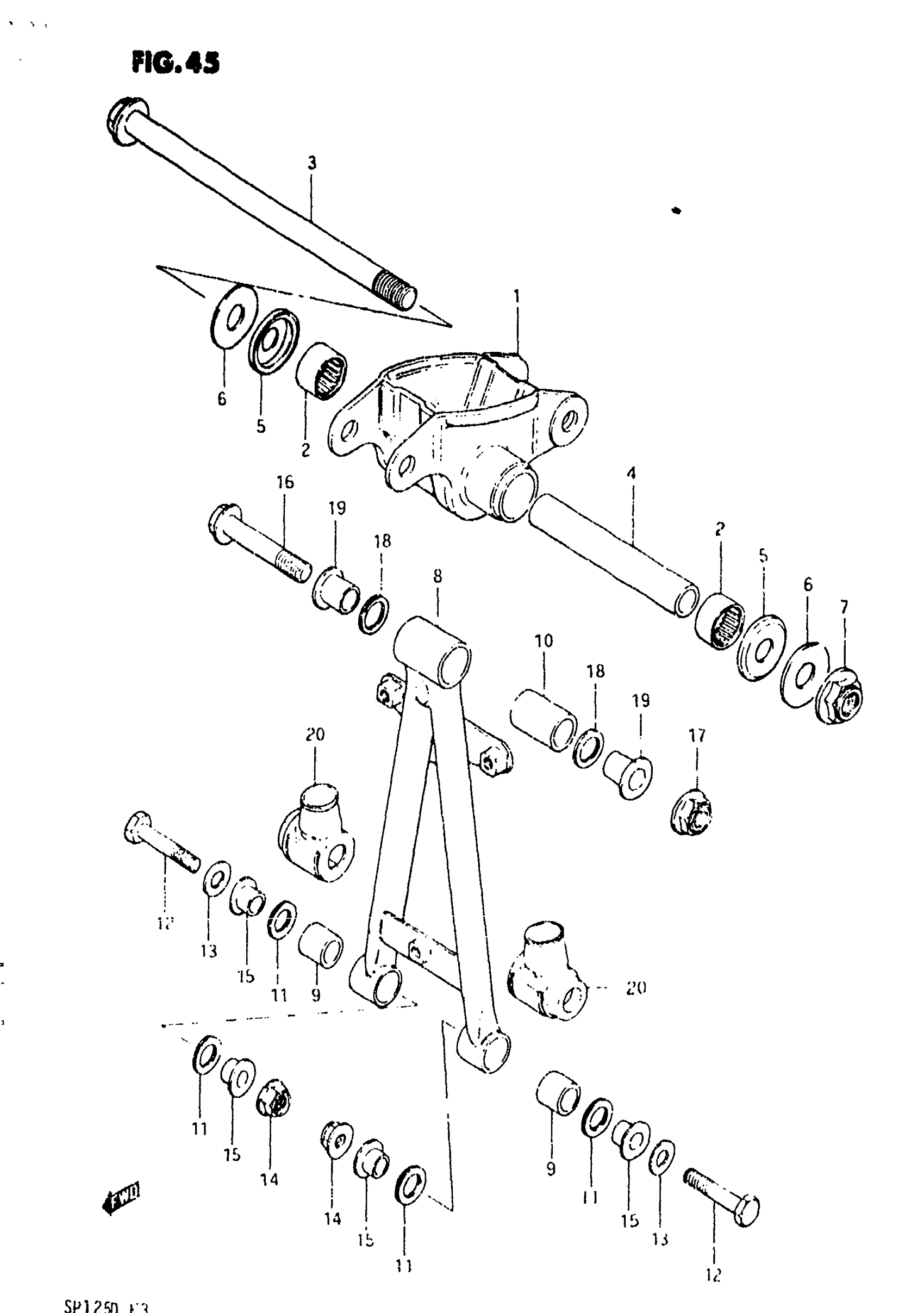

1983 Suzuki SP125 Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, CUSHION | MODEL Z This part replaces 62600-05810.

62600-05811

1
Out of stock

1

LEVER SET, CUSHION | MODEL D; Includes Item(s) 2

62600-05811

1
Out of stock

2

BEARING

09263-17018

2
Out of stock

3

SHAFT This part replaces 62621-14104.

62621-14105

1
Out of stock

4

SPACER | MODEL Z This part replaces 62623-38200.

62623-38201

1
Out of stock

4

SPACER | MODEL D

62623-38201

1
Out of stock

5

DUST SEAL

62624-38200

2
Out of stock

6

THRUST WASHER

08211-12301

2
Out of stock

7

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

8

NO DESCRIPTION AVAILABLE | Includes Item(s) 9 - 10 This part replaces 62600-05820.

62600-05821

1
Out of stock

9

BUSH, LOWER This part replaces 62642-20400.

62642-20900

2
Out of stock

10

BUSH, FRONT (15X20X31) This part replaces 62682-38200.

62682-04701

1
Out of stock

11

DUST SEAL, LOWER

62647-20400

4
Out of stock

12

BOLT, LOWER

62313-38200

2
Out of stock

13

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

14

NUT This part replaces 08319-31088.

08319-3108A

2
Out of stock

15

SPACER, LOWER

62316-14100

4
Out of stock

16

BOLT, UPPER

09103-10058

1
Out of stock

17

NUT This part replaces 08319-31108.

08319-31107

1
Out of stock

18

DUST SEAL, UPPER

62683-20400

2
Out of stock

19

SPACER, UPPER

62316-38200

2
Out of stock

20

BOOTS, LOWER

62689-05200

2
Out of stock
