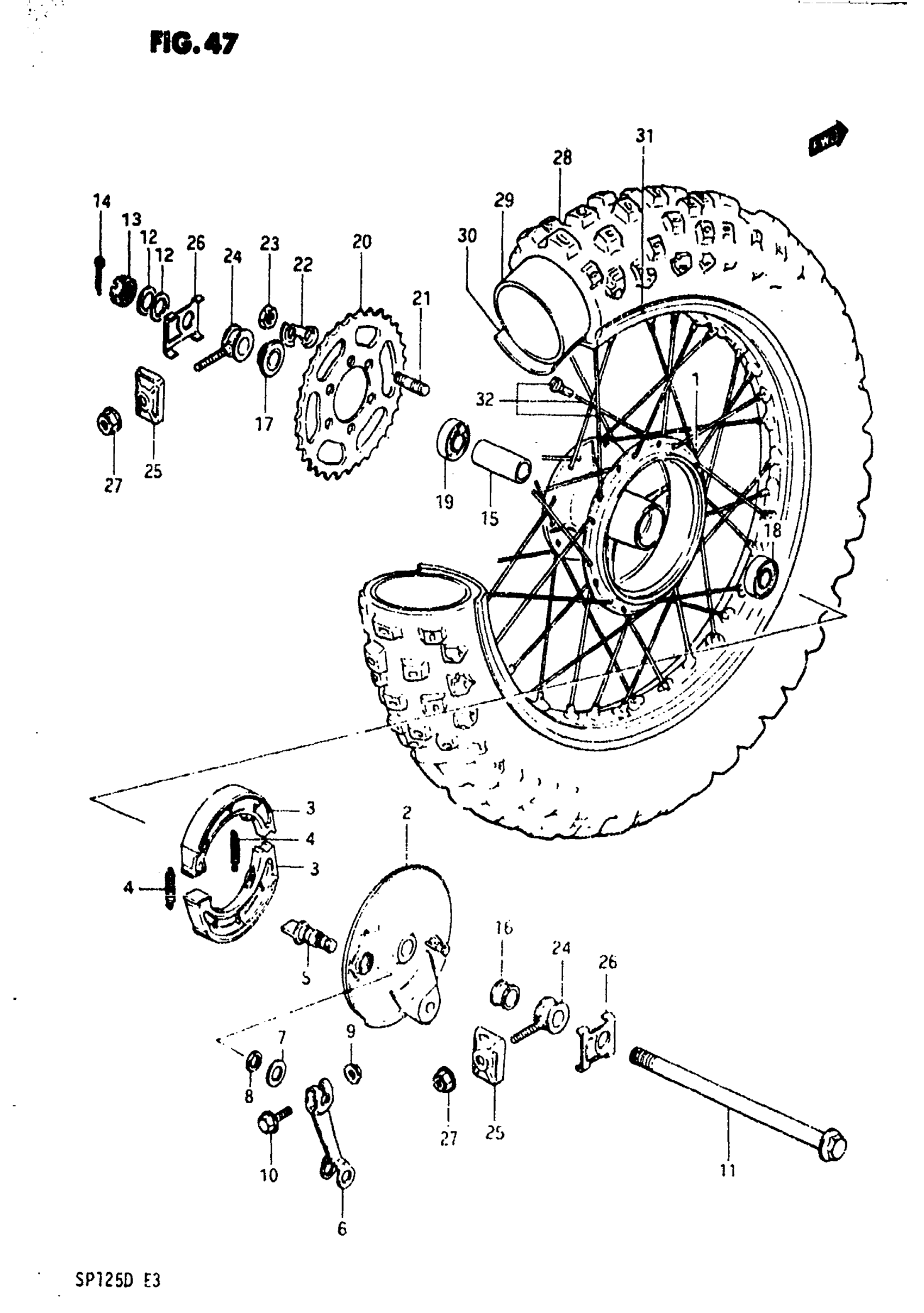

Suzuki SP125 (1983) REAR WHEEL Diagram

NO DESCRIPTION AVAILABLE This part replaces 64110-05200.

64110-05201

Unavailable

PANEL, REAR HUB

64210-48000

Unavailable

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

Unavailable

SPRING This part replaces 09443-07001.

09443-07025

$2.08

CAM, BRAKE This part replaces 54441-29303.

54441-29305

$20.02

LEVER, BRAKE CAM

64451-30501

$20.06

WASHER This part replaces 09160-14001.

09160-14055

$2.39

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

NUT This part replaces 08316-16068.

08319-31067

$2.03

BOLT This part replaces 01517-06408.

01550-06407

$2.69

AXLE,REAR This part replaces 64711-05200.

64711-05201

$50.92

WASHER This part replaces 08322-21148.

08322-01147

$1.91

NUT

09141-14001

$4.60

PIN This part replaces 04111-30308.

04111-3030A

$1.49

SPACER, HUB BEARING

09180-15013

$13.53

SPACER, AXLE RH

64741-05200

Unavailable

SPACER, REAR AXLE LH This part replaces 64750-05201.

64750-05202

Unavailable

BEARING, RH

08143-62027

$16.01

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

SPROCKET, REAR (NT:47)

64511-05210

Unavailable

BOLT

09108-08100

Unavailable

WASHER

09169-08013

$2.23

NUT This part replaces 08310-12088.

08310-00087

$2.13

ADJUSTER, CHAIN

61410-05200

Unavailable

PLATE, CHAIN ADJUSTER

61421-38200

$5.21

GUIPE WASHER

64712-05200

Unavailable

NUT This part replaces 08319-31088.

08319-3108A

$2.32

TIRE, REAR (4.10-18) This part replaces 65100-05211.

65100-48500

Unavailable

TUBE ASSY, WHEEL INNER This part replaces 65200-18010.

65200-44AA0

$53.43

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

$4.39

RIM, WHEEL (185x18) | MODEL Z

65311-48500

Unavailable

RIM, REAR WHEEL (185X18) GOLD | MODEL D This part replaces 65311-05220.

65311-44A03

Unavailable

SPOKE ASSY, REAR

65320-28021

$57.37
