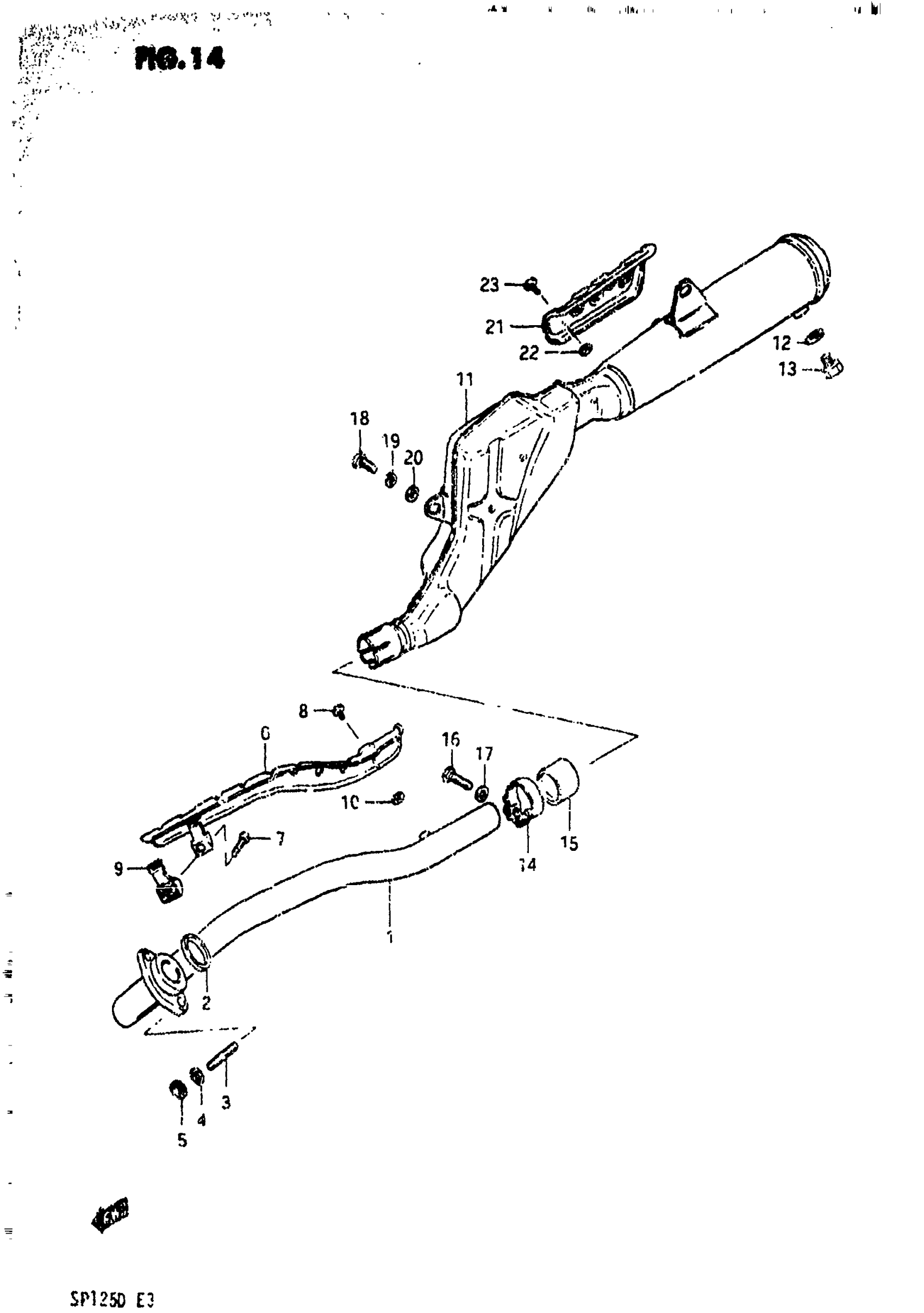

Suzuki SP125 (1983) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-05200

Unavailable

2

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$7.22

3

STUD BOLT This part replaces 01421-06205.

01421-0620A

$1.91

4

LOCK WASHER This part replaces 08321-21065.

08321-0106A

$1.84

5

NUT This part replaces 08310-11065.

08310-0006A

$1.84

6

COVER

14180-05200

Unavailable

7

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

8

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06105.

02142-0610A

$1.49

9

CLAMP

14185-05200

Unavailable

10

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

11

NO DESCRIPTION AVAILABLE | Includes Item(s) 12 - 13 This part replaces 14301-05210.

14301-05250-H01

Unavailable

12

GASKET

09168-12002

$1.59

13

PLUG

09247-12103

$2.84

14

CLAMP, MUFFLER This part replaces 14459-05200.

14459-44A00

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 14771-05200.

14771-05220

Unavailable

16

BOLT,8X25 This part replaces 09100-08193.

09100-08193-XC0

Unavailable

17

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

18

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

19

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

20

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

21

COVER

14781-05200

Unavailable

22

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

23

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06105.

02142-0610A

$1.49
