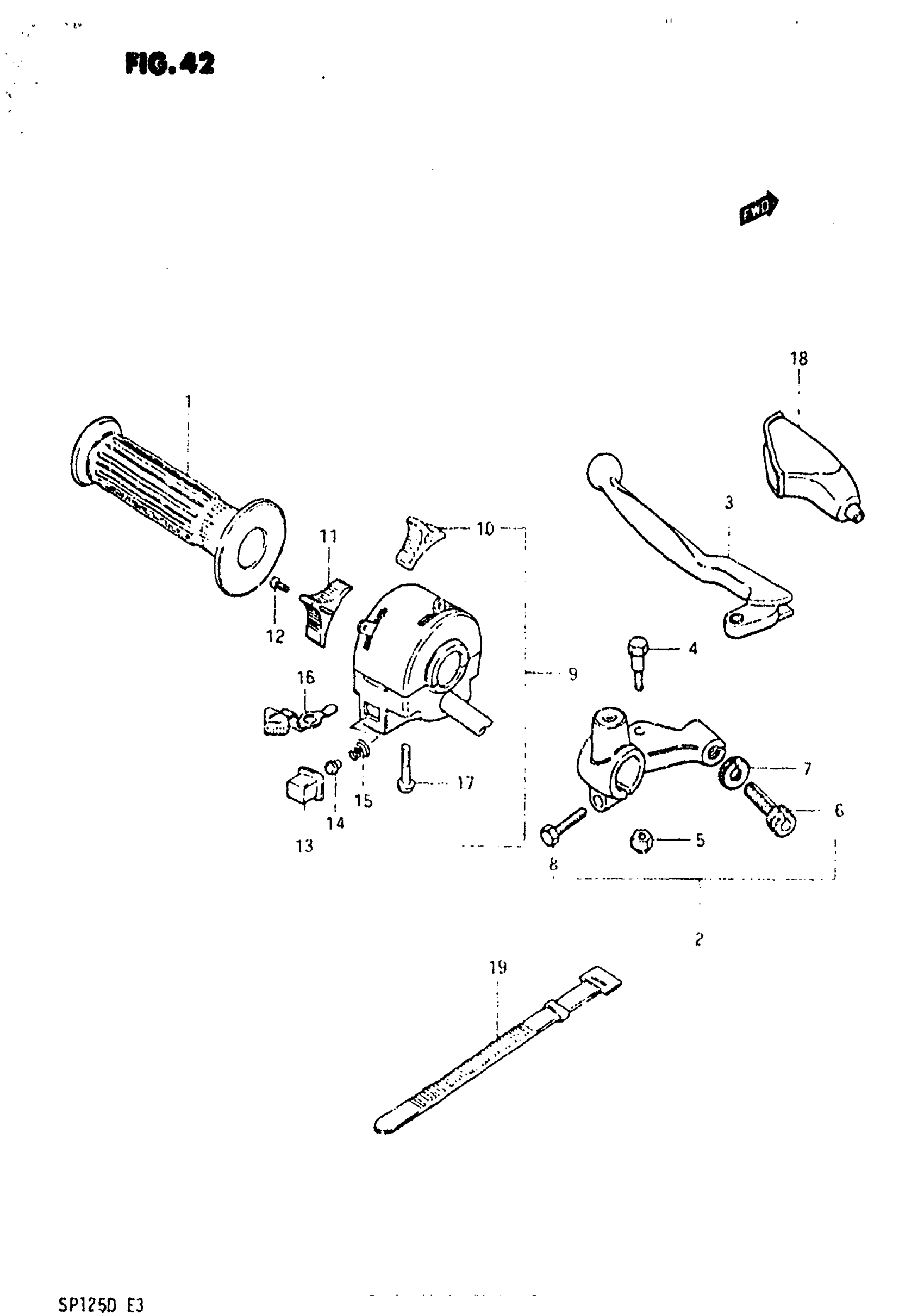

Suzuki SP125 (1983) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP,L This part replaces 57211-45020.

57211-45021

$11.44

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 8

57500-37200

Unavailable

3

LEVER, CLUTCH

57620-49101

Unavailable

4

BOLT This part replaces 57431-11011.

57431-11013

$6.31

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

ADJUSTER, CABLE

57441-11010

$5.62

7

NUT

57442-11010

$2.79

8

BOLT

57451-49100

Unavailable

9

SWITCH ASSY, HANDLE LH | Includes Item(s) 10 - 17

37400-38220

Unavailable

10

KNOB, LIGHTING

37414-45602

Unavailable

11

KNOB, DIMMER

37421-45012

$6.17

12

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

13

BUTTON, HORN

57371-45000

$4.52

14

CONTACT

57372-45000

$4.45

15

SPRING

57382-45000

$3.37

16

KNOB, TURN SIGNAL

37513-45011

$7.22

17

SCREW This part replaces 02112-05258.

02112-05257

$1.49

18

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.56

19

BAND (L:120)

09407-12402

$3.04
