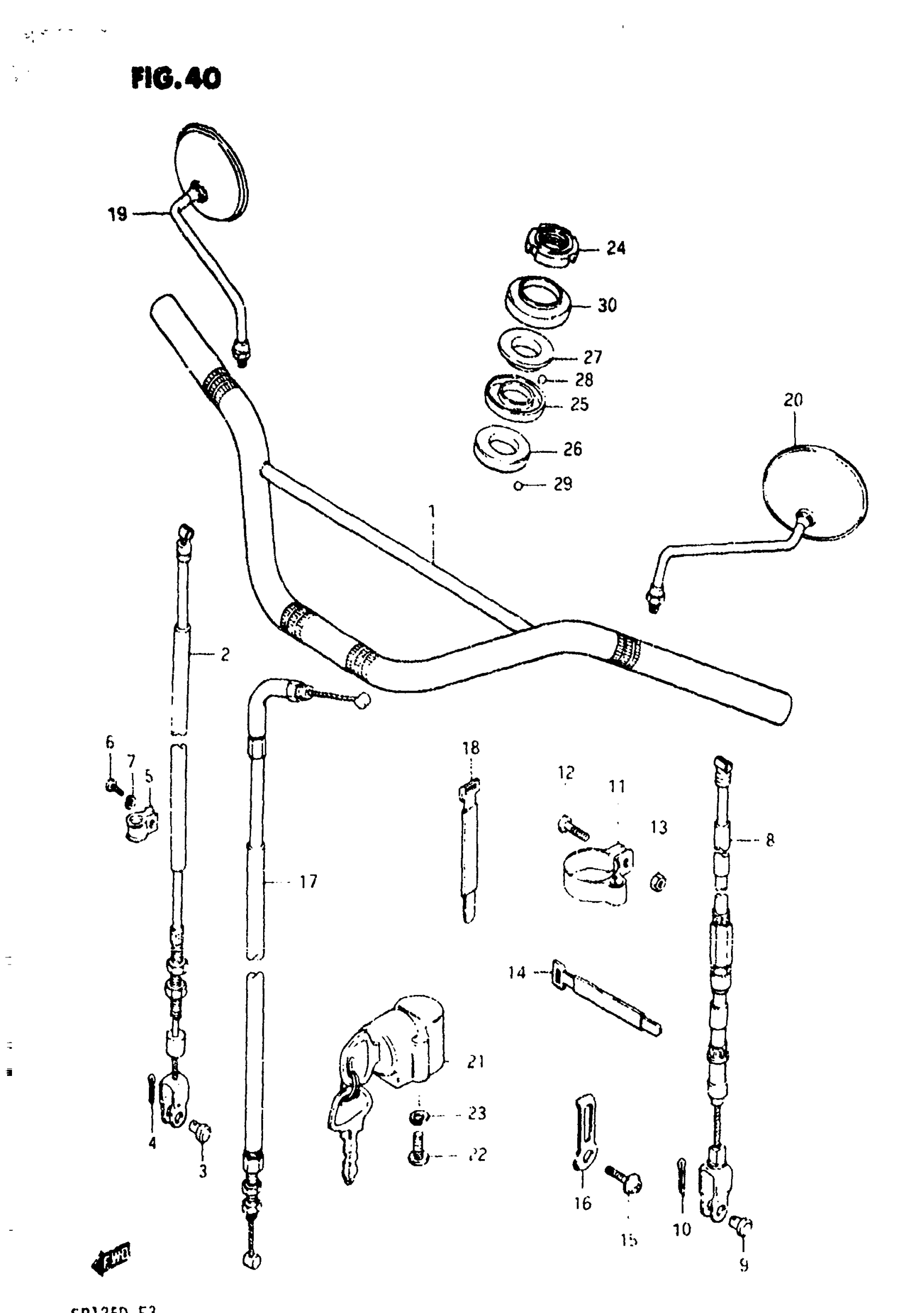

Suzuki SP125 (1983) HANDLEBAR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 56110-05221.

56110-05211-291

Unavailable

2

CABLE, FR BRAKE This part replaces 58110-05200.

58110-29303

$40.57

3

PIN

09200-05001

$1.65

4

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

5

CLAMP, FRONT BRAKE CABLE

58621-14201

$5.50

6

SCREW This part replaces 02112-06128.

02112-06127

$1.84

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

CABLE ASSY, CLUTCH | MODEL Z This part replaces 58200-05200.

58200-05201

Unavailable

8

CABLE ASSY, CLUTCH | MODEL D

58200-05201

Unavailable

9

PIN

09200-06011

Unavailable

10

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

11

CLAMP, CLUTCH CABLE This part replaces 58285-05350.

58285-05351

$3.42

12

SCREW This part replaces 02112-05165.

02112-05164

$2.63

13

NUT This part replaces 08310-22058.

08310-00057

$1.84

14

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

15

STOPPER, CL RLSE CAM SHAFT This part replaces 02152-06108.

02142-0610A

$1.49

16

CLAMP, NO.3 | MODEL Z This part replaces 58285-05200.

58285-05201

Unavailable

16

CLAMP, NO.3 | MODEL D

58285-05201

Unavailable

17

CABLE ASSY,THRO This part replaces 58300-05200.

58300-05201

Unavailable

18

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

19

MIRROR ASSY,RR This part replaces 56500-45012.

56500-45014

$64.82

20

MIRROR ASSY,RR This part replaces 56600-45012.

56600-45014

$64.82

21

LOCK ASSY, STEERING

51910-25311

$40.33

22

SCREW This part replaces 02112-05128.

02112-05127

$1.97

23

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

24

NUT, STEERING STEM

51631-28000

$17.37

25

RACE,STEERING INNER UPPER

51611-20002

$11.95

26

RACE, INNER LOWER

51611-33002

$13.81

27

RACE,STEERING OUTER UPPER

51621-28000

$11.95

28

STEEL BALL

06111-06003

$1.49

29

STEEL BALL

06111-08003

$1.49

30

DUST SEAL,STEERING UPPER

51643-25001

$4.43
