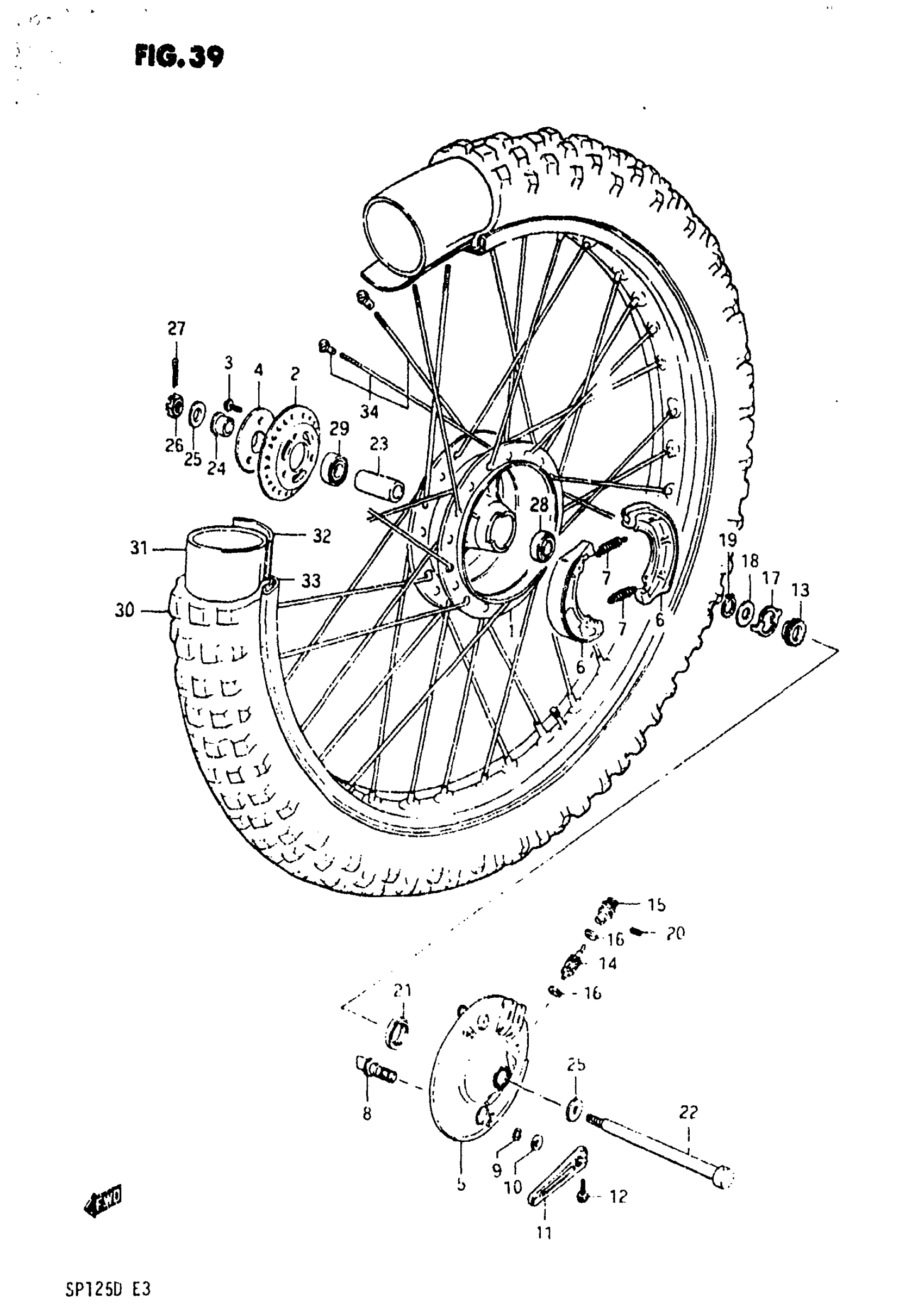

Suzuki SP125 (1983) FRONT WHEEL Diagram

#

Description
Price

1

HUB, WHEEL

54110-29300

Unavailable

2

HUB FLANGE, FRONT RH

54112-38200

Unavailable

3

BOLT This part replaces 01517-06168.

01550-06167

$2.30

4

RETAINER, HUB BEARING RH

54151-38200

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 54210-48501.

54210-48502

Unavailable

6

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

Unavailable

7

SPRING This part replaces 09443-07001.

09443-07025

$2.08

8

NO DESCRIPTION AVAILABLE This part replaces 54441-48501.

54441-48502

Unavailable

9

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

10

WASHER This part replaces 09160-14001.

09160-14055

$2.39

11

NO DESCRIPTION AVAILABLE This part replaces 54451-32400.

54451-32401

Unavailable

12

BOLT This part replaces 01517-06258.

01550-06257

$2.30

13

GEAR, SPEEDOMETER (NT:27)

54611-28402

Unavailable

14

PINION, SPEEDOMETER (NT:9)

54621-28401

Unavailable

15

BUSH

54632-01001

$12.80

16

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

17

DRIVER

54661-29300

$4.52

18

THRUST WASHER (18.5X24X1)

09160-18002

$2.38

19

CIRCLIP

08331-11189

Unavailable

20

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

21

OIL SEAL This part replaces 09285-43001.

09283-43004

$14.03

22

AXLE, FRONT This part replaces 54711-16503.

54711-16504

Unavailable

23

SPACER (12.5X19X52) This part replaces 09180-12041.

09180-12144

$10.30

24

SPACER (12.2x9x18.5)

54741-41100

$15.13

25

WASHER This part replaces 08322-11128.

08322-01127

$1.84

26

NUT This part replaces 08314-31128.

08314-3112A

$2.41

27

PIN This part replaces 04111-30308.

04111-3030A

$1.49

28

BEARING This part replaces 08143-62017.

08143-6201B

$10.80

29

BEARING This part replaces 08123-62017.

08133-62017

$18.47

30

TIRE, FRONT (2.75-21) | IRC This part replaces 55100-05210.

55100-48500

Unavailable

31

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

32

PROTECTOR, INNER TUBE This part replaces 55261-16510.

55261-14540

$3.83

33

RIM, WHEEL (1.60x21) | MODEL Z

55311-48020

$171.00

33

RIM, WHEEL (1.60x21) | MODEL D This part replaces 55311-05220.

55311-48020

$171.00

34

SPOKE SET

55320-05200

Unavailable
