Partiron

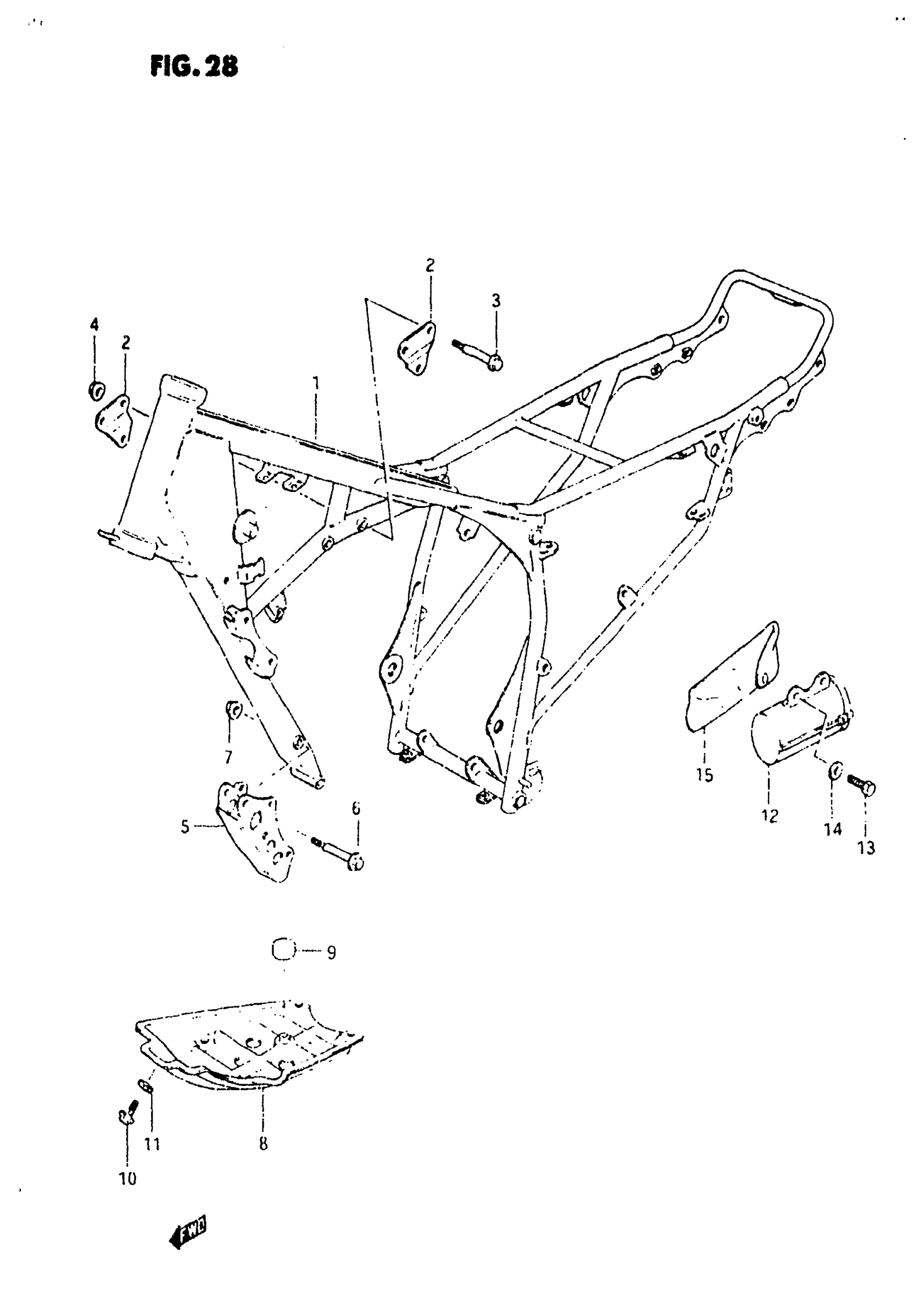

Suzuki SP125 (1983) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL Z This part replaces 41100-05200-019.

41100-05201-019

Unavailable

1

FRAME (BLACK) | MODEL D

41100-05201-019

Unavailable

2

PLATE, UPPER

41991-05300

Unavailable

3

BOLT, LH This part replaces 01527-08507.

01550-08507

$3.55

4

NUT This part replaces 08319-31085.

08319-3108A

$2.32

5

PLATE, LOWER (BLACK) This part replaces 41992-05200.

41992-05200-019

Unavailable

6

BOLT This part replaces 01527-08657.

01550-08657

$4.68

7

NUT This part replaces 08319-31085.

08319-3108A

$2.32

8

PROTECTOR, ENGINE (SILVER) | MODEL Z This part replaces 42510-05200-019.

42510-05203-13L

Unavailable

8

PROTECTOR, ENGINE (SILVER) | MODEL D This part replaces 42510-05202-019.

42510-05203-13L

Unavailable

9

CUSHION

09329-12003

Unavailable

10

BOLT This part replaces 01517-06128.

01550-06127

$2.30

11

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

12

HOLDER, TOOL This part replaces 41551-38200.

41551-38201

$41.63

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

15

TOOL ASSY (CA) This part replaces 09800-00245.

09800-21021

Unavailable
