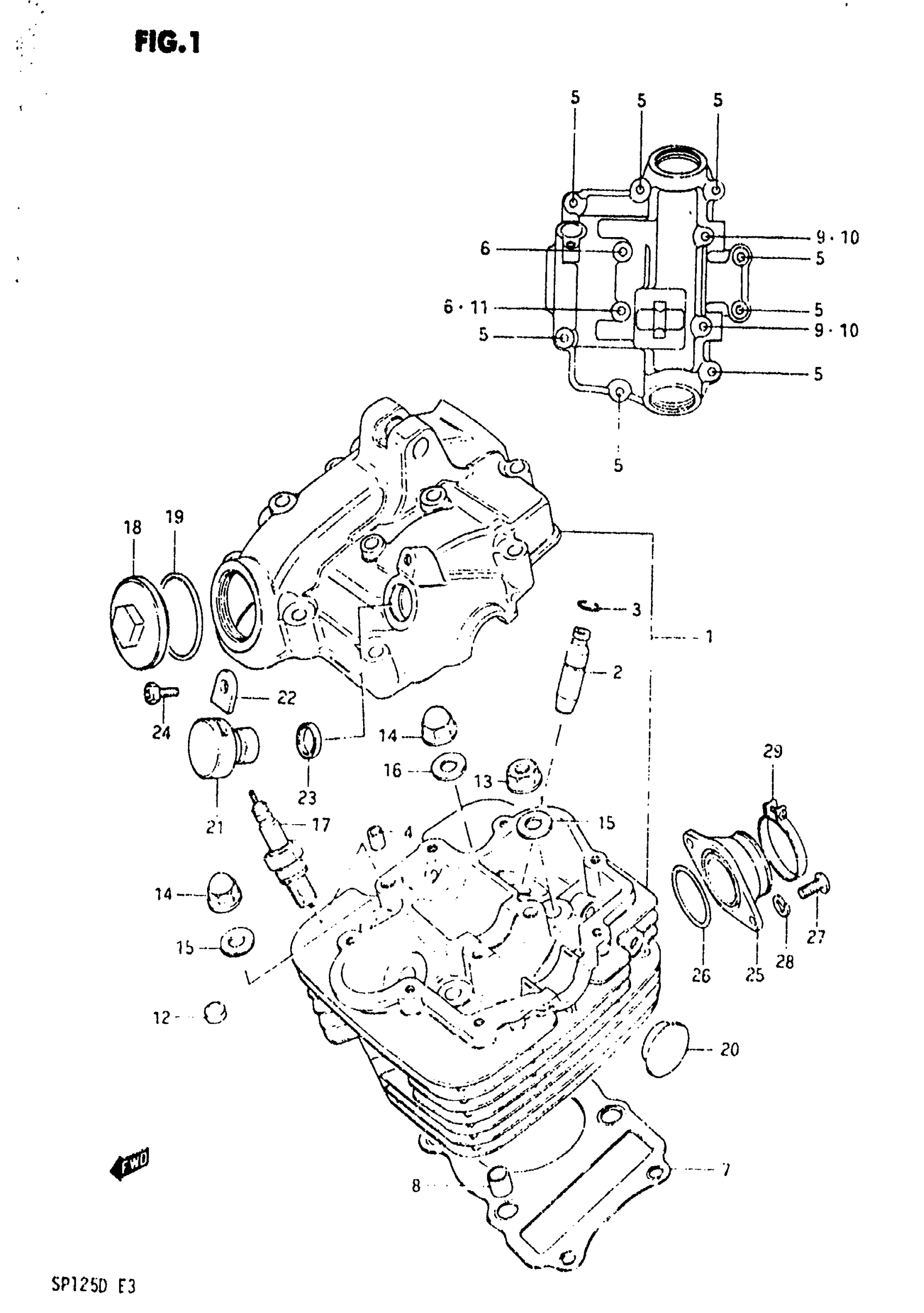

Suzuki SP125 (1983) CYLINDER HEAD (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | SEE NOTE; Includes Item(s) 2 - 6 This part replaces 11100-05200.

11100-05203

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$32.10

3

.RING (10X85)

09381-10004

$1.50

4

PIN

09206-08001

$1.78

5

BOLT This part replaces 01517-06358.

01550-06357

$2.77

6

BOLT This part replaces 01517-06608.

01550-06607

$4.17

7

GASKET, CYLINDER HEAD This part replaces 11141-05200.

11141-05202

$12.15

8

PIN

04211-11169

$1.78

9

STUD BOLT (L:25) This part replaces 01421-06258.

01421-06257

$2.85

10

NUT This part replaces 08316-16068.

08319-31067

$2.03

11

WASHER

09168-06004

$1.49

12

PAD, RUBBER

11151-45000

$3.84

13

NUT This part replaces 09159-08031.

09159-08034

$1.62

14

NUT

09159-08029

$5.81

15

WASHER

09160-08039

$2.03

16

GASKET

09168-08013

$2.92

17

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$3.32

17

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$5.18

18

CAP INSPECTION This part replaces 11175-37110.

11175-18920

$12.20

19

.O RING (D:3,ID:29.5)

09280-30001

$1.72

20

PLUG, HEAD

09241-22002

$5.24

21

PLUG

26442-45000

$19.72

22

PLATE

26449-33000

$4.35

23

SEAL BAND

26451-45000

$5.05

24

SCREW

09128-05101

$1.49

25

PIPE, INTAKE

13110-05200

Unavailable

26

O RING

09280-32006

$2.28

27

SCREW This part replaces 02112-06168.

02112-06167

$1.49

28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

29

CLAMP This part replaces 09402-40305.

09402-40303

$7.12
