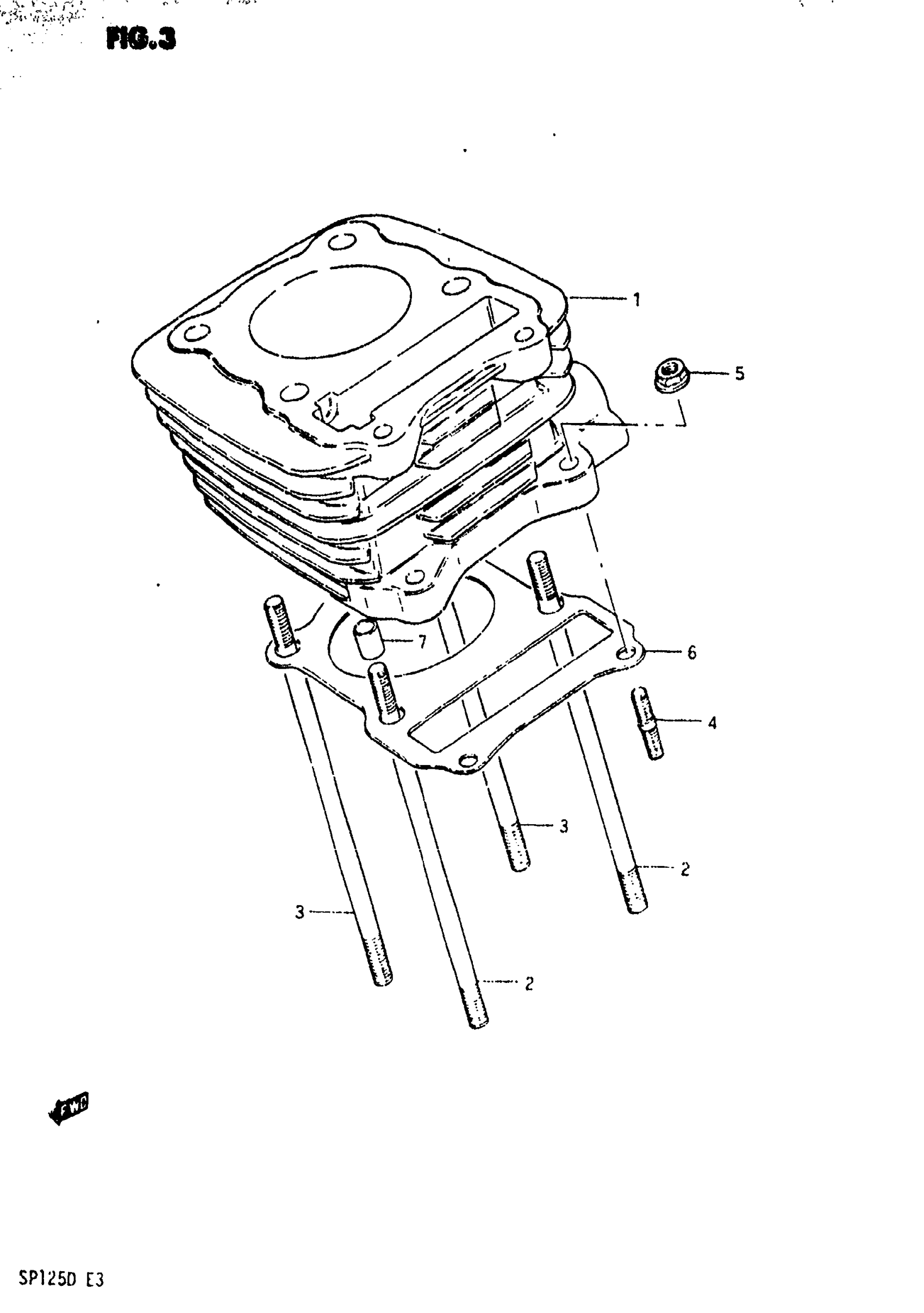

Suzuki SP125 (1983) CYLINDER Diagram

#

Description

Price

1

CYLINDER | MODEL Z This part replaces 11210-05200.

11210-05203-0F0

$392.77

1

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 11210-05211.

11210-05211-0F0

Unavailable

2

STUD BOLT (L:150)

09108-08062

$6.97

3

STUD BOLT (L:155)

09108-08089

$5.57

4

STUD BOLT (L:25) | MODEL Z This part replaces 01421-06258.

01421-06257

$2.85

4

STUD BOLT | MODEL D This part replaces 01421-06255.

01421-0625A

$1.99

5

NUT | MODEL Z This part replaces 08316-16068.

08319-31067

$2.03

5

NUT | MODEL D This part replaces 08316-16065.

08316-1006B

$2.50

6

.GASKET, CYLINDER This part replaces 11241-05200.

11241-05311

$5.62

7

PIN

04211-11169

$1.78
