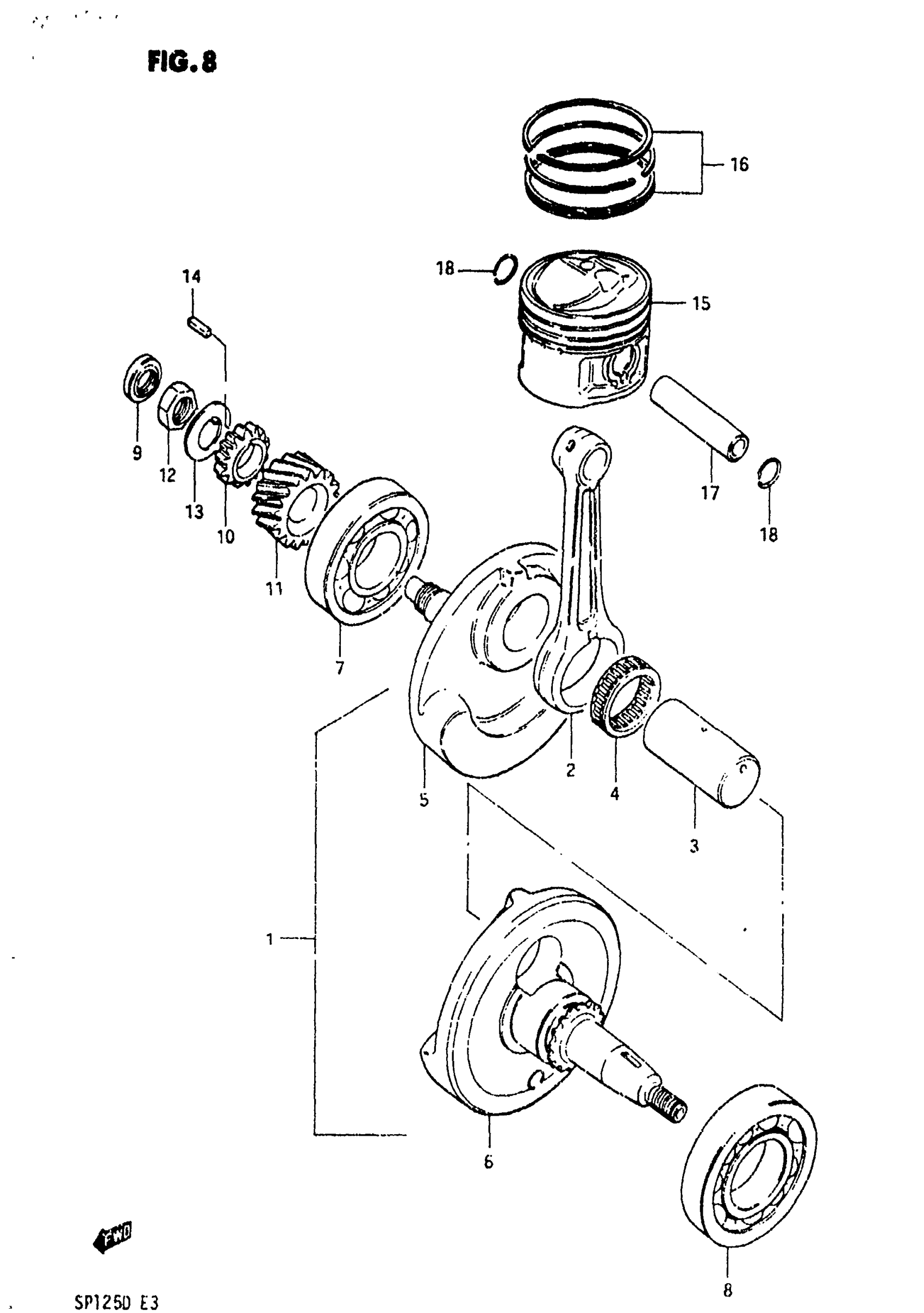

Suzuki SP125 (1983) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | ~E.NO.101281 This part replaces 12200-05200.

12200-05224

Unavailable

1

CRANKSHAFT ASSY | E.NO.101282~; Includes Item(s) 2 - 6 This part replaces 12200-05220.

12200-05224

Unavailable

2

ROD SET, CONNECTING | ~E.NO.101281 This part replaces 12161-05200.

12105-05821

$175.98

2

ROD SET, CONNECTING | E.NO.101282~ This part replaces 12161-05220.

12105-05821

$175.98

3

PIN | ~E.NO.101281 This part replaces 12211-05201.

12211-05220

Unavailable

3

PIN | E.NO.101282~

12211-05220

Unavailable

4

BEARING (28X36X15.8) This part replaces 09263-28015.

09263-28027-0B0

Unavailable

5

CRANKSHAFT, RH This part replaces 12221-05201.

12221-05202

Unavailable

6

.CRANKSHAFT LH This part replaces 12261-05200.

12261-05210

Unavailable

7

BEARING (28X68X18) This part replaces 09262-28003.

09262-28014

$57.95

8

BEARING (35X72X17) This part replaces 09262-35010.

09262-35038

$46.10

9

OIL SEAL (12X21X7) This part replaces 09282-12001.

09282-12009

$13.11

10

GEAR, OIL PUMP DRIVE (NT:15) This part replaces 16321-05200.

16321-05201

Unavailable

11

GEAR, PRIMARY DRIVE (NT:17) This part replaces 21111-05200.

21111-05200-0C0

Unavailable

12

NUT

09140-16019

$3.70

13

LOCK WASHER

09166-16012

$2.53

14

KEY, GEAR

09421-04004

$3.99

15

PISTON | MODEL Z This part replaces 12111-05201.

12111-05202-0F0

$69.95

15

PISTON | MODEL D This part replaces 12111-05202.

12111-05202-0F0

$69.95

15

PISTON SET (OS:0.5) | OPT, MODEL Z This part replaces 12111-05201-050.

12100-05200-050

$124.55

15

PISTON SET (OS:0.5) | OPT, MODEL D This part replaces 12111-05202-050.

12100-05200-050

$124.55

15

PISTON SET (OS:1.0) | OPT, MODEL Z This part replaces 12111-05201-100.

12100-05200-100

Unavailable

15

PISTON SET (OS:1.0) | OPT, MODEL D This part replaces 12111-05202-100.

12100-05200-100

Unavailable

16

RING SET, PISTON This part replaces 12140-05211.

12140-01410

$36.08

16

RING SET, PISTON (OS:0.5) | OPT This part replaces 12140-05211-050.

12140-01410-050

$44.10

16

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-05211-100.

12140-01410-100

Unavailable

17

PIN | ~E.NO.101281

12151-05200

$12.50

17

PIN, PISTON | E.NO.101282~ This part replaces 12151-05220.

12151-05220-0A0

$13.65

18

RING

09381-14001

$1.49
