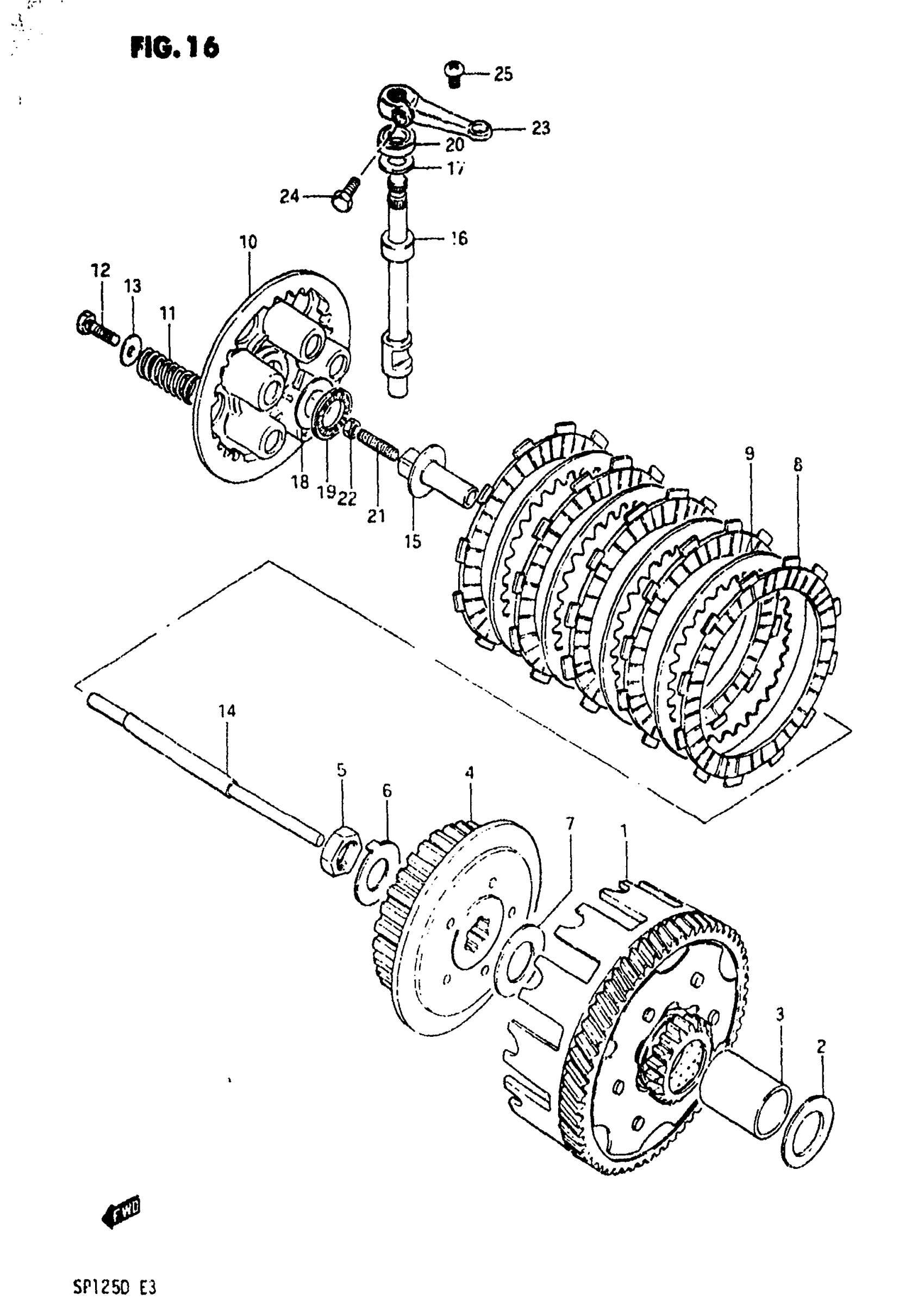

Suzuki SP125 (1983) CLUTCH Diagram

#

Description
Price

1

GEAR ASS'Y, PRIMARY DRIVEN | NT:59, MODEL Z This part replaces 21200-05200.

21200-05853

Unavailable

1

GEAR ASS'Y, PRIMARY DRIVEN | NT:59, MODEL D This part replaces 21200-05850.

21200-05853

Unavailable

2

WASHER

08211-20353

Unavailable

3

SPACER, PRIMARY DRIVEN | MODEL Z This part replaces 09180-20010.

21251-13E00

$23.38

4

HUB, CLUTCH SLEEVE (NT:30) This part replaces 21411-05200.

21411-05230

$77.92

5

NUT This part replaces 09140-16014.

09140-16005

$3.75

6

LOCK WASHER

09169-16003

$2.45

7

WASHER

08211-20352

Unavailable

8

PLATE, CLUTCH DRIVE This part replaces 21441-28301.

21441-13A01

$14.73

9

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

$7.58

10

DISC, CL PRESSURE This part replaces 21462-14102.

21462-14130

$24.87

11

SPRING

09440-15014

$3.37

12

BOLT

09100-05002

$1.49

13

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

14

ROD, CLUTCH PUSH This part replaces 23110-05200.

23110-05203

$18.02

15

PIECE, CLUTCH PUSH This part replaces 23121-38200.

23121-38201

$26.73

16

CAMSHAFT, CLUTCH RELEASE

23122-05200

$50.10

17

WASHER, CLUTCH RELEASE This part replaces 08211-10201.

09181-10195

$1.99

18

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

19

THRUST BEARING

09263-15003

$8.29

20

SEAL, CLUTCH RELEASE ARM This part replaces 09282-10007.

09282-10012

$7.98

21

SCREW This part replaces 09134-06001.

09134-06010

$3.12

22

.NUT This part replaces 08310-22068.

08310-00067

$2.13

23

ARM, CLUTCH RELEASE This part replaces 23271-46000.

23271-46010

$28.97

24

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

25

SCREW

02142-06108

$2.45
