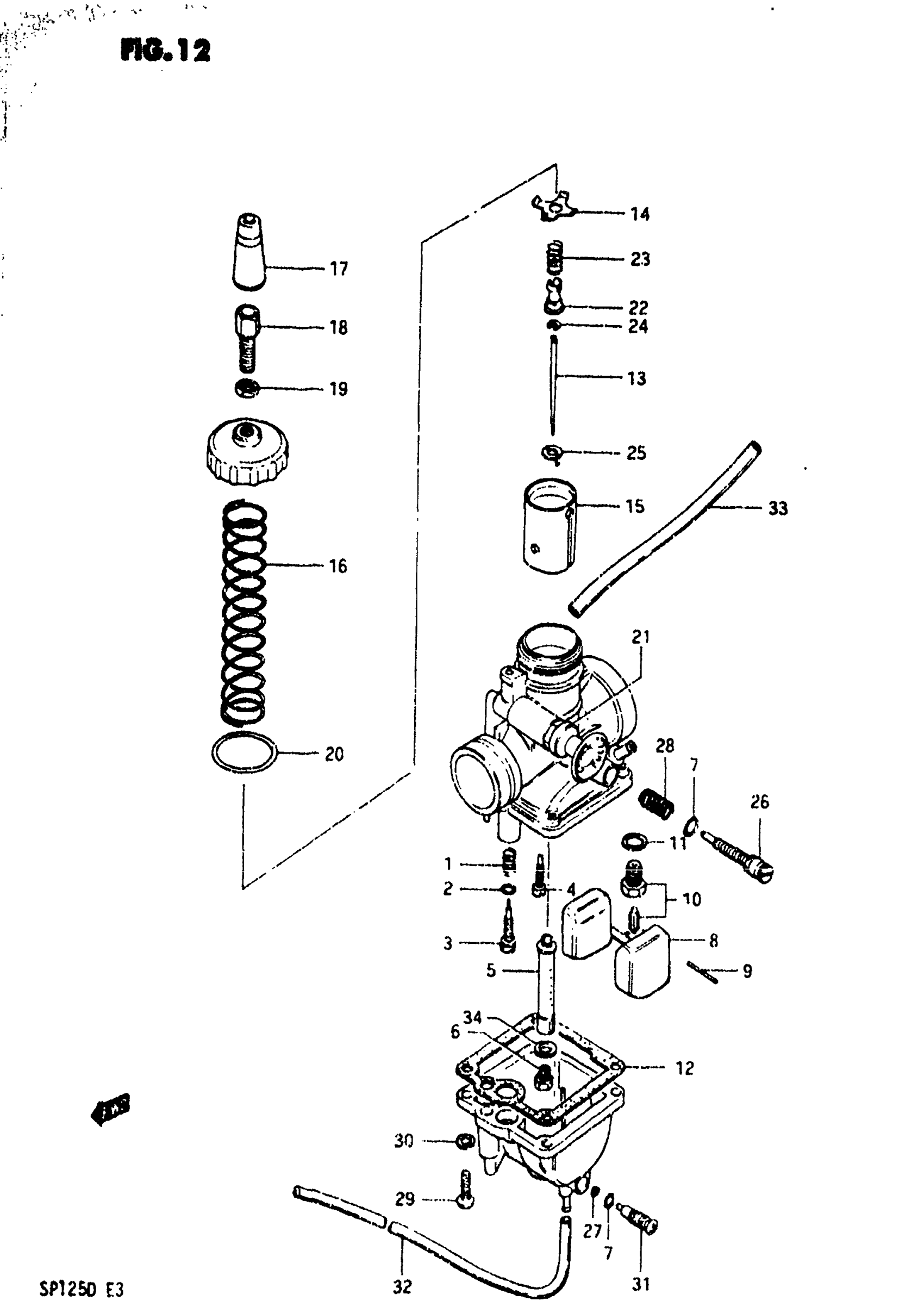

Suzuki SP125 (1983) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | MODEL Z

13200-05200

Unavailable

0

CARBURETOR ASSY | MODEL D; Includes Item(s) 1 - 34

13200-05270

Unavailable

1

SPRING

13271-05200

Unavailable

2

O RING This part replaces 13278-05200.

13278-45010

$6.30

3

SCREW, PILOT

13279-05200

Unavailable

4

JET, PILOT (38) | MODEL Z

09492-38002

Unavailable

4

JET, PILOT (40) | MODEL D

09492-40013

Unavailable

5

JET, NEEDLE (ID:2.595) | MODEL Z

09494-00366

Unavailable

5

JET, NEEDLE (ID:2.590) | MODEL D

09494-00405

Unavailable

6

JET, MAIN (100) | MODEL Z

09491-20014

Unavailable

6

JET, MAIN (98) | MODEL D

09491-98002

Unavailable

7

O RING (D:1.9,ID:4.8) This part replaces 13246-05200.

09280-05004

$2.11

8

FLOAT

13252-05200

Unavailable

9

PIN

13254-05200

Unavailable

10

VALVE SEAT ASSY (ID:2.0)

13370-05200

Unavailable

11

GASKET, VALVE SEAT

13392-05200

Unavailable

12

GASKET, FLOAT CHAMBER

13251-05200

Unavailable

13

NEEDLE, JET (4C73 1/1) | MODEL Z

13383-05200

Unavailable

13

NEEDLE, JET (4C74 1/1) | MODEL D

13383-05270

Unavailable

14

SEAT, SPRING

13581-05200

Unavailable

15

THROTTLE VALVE (CA:2.5)

13551-05200

Unavailable

16

SPRING, THROTTLE

13573-05200

Unavailable

17

CAP

13681-05200

Unavailable

18

ADJUSTER, CABLE

13577-05200

Unavailable

19

NUT, LOCK

13661-05200

Unavailable

20

O RING

13266-05200

Unavailable

21

PLUNGER ASSY. STARTER

13400-05200

Unavailable

22

HOLDER, NEEDLE

13389-05200

Unavailable

23

SPRING

13388-05200

Unavailable

24

E RING

13384-05200

Unavailable

25

GUIDE, NEEDLE

13382-05200

Unavailable

26

SCREW, THROTTLE VALVE STOP

13267-05200

Unavailable

27

O RING

13294-05200

Unavailable

28

SPRING

13268-05200

Unavailable

29

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

30

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

31

SCREW, DRAIN

13247-05200

Unavailable

32

HOSE This part replaces 13684-05200.

13684-40A00

$9.58

33

HOSE (3.5X6.5X600) | MODEL Z This part replaces 13684-05210.

09351-35653-600

$4.64

33

HOSE,5X10X600 | MODEL D This part replaces 13684-05270.

44421-13ER0

$10.06

34

WASHER MAIN JET

13343-05200

Unavailable
