1983 Suzuki SP125 Cam Chain Diagram

← All diagrams

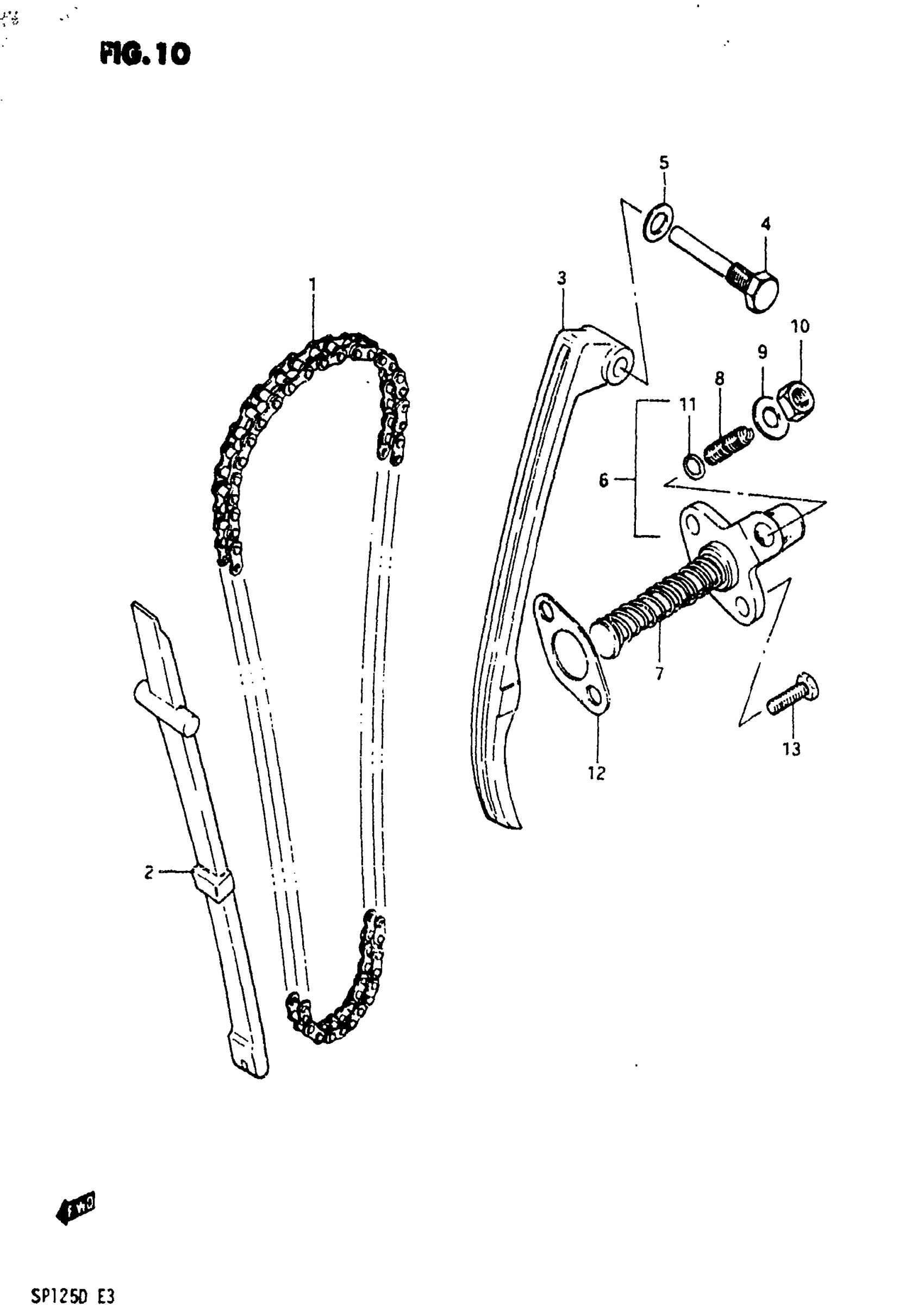

Find the part on the Cam Chain diagram for your 1983 Suzuki SP125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki SP125 Cam Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

GUIDE, CAM CHAIN

12771-05200

1

$49.30

In stock

4

BOLT

12812-32410

1

$4.64

In stock

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

1
Out of stock

7

SPRING

09440-11015

1

$2.77

In stock

8

SCREW

12838-45001

1
Out of stock

9

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

10

1

$1.93

In stock

13

2

$2.48

In stock
← Cam Chain Cam Shaft - Valve →
