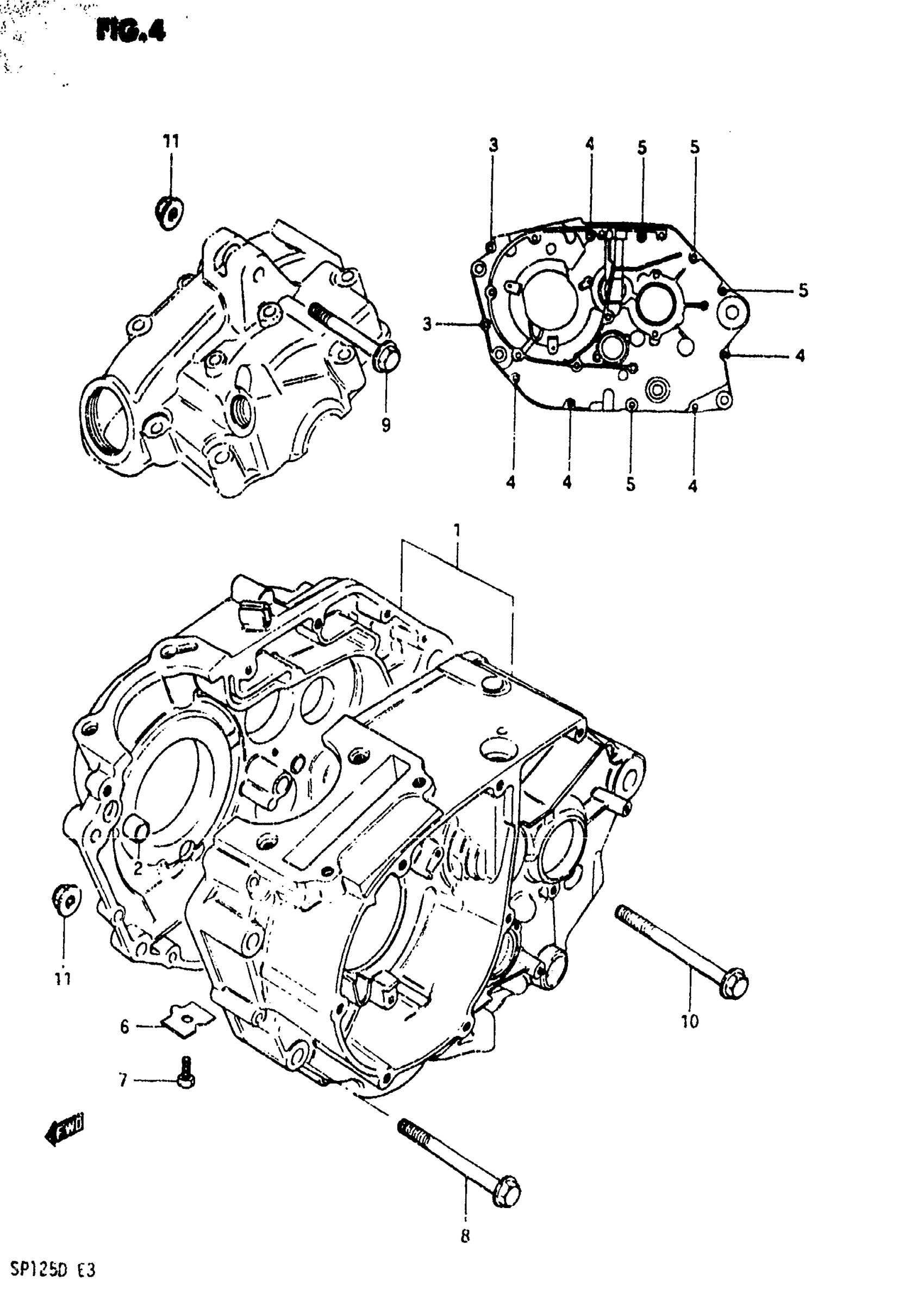

Suzuki SP125 (1983) CRANKCASE (MODEL Z) Diagram

#

Description

Price

1

CRANKCASE SET | Includes Item(s) 2 - 7 This part replaces 11300-05200.

11300-05201

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT This part replaces 01547-06458.

01547-06457

$2.31

4

BOLT This part replaces 01547-06608.

01547-06607

$3.47

5

BOLT,CARB This part replaces 01547-06758.

09103-06522

$3.20

6

.PLATE, OIL GALLEY PLUG

11319-05200

$3.80

7

BOLT This part replaces 01107-06108.

01500-06107

$2.07

8

BOLT (8X80)

09103-08016

$32.38

9

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.25

10

BOLT This part replaces 01517-08858.

01550-0885B

Unavailable

11

NUT This part replaces 08319-31088.

08319-3108A

$2.31
