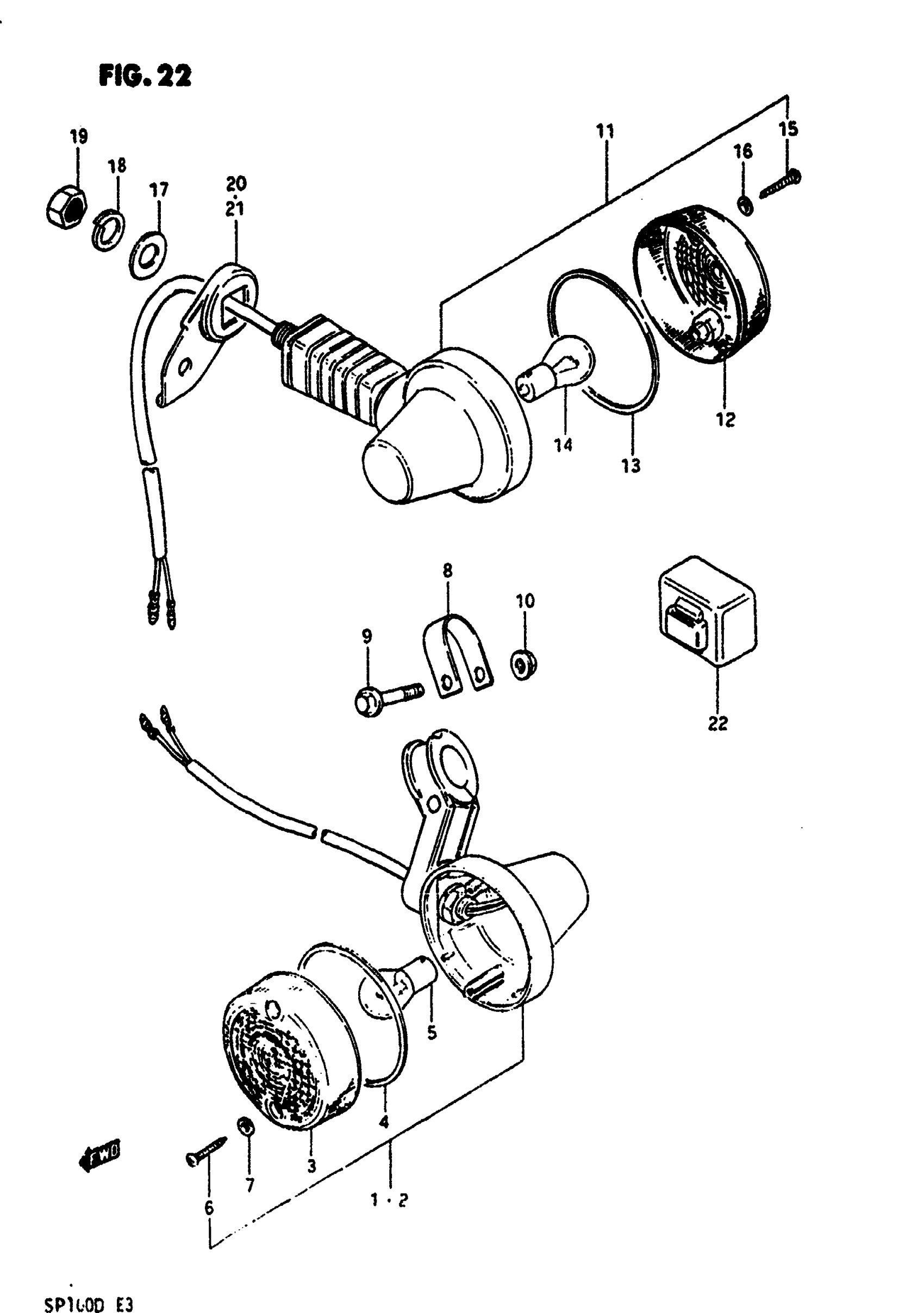

Suzuki SP100 (1983) TURN SIGNAL LAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 35601-05230.

35601-05230-999

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 8 This part replaces 35602-05230.

35602-05230-999

Unavailable

3

LENS,FR TRNSIG This part replaces 35612-48530.

35612-01A70

$9.33

4

GASKET

35613-28620

$4.55

5

BULB (6V,17W)

09471-06011

Unavailable

6

SCREW This part replaces 03211-04258.

03211-0425B

$2.70

7

GASKET

35627-43010

$2.28

8

PLATE

35616-05210

Unavailable

9

BOLT

09103-05003

Unavailable

10

NUT This part replaces 08316-16058.

08316-1005A

$2.19

11

LAMP, REAR TURN SIGNAL | Includes Item(s) 12 - 16 This part replaces 35603-38211.

35603-38201-999

Unavailable

12

LENS,FR TRNSIG This part replaces 35612-48530.

35612-01A70

$9.33

13

GASKET

35613-28620

$4.55

14

BULB (6V,17W)

09471-06011

Unavailable

15

SCREW This part replaces 03211-04258.

03211-0425B

$2.70

16

GASKET

35627-43010

$2.28

17

WASHER This part replaces 09160-12049.

09160-12048

Unavailable

18

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

19

NUT, FIXED DRIVE FACE This part replaces 08310-12128.

09140-12039

$3.05

20

BRACKET, RH

35621-05230

Unavailable

21

BRACKET, LH

35641-05230

Unavailable

22

RELAY ASSY,TRN This part replaces 38610-48600.

38610-05X50

Unavailable
