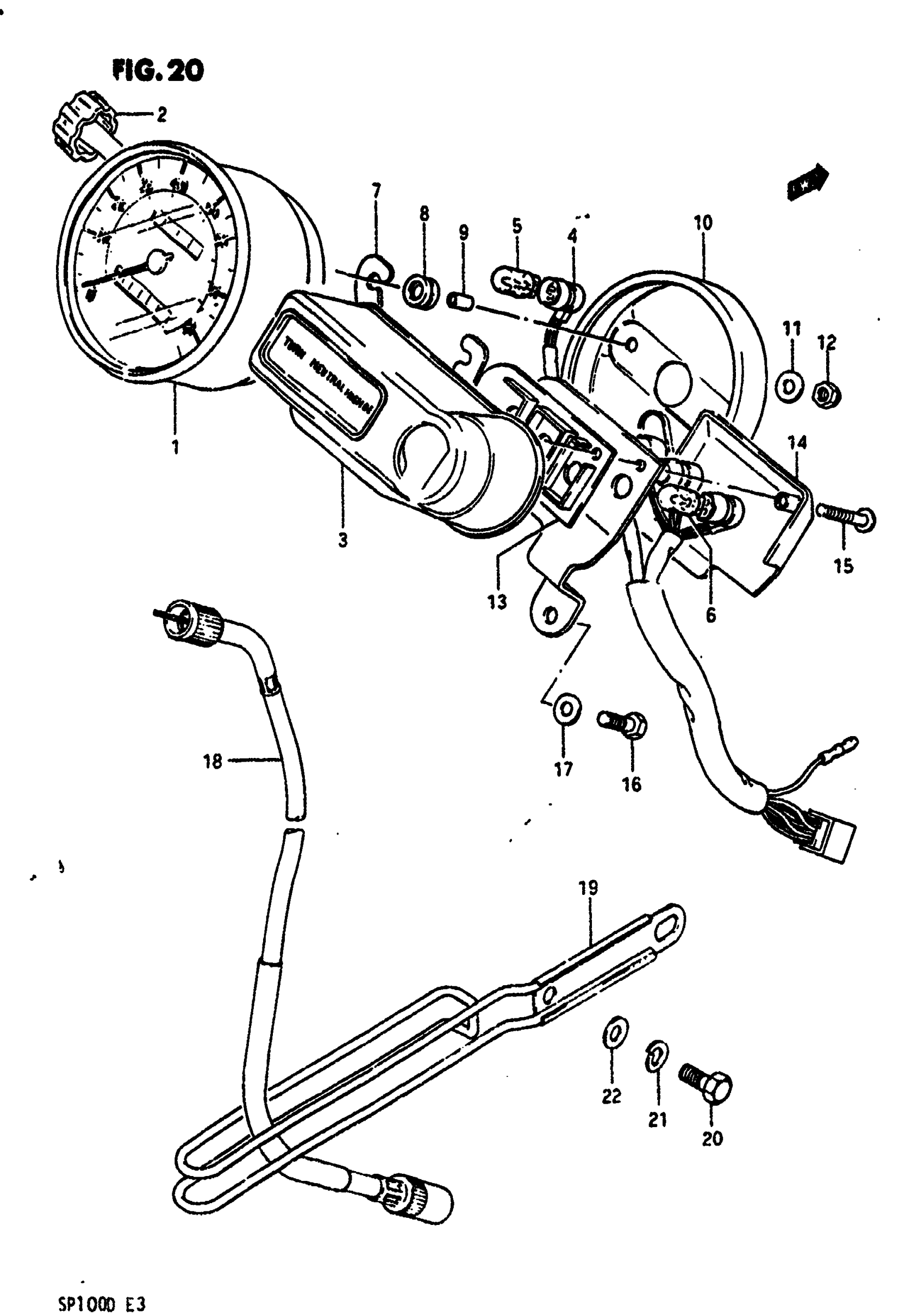

Suzuki SP100 (1983) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | Includes Item(s) 2 This part replaces 34110-38210.

34110-38290

Unavailable

2

KNOB

34980-38200

$6.38

3

PILOT BOX ASSY

36380-38210

Unavailable

4

SOCKET

34173-38210

Unavailable

5

BULB (6V, 3W)

09471-06053

$2.88

6

BULB (6V, 1.7W)

09471-06052

$4.17

7

BRACKET

34950-05280

Unavailable

8

CUSHION This part replaces 34955-30520.

34189-29330

$4.58

9

SPACER

34972-29300

Unavailable

10

ORNAMENT

34960-30520

Unavailable

11

WASHER (5.5X16X1.2) This part replaces 34181-30520.

09160-05037

$1.49

12

NUT This part replaces 34185-28310.

08313-1005B

$2.70

13

SOCKET HOLDER

36382-38210

Unavailable

14

COVER, PILOT BOX

36383-38210

Unavailable

15

SCREW This part replaces 03111-04305.

03511-04305

Unavailable

16

BOLT This part replaces 01107-06128.

01500-06127

$1.97

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

CABLE ASSY,SPEE This part replaces 34910-05230.

34910-13611

Unavailable

19

GUIDE,CABLE This part replaces 58620-30502.

34930-05203

$18.80

20

BOLT This part replaces 01107-08128.

01500-08127

$2.62

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

WASHER This part replaces 08322-11088.

08322-01087

$2.13
