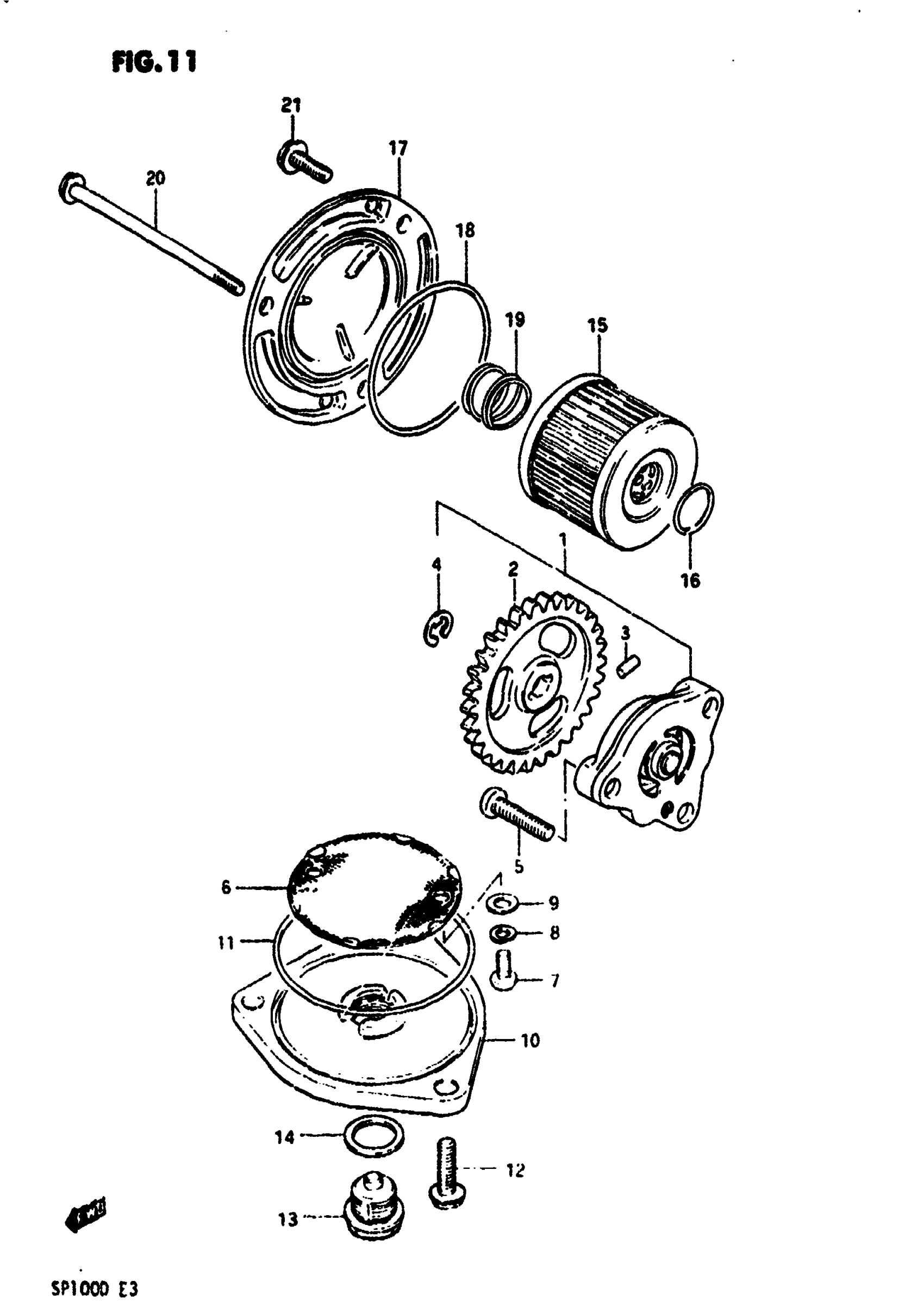

Suzuki SP100 (1983) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENGINE OIL This part replaces 16400-05200.

16400-05201

Unavailable

2

GEAR, DRIVEN (NT:30)

16331-05200

Unavailable

3

PIN

09261-02008

$1.65

4

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49

5

SCREW This part replaces 02112-06256.

02112-0625A

$1.80

6

STRAINER, ENGINE OIL

16520-05202

$5.80

7

SCREW This part replaces 02112-05128.

02112-05127

$1.97

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

WASHER This part replaces 08322-21058.

08322-01057

$2.13

10

CAP, OIL STR

16523-05200

$14.26

11

.O RING (D:2.4,ID:60.5)

09280-60005

$3.18

12

BOLT This part replaces 01547-06208.

01547-06207

$2.01

13

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

14

GASKET

09168-14004

$1.83

15

FILTER, ENGINE OIL

16510-05240

$6.06

16

O RING

09280-13004

$2.17

17

CAP, OIL FILTER This part replaces 16512-05210.

16512-05212

Unavailable

18

O RING

09280-54001

$3.76

19

SPRING

09440-18002

$1.49

20

BOLT This part replaces 01547-06908.

01547-0690B

$3.20

21

BOLT This part replaces 01547-06208.

01547-06207

$2.01
