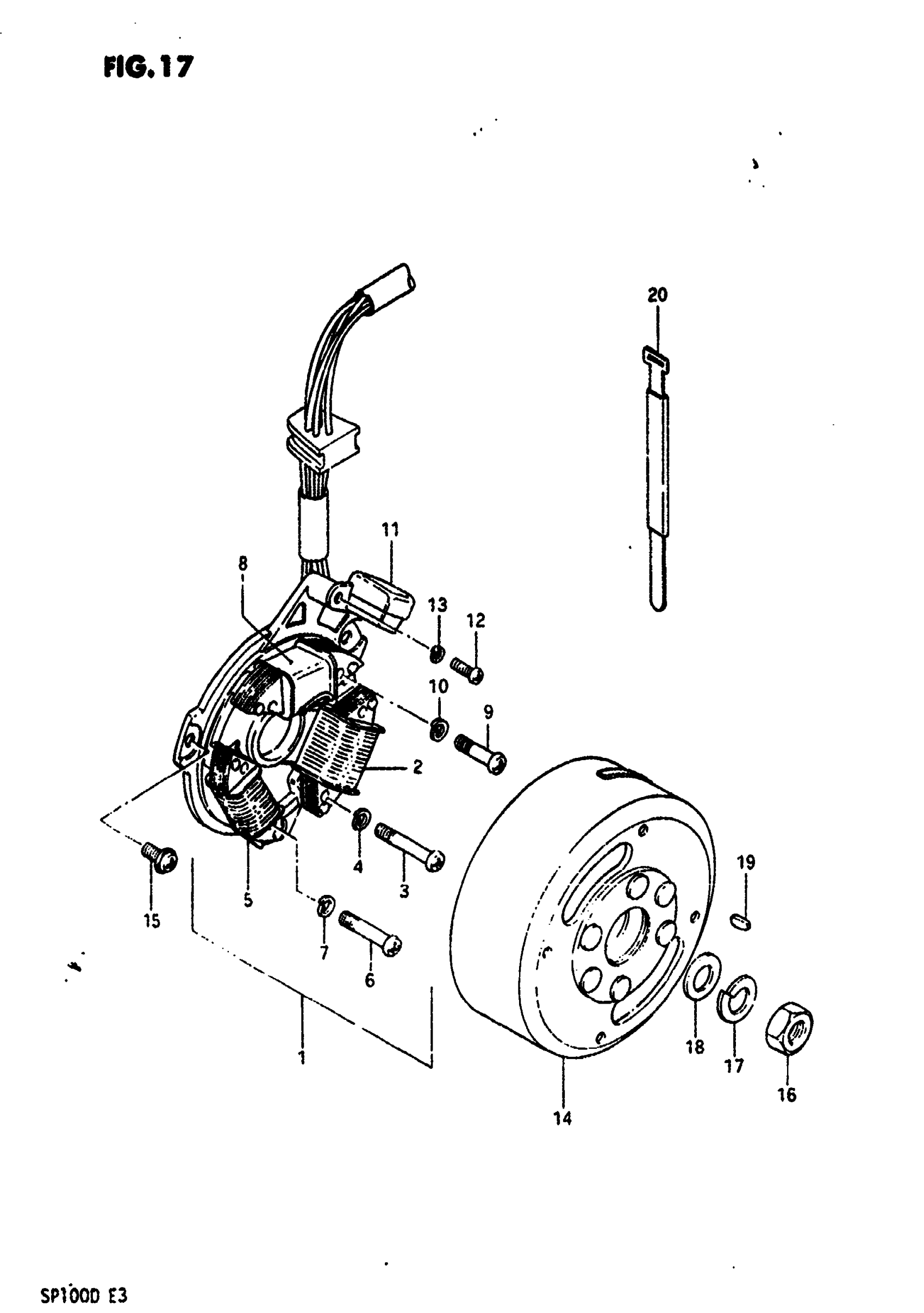

Suzuki SP100 (1983) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 13

32101-05210

Unavailable

2

COIL, LIGHTING

32120-05210

Unavailable

3

SCREW This part replaces 02112-05358.

02112-05357

$1.49

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

5

COIL, CHARGING

32130-05210

Unavailable

6

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

COIL, IGNITION PRIMERY

32140-05210

Unavailable

9

SCREW This part replaces 02112-05258.

02112-05257

$1.49

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

COIL, PICKUP This part replaces 32150-05210.

32150-22A01

$94.47

12

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

14

ROTOR, FLYWHEEL

32102-05210

Unavailable

15

SCREW

09139-05011

$2.38

16

NUT This part replaces 09140-10003.

09140-10041

$2.38

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

WASHER This part replaces 08322-21108.

08322-01107

$2.15

19

KEY

08341-31039

$1.89

20

CLAMP This part replaces 09407-11301.

09407-18302

$2.28
