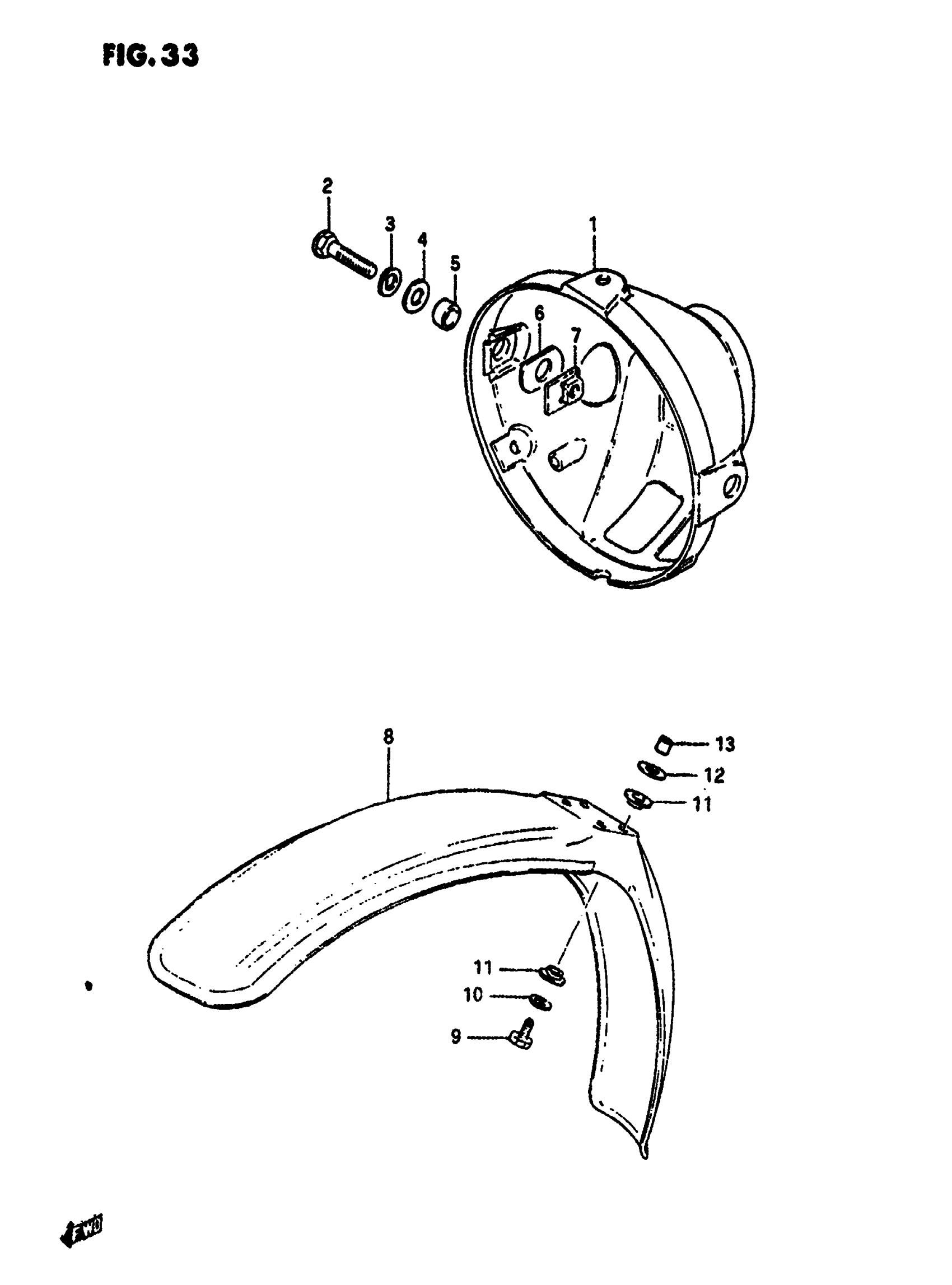

Suzuki SP100 (1983) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING, HEADLAMP (BLACK)

51811-37410-019

Unavailable

2

BOLT

01204-08257

$1.96

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

4

WASHER This part replaces 08322-11088.

08322-01087

$2.13

5

SPACER This part replaces 09180-08030.

09180-08187

$2.65

6

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

7

PLATE

51860-45000

$4.43

8

FENDER, FRONT (RED)

53111-05250-07P

Unavailable

9

BOLT This part replaces 01107-06258.

01500-06257

$1.97

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

WASHER (6.3X16X1) This part replaces 09180-06048.

09169-06053

$1.49

12

WASHER (6.5X14X2.3) | CALIFORNIA ONLY This part replaces 09160-06017.

09160-06127

$2.30

13

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91
