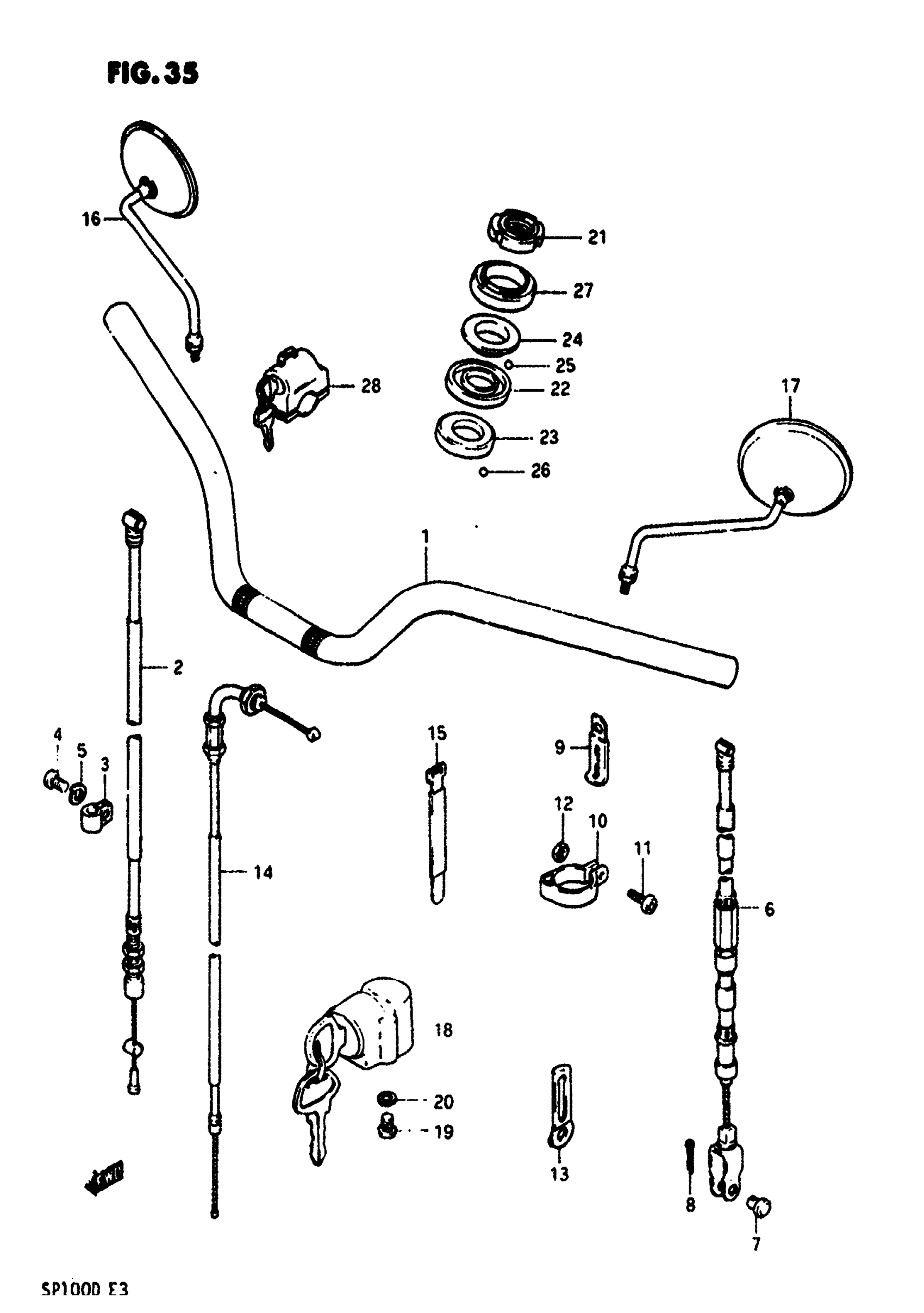

Suzuki SP100 (1983) HANDLEBAR Diagram

#

Description
Price

1

HANDLE BAR

56110-05261

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 58110-05260.

58110-05261

Unavailable

3

CLAMP This part replaces 58620-14201.

58620-40401

Unavailable

4

SCREW This part replaces 02112-06168.

02112-06167

$1.49

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

CABLE ASSY, CLUTCH

58200-05250

Unavailable

7

PIN

09200-06011

Unavailable

8

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

9

CLAMP This part replaces 09404-06412.

09404-06039

$1.74

10

CLAMP, NO. 2

58285-05250

Unavailable

11

SCREW This part replaces 02112-05165.

02112-05164

$2.63

12

NUT This part replaces 08310-22058.

08310-00057

$1.84

13

CLAMP, NO. 3

58285-05201

Unavailable

14

CABLE ASSY, THROTTLE

58300-05250

Unavailable

15

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

16

MIRROR ASSY,RR This part replaces 56500-45012.

56500-45014

$64.82

17

MIRROR ASSY,RR This part replaces 56600-45012.

56600-45014

$64.82

18

LOCK ASSY, STEERING

51910-25311

$40.33

19

SCREW This part replaces 02112-05128.

02112-05127

$1.97

20

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

21

NUT, STEERING STEM

51631-28000

$17.37

22

RACE,STEERING INNER UPPER

51611-20002

$11.95

23

RACE, INNER LOWER

51611-33002

$13.81

24

RACE,STEERING OUTER UPPER

51621-28000

$11.95

25

STEEL BALL

06111-06003

$1.49

26

STEEL BALL

06111-08003

$1.49

27

DUST SEAL,STEERING UPPER

51643-25001

$4.43

28

LOCK ASSY, HELMET

95700-04113

Unavailable
