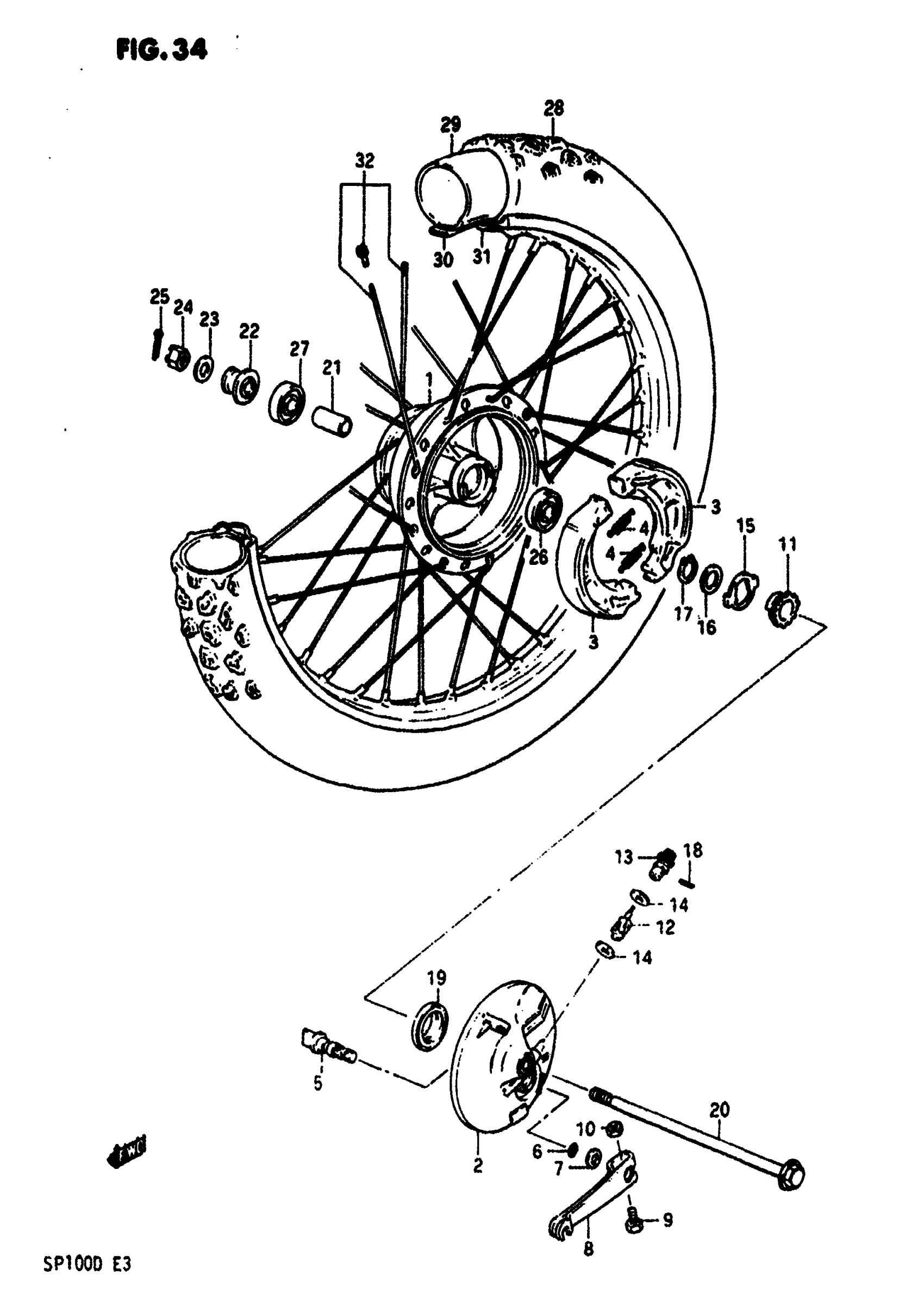

Suzuki SP100 (1983) FRONT WHEEL Diagram

#

Description
Price

1

HUB, WHEEL

54110-05212

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 54210-05210.

54210-05211

Unavailable

3

SHOE SET,BRAKE This part replaces 64410-40200.

64400-13810

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

NO DESCRIPTION AVAILABLE This part replaces 54441-26511.

54441-26512

Unavailable

6

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

7

WASHER This part replaces 09160-14001.

09160-14055

$2.39

8

LEVER, BRAKE CAM

54451-13600

Unavailable

9

BOLT This part replaces 01517-06358.

01550-06357

$2.77

10

NUT This part replaces 08316-16068.

08319-31067

$2.03

11

GEAR, SPEEDOMETER (NT:24)

54611-13201

Unavailable

12

PINION, SPEEDOMETER (NT:9)

54621-39202

Unavailable

13

BUSH

54632-01001

$12.80

14

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

15

DRIVER

54661-07000

$4.52

16

THRUST WASHER (18.5X24X1)

09160-18002

$2.38

17

CIRCLIP

08331-11189

Unavailable

18

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

19

OIL SEAL This part replaces 09285-43001.

09283-43004

$14.03

20

AXLE, FRONT

54711-05200

Unavailable

21

SPACER (12.6x18x52)

09180-12096

Unavailable

22

SPACER, FR AXLE This part replaces 54740-05210.

54740-02B40

$15.68

23

WASHER This part replaces 08322-11128.

08322-01127

$1.84

24

NUT This part replaces 08314-31128.

08314-3112A

$2.41

25

PIN This part replaces 04111-30308.

04111-3030A

$1.49

26

BEARING This part replaces 08143-62017.

08143-6201B

$10.80

27

BEARING This part replaces 08123-62017.

08133-62017

$18.47

28

TIRE, FRONT (2.50-19) IRC

55100-13210

Unavailable

29

TUBE, INNER This part replaces 55200-46730.

55200-29010

Unavailable

30

PROTECTOR

55261-46730

Unavailable

31

RIM, WHEEL (1.40x19)

55311-05251

Unavailable

32

SPOKE ASSY, FRONT

55320-05251

Unavailable
