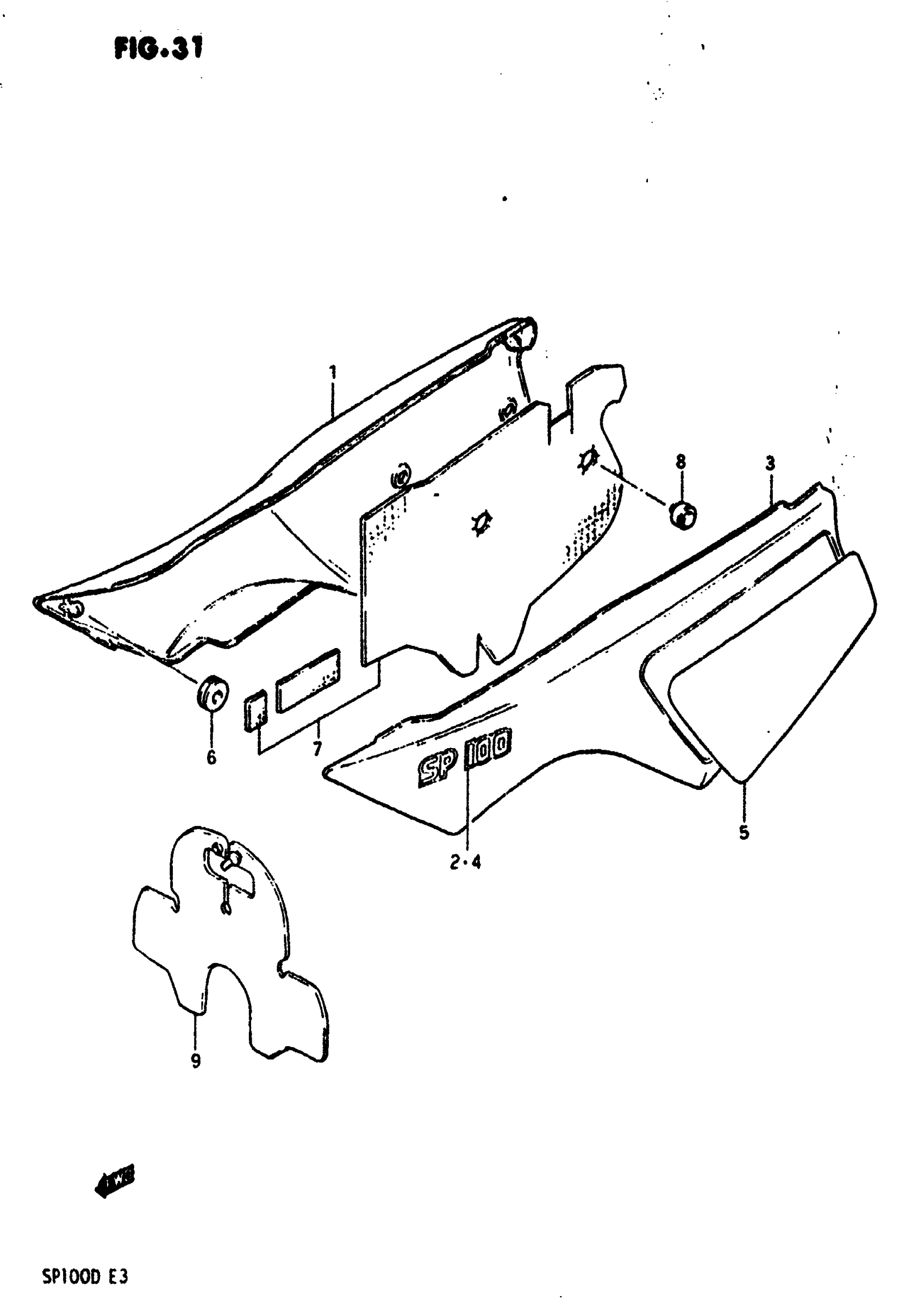

Suzuki SP100 (1983) FRAME COVER Diagram

#

Description

Price

1

COVER,FRAME,RH This part replaces 47111-05250-07P.

47111-05250-13L

Unavailable

2

EMBLEM

68131-05260-90E

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 47211-05250-07P.

47211-05251-13L

Unavailable

4

EMBLEM

68131-05260-90E

Unavailable

5

EMBLEM, LH (BLACK) This part replaces 68142-05250.

68142-05250-291

Unavailable

6

CUSHION, REAR

09320-08018

$3.04

7

HEAT SHIELD SET, FRAME COVER This part replaces 47100-05850.

47100-05851

Unavailable

8

CUSHION, RH

09321-10007

$2.71

9

MUD FLAP, FRONT | OTHER THAN CALIFORNIA

47157-05250

Unavailable

9

(CA) MUD FLAP, FRONT | CALIFORNIA ONLY

47157-05260

Unavailable
