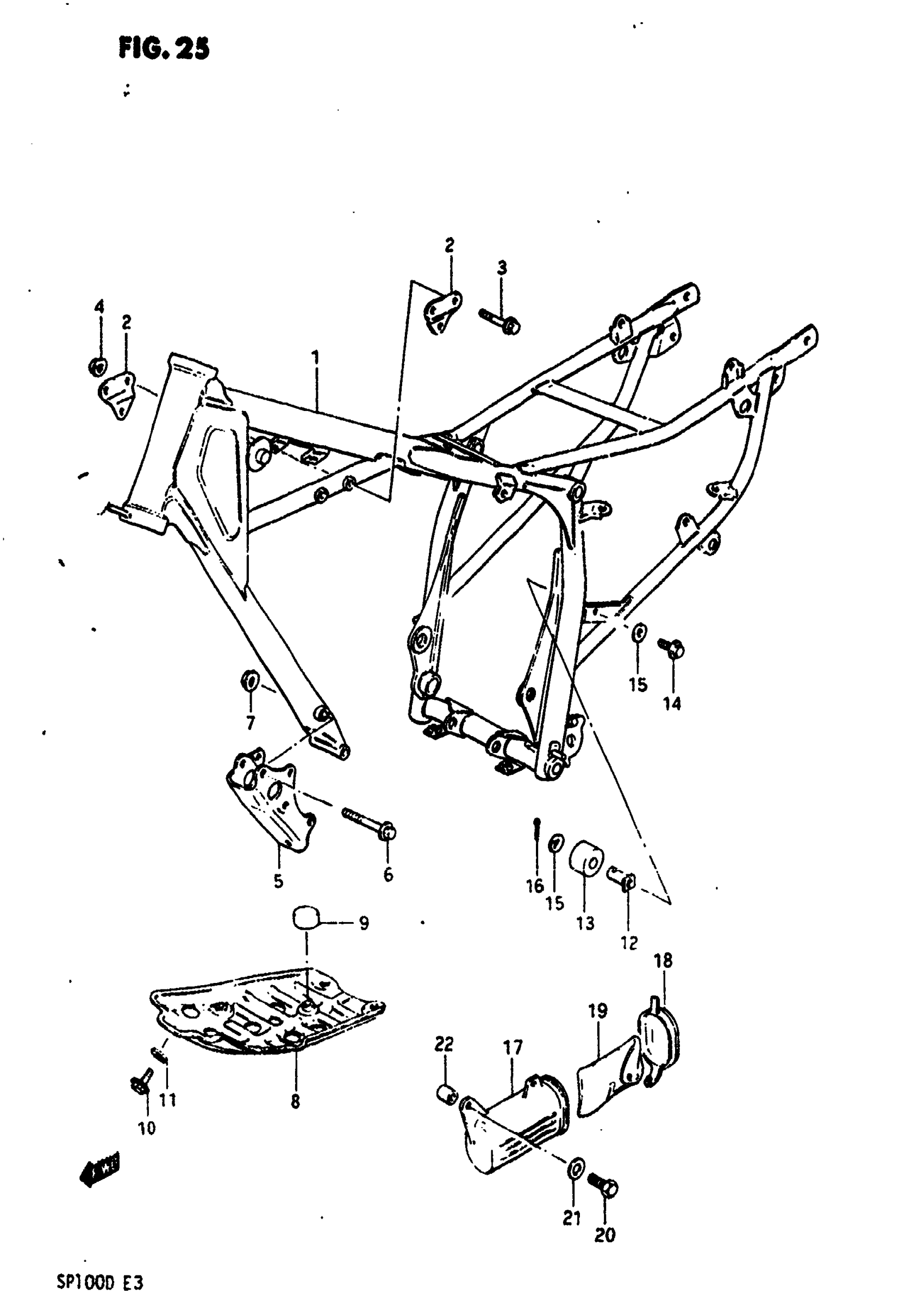

Suzuki SP100 (1983) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-05260-019

Unavailable

2

PLATE, UPPER

41991-05250

Unavailable

3

BOLT (8X50)

09103-08081

$3.72

4

NUT This part replaces 08319-31085.

08319-3108A

$2.32

5

PLATE, LOWER

41992-05250

Unavailable

6

BOLT (8X67) This part replaces 09103-08075.

09103-08037

$5.57

7

NUT This part replaces 08319-31085.

08319-3108A

$2.32

8

PROTECTOR, ENGINE (SILVER) This part replaces 42510-05202-019.

42510-05203-13L

Unavailable

9

CUSHION

09329-12003

Unavailable

10

BOLT This part replaces 01517-06128.

01550-06127

$2.30

11

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

12

BOSS, CHAIN CONTROL

43910-20400

Unavailable

13

ROLLER, CHAIN CONTROL

43911-20400

Unavailable

14

BOLT This part replaces 01517-06128.

01550-06127

$2.30

15

WASHER This part replaces 08322-21108.

08322-01107

$2.15

16

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

17

HOLDER, TOOL

41551-05260

Unavailable

18

CAP

41552-37210

$9.78

19

TOOL ASSY (CA) This part replaces 09800-00245.

09800-21021

Unavailable

20

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

21

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

22

SPACER, REAR This part replaces 09180-08110.

09180-08184

$3.16
