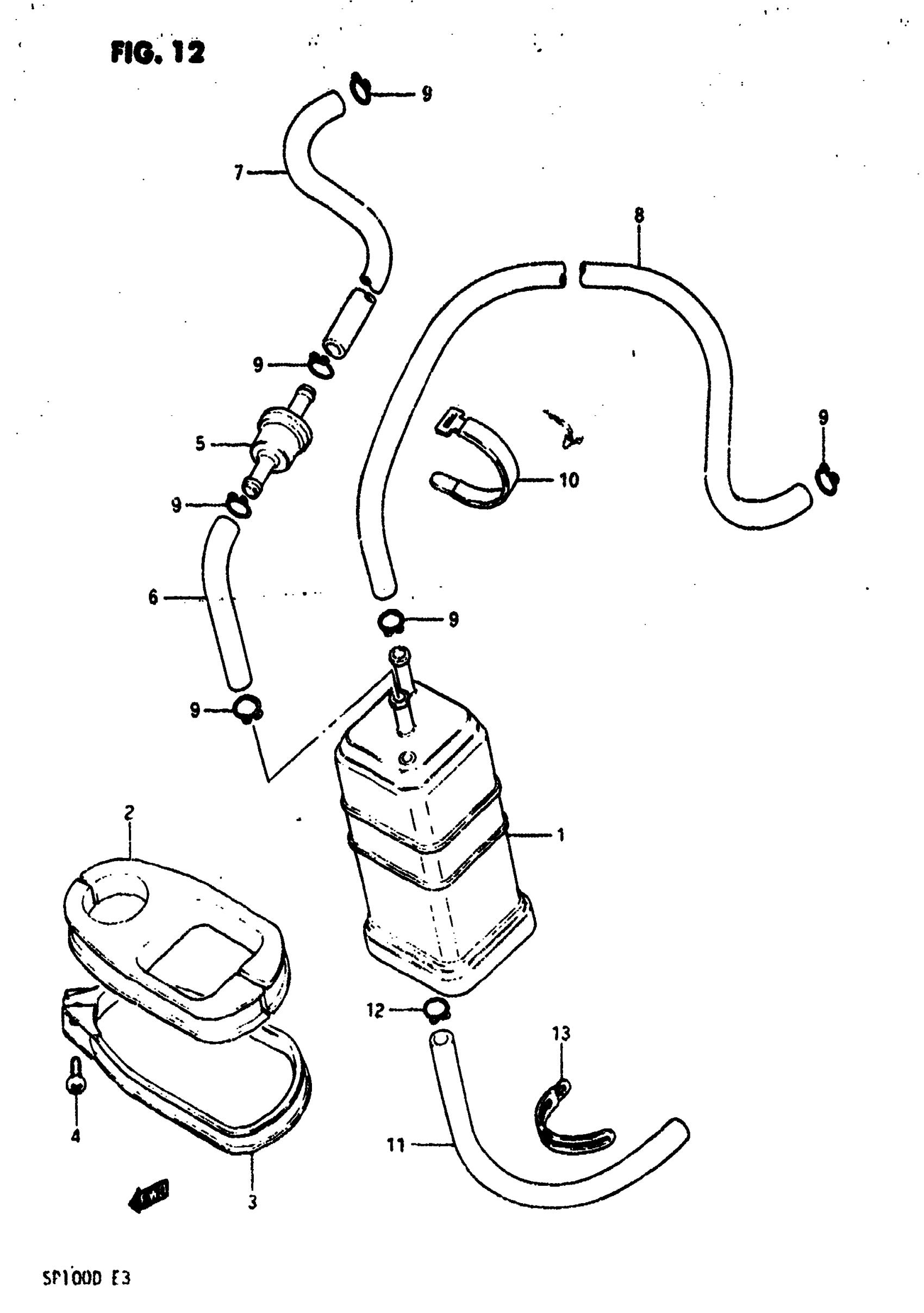

Suzuki SP100 (1983) EVAPORATOR (CALIFORNIA ONLY) Diagram

#

Description
Price

1

CANISTER This part replaces 17200-05850.

17210-05221

Unavailable

2

CUSHION

17235-05243

Unavailable

3

CLAMP

17230-05200

Unavailable

4

SCREW This part replaces 02112-05165.

02112-05164

$2.63

5

CHECK VALVE

17220-05201

Unavailable

6

HOSE (L:50)

17261-05311

Unavailable

7

HOSE (L:210)

17262-05241

Unavailable

8

HOSE (L:510)

17261-05241

Unavailable

9

CLIP

09401-12403

$1.96

10

CLAMP This part replaces 09407-14301.

09407-18302

$2.28

11

HOSE (L:190)

09343-07002

Unavailable

12

CLIP

09401-10403

$1.65

13

CLAMP This part replaces 09404-08402.

09404-08420

$3.16
