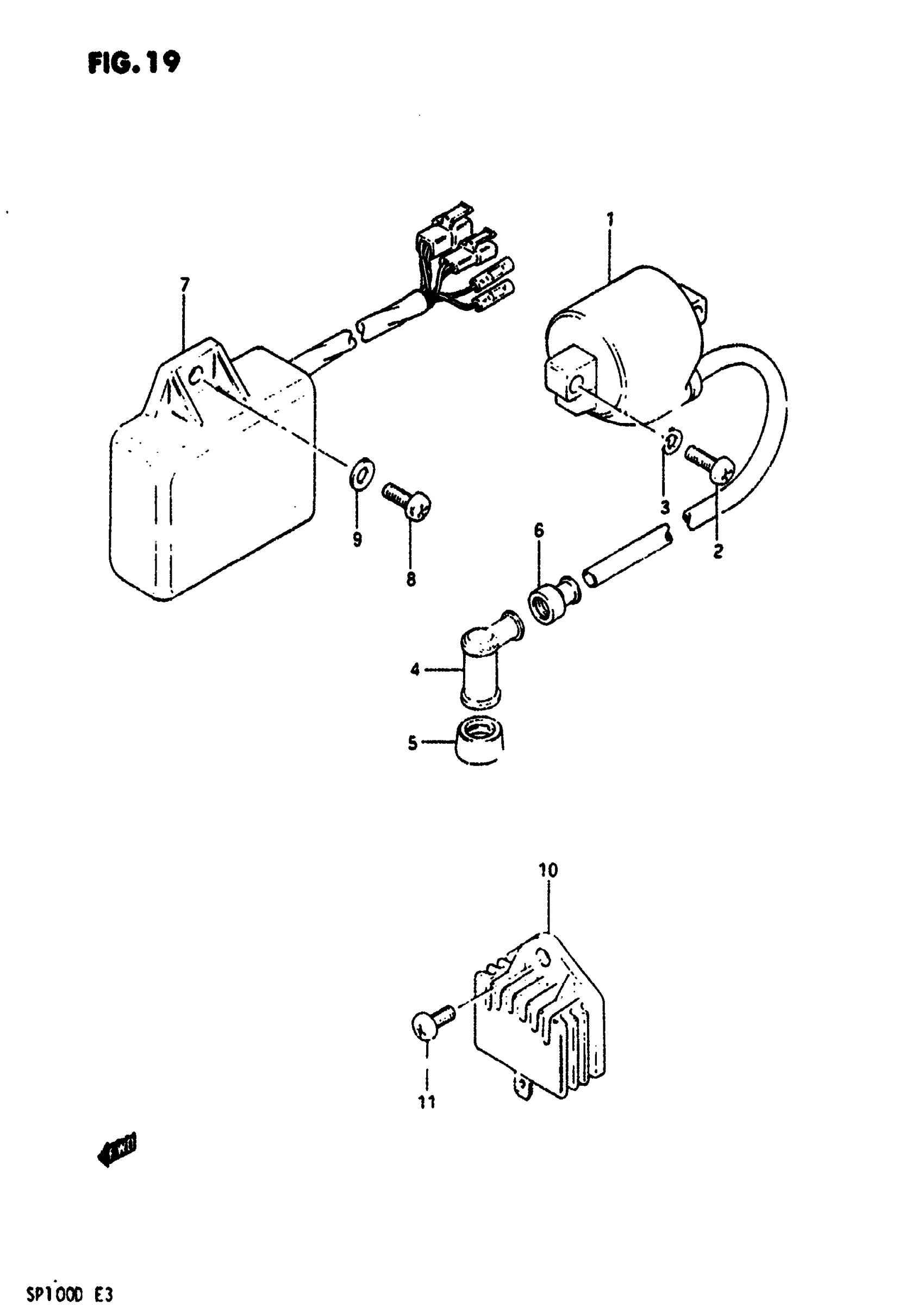

Suzuki SP100 (1983) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY, IGNITION This part replaces 33410-05210.

33410-01X50

$105.37

2

SCREW This part replaces 02112-06208.

02112-06207

$1.78

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.73

5

SEAL, SPARK PLUG

33541-38210

$4.68

6

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

7

CDI UNIT

32900-05210

Unavailable

8

SCREW This part replaces 02112-06168.

02112-06167

$1.49

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

RECTIFIER, REGULATOR

32800-38200

Unavailable

11

SCREW This part replaces 02112-06128.

02112-06127

$1.84
