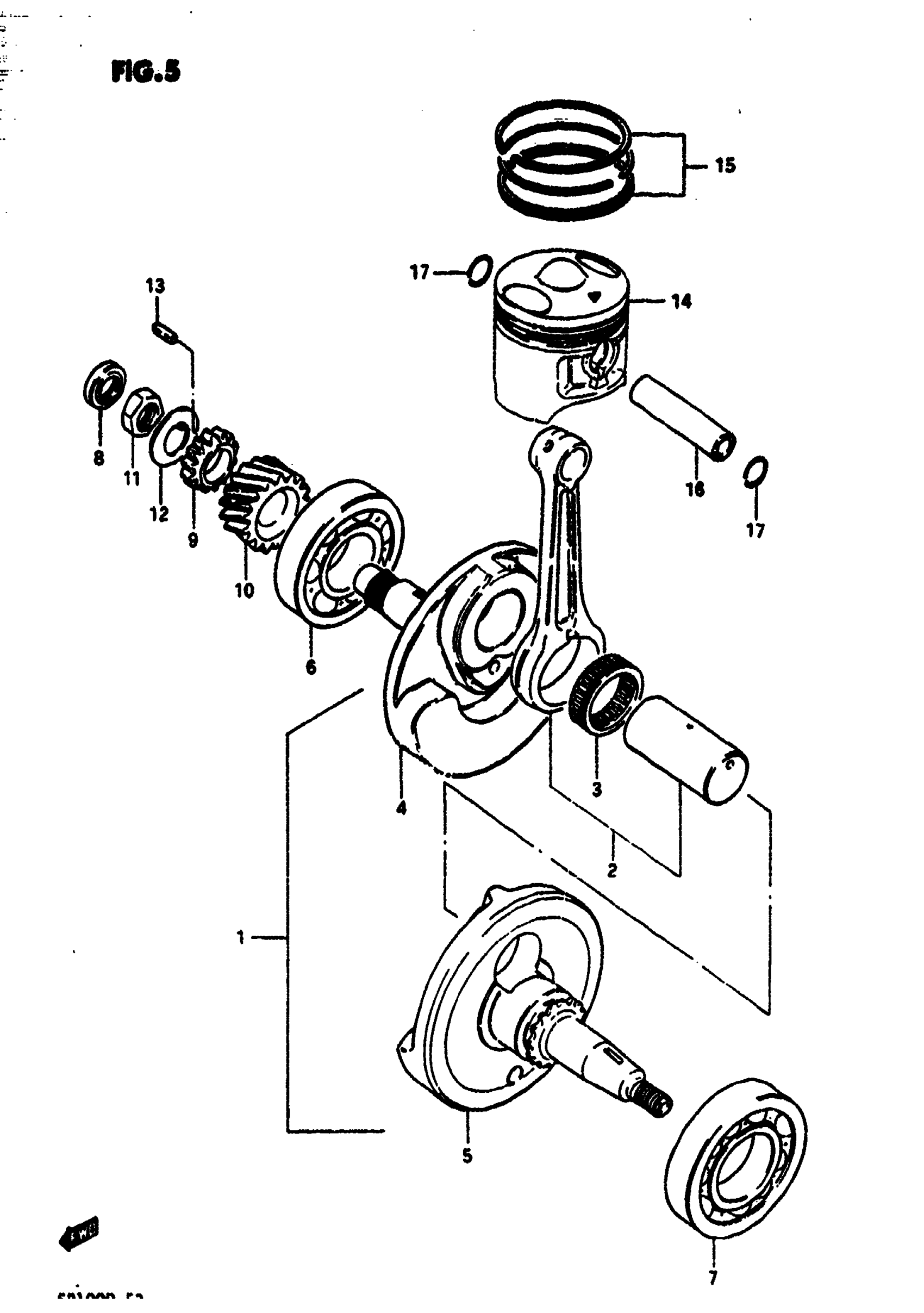

Suzuki SP100 (1983) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 5 This part replaces 12200-05230.

12200-05233

Unavailable

2

ROD SET, CONNECTING This part replaces 12200-05850.

12105-05821

$175.98

3

BEARING (28X36X15.8) This part replaces 09263-28017-020.

09263-28027-0B0

Unavailable

4

CRANKSHAFT, RH

12221-05230

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 12261-05230.

12261-05231

Unavailable

6

BEARING (28X68X18) This part replaces 09262-28003.

09262-28014

$57.95

7

BEARING (35X72X17) This part replaces 09262-35010.

09262-35038

$46.10

8

OIL SEAL (12X21X7) This part replaces 09282-12001.

09282-12009

$13.11

9

GEAR, OIL PUMP DRIVE (NT:15) This part replaces 16321-05200.

16321-05201

Unavailable

10

GEAR, PRIMARY DRIVE (NT:16)

21111-05210

Unavailable

11

NUT

09140-16019

$3.70

12

LOCK WASHER

09166-16012

$2.53

13

KEY, GEAR

09421-04004

$3.99

14

PISTON | STD

12111-05212

$86.45

14

PISTON KIT | OPT This part replaces 12111-05212-050.

12103-05830-050

Unavailable

14

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-05212-100.

12103-05830-100

Unavailable

15

RING SET, PISTON | STD

12140-05241

Unavailable

15

RING SET, PISTON (OS:0.5) | OPT

12140-05241-050

Unavailable

15

RING SET, PISTON (OS:1.0) | OPT

12140-05241-100

Unavailable

16

PIN

12151-05210

Unavailable

17

RING

09381-14001

$1.49
