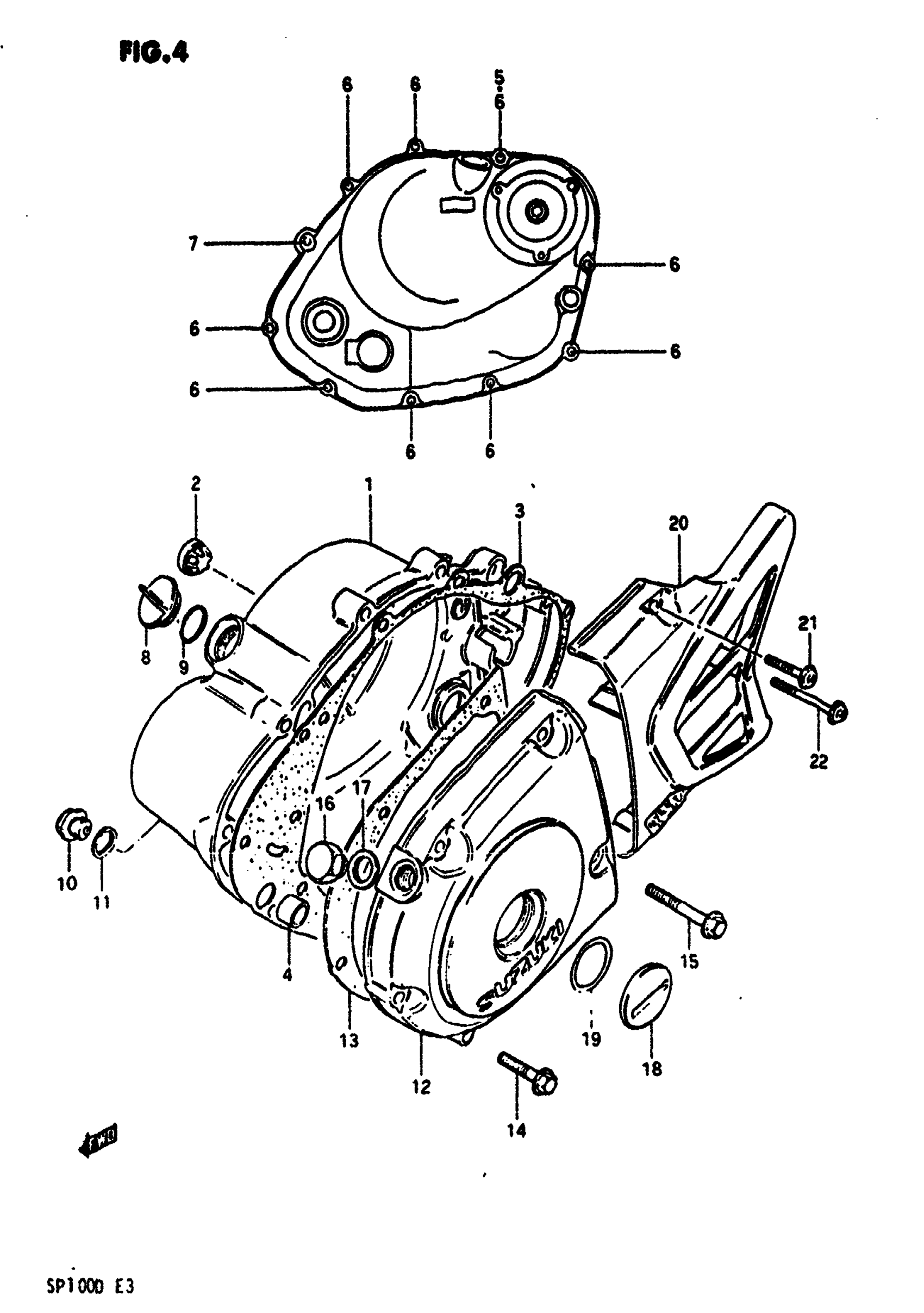

Suzuki SP100 (1983) CRANKCASE COVER Diagram

#

Description
Price

1

COVER COMP, CLU | Includes Item(s) 2 This part replaces 11340-05201.

11340-05280

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

.GASKET, CLUTCH COVER This part replaces 11482-05200.

11482-05211

$12.83

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

6

BOLT This part replaces 01547-06308.

01547-06307

$2.03

7

BOLT This part replaces 01547-06458.

01547-06457

$2.32

8

PLUG, OIL FILLER This part replaces 09259-20009.

09259-20007

$7.53

9

O RING

09280-17003

$1.65

10

PLUG This part replaces 09247-14012.

09247-14026

$3.76

11

GASKET

09168-14004

$1.83

12

NO DESCRIPTION AVAILABLE This part replaces 11351-05200.

11351-05201

Unavailable

13

.GASKET, MAGNETO COVER This part replaces 11483-05200.

11483-05210

$7.57

14

BOLT This part replaces 01547-06308.

01547-06307

$2.03

15

BOLT This part replaces 01547-06408.

01547-06407

$2.32

16

PLUG, T.D.C

09247-12104

$2.73

17

GASKET

09168-12002

$1.59

18

PLUG This part replaces 09259-26003.

09259-26011

$11.03

19

O RING

09280-22008

$2.27

20

NO DESCRIPTION AVAILABLE This part replaces 11361-05200.

11361-05201

Unavailable

21

BOLT This part replaces 01544-05258.

01547-05257

$2.19

22

BOLT (5X45) This part replaces 01544-05458.

01547-05458

Unavailable
