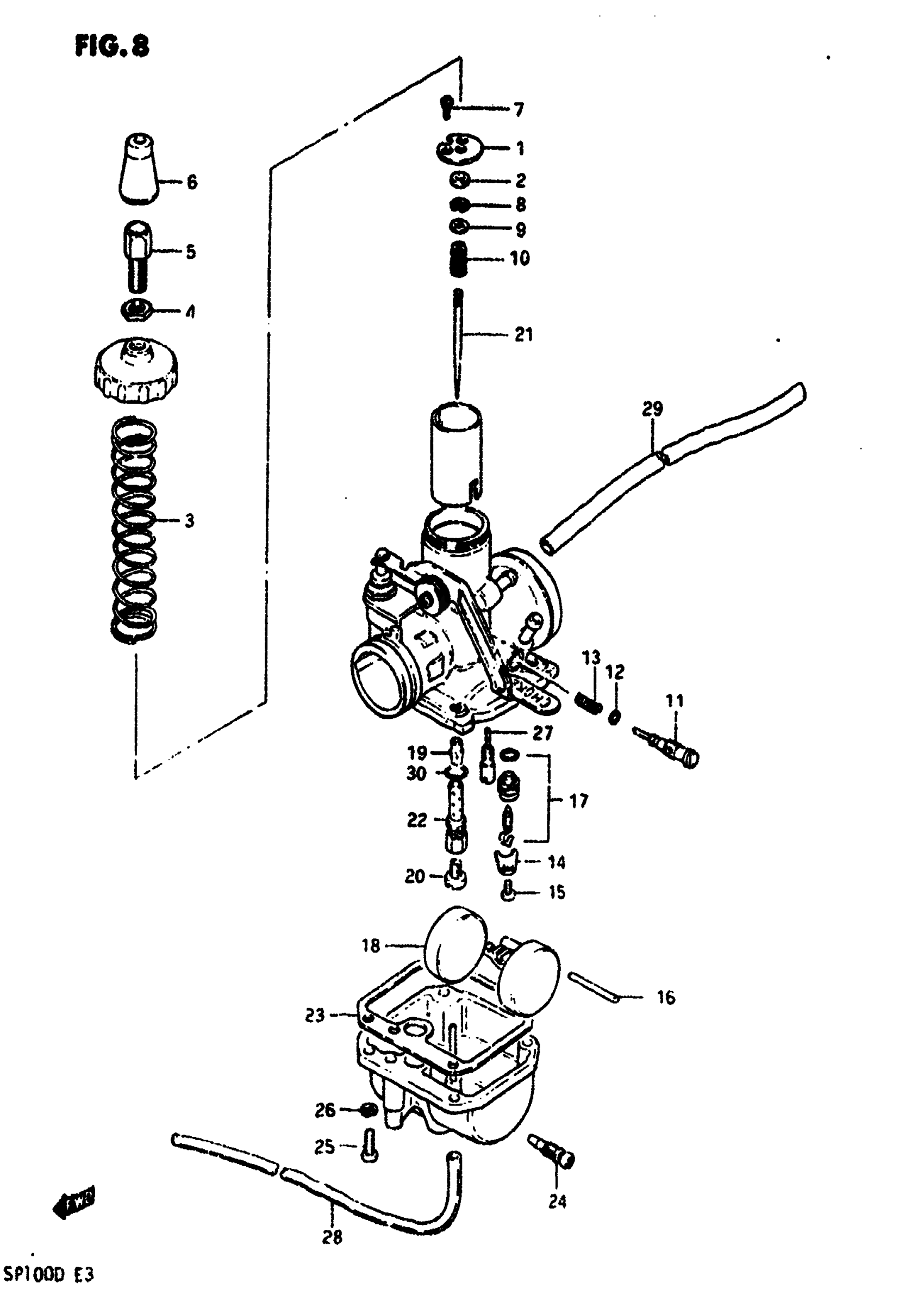

Suzuki SP100 (1983) CARBURETOR Diagram

#

Description
Price

0

(CA) CARBURETOR ASSY | OTHER THAN CALIFORNIA This part replaces 13200-05230.

13200-05250

Unavailable

0

(CA) CARBURETOR ASSY | CALIFORNIA ONLY; Includes Item(s) 1 - 31

13200-05250

Unavailable

1

PLATE

13373-05230

$7.37

2

RING

13387-47010

$7.22

3

SPRING

13573-05230

Unavailable

4

NUT

13661-16600

$4.64

5

ADJUSTER, CABLE

13577-48110

$8.30

6

CAP

13681-16600

$3.77

7

SCREW

13601-05230

$3.37

8

E RING

13394-10010

$5.45

9

PACKING

13382-47010

$3.56

10

SPRING

13388-47010

$6.91

11

ADJUSTER

13267-36600

$12.17

12

O RING

13295-33010

$4.48

13

SPRING

13268-35010

$4.48

14

PLATE

13373-46710

$6.17

15

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

16

.PIN, FLOAT

13254-01010

$3.62

17

VALVE ASSY, NEEDLE This part replaces 13370-43250.

13370-05320

$62.80

18

FLOAT

13250-05230

$26.91

19

JET, NEEDLE (N-8)

09494-00409

Unavailable

20

JET, MAIN (85)

09491-85008

$12.13

21

NEEDLE, JET (5L9-1)

13383-05230

Unavailable

22

PIPE

13385-47030

Unavailable

23

GASKET

13251-05230

Unavailable

24

SCREW, DRAIN

13247-02340

$4.99

25

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

26

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

27

JET, PILOT (22.5)

09492-22008

$14.85

28

.HOSE (3X7X600) This part replaces 13684-05230.

09355-30001-600

$8.56

29

HOSE,5X10X600 This part replaces 13683-05230.

44421-13ER0

$10.06

30

.O RING This part replaces 13246-43010.

13246-43011

$4.34

31

VALVE, PISTON

13551-05230

Unavailable
