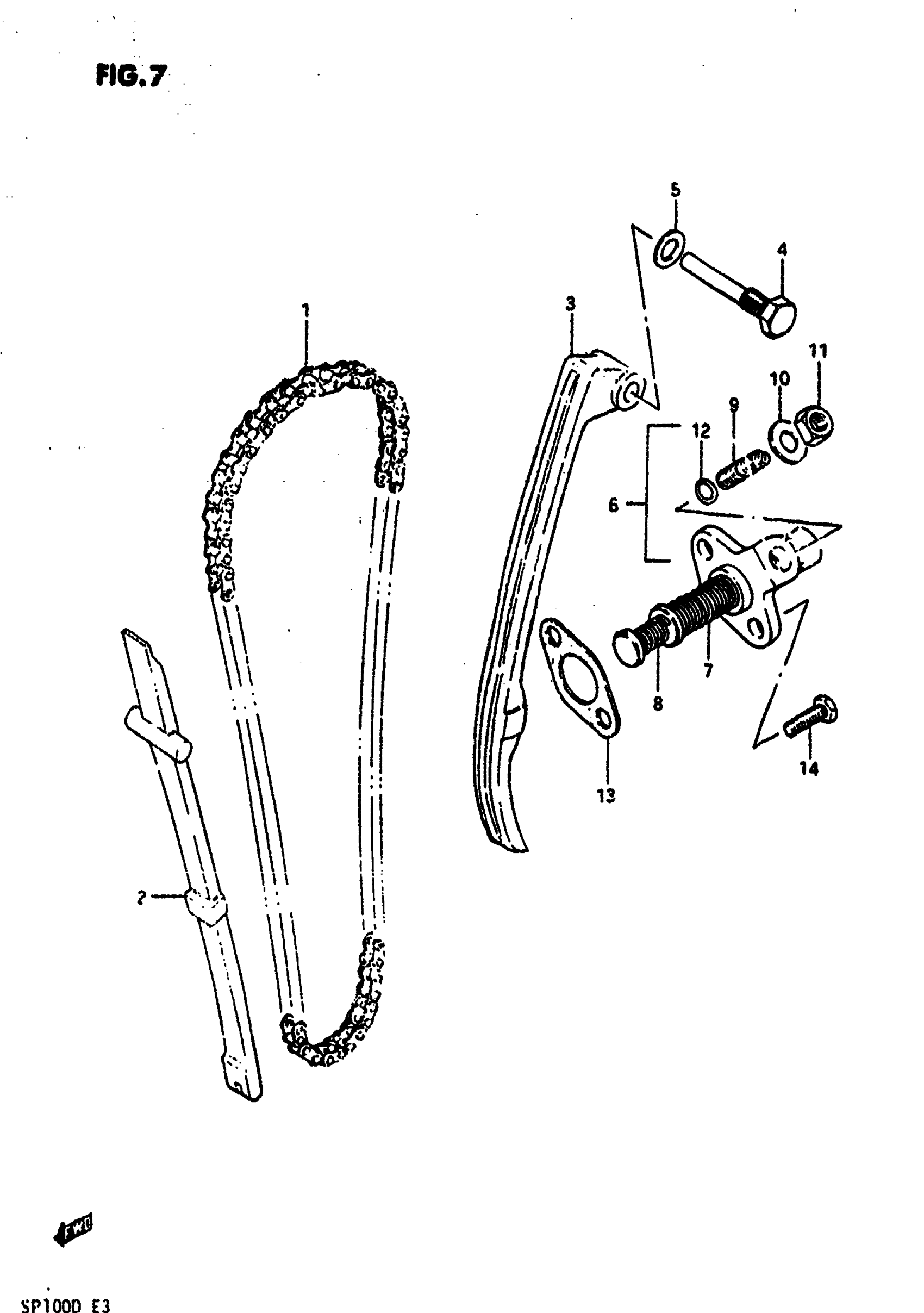

Suzuki SP100 (1983) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAMSHAFT DRIVE (98LE) | 98LE This part replaces 12760-05200.

12760-44A00

$87.25

2

GUIDE, CAM CHAIN

12771-05200

$43.68

3

TENSIONER, CAM CHAIN This part replaces 12811-05220.

12811-05221

$37.87

4

BOLT

12812-32410

$4.52

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

6

ADJUSTER ASSY,T | Includes Item(s) 7 - 12 This part replaces 12830-05200.

12830-0520V

Unavailable

7

SPRING

09440-12030

$2.50

8

SPRING

09440-09018

$2.65

9

SCREW

12838-45001

$8.42

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

NUT This part replaces 08310-12088.

08310-00087

$2.13

12

.O RING (D:1.9,ID:5.7) This part replaces 09280-06003.

09280-06005

$1.49

13

.GASKET, TENSIONER ADJUSTER This part replaces 12837-32400.

12837-32410

$2.74

14

BOLT This part replaces 01107-06208.

01500-06207

$2.28
