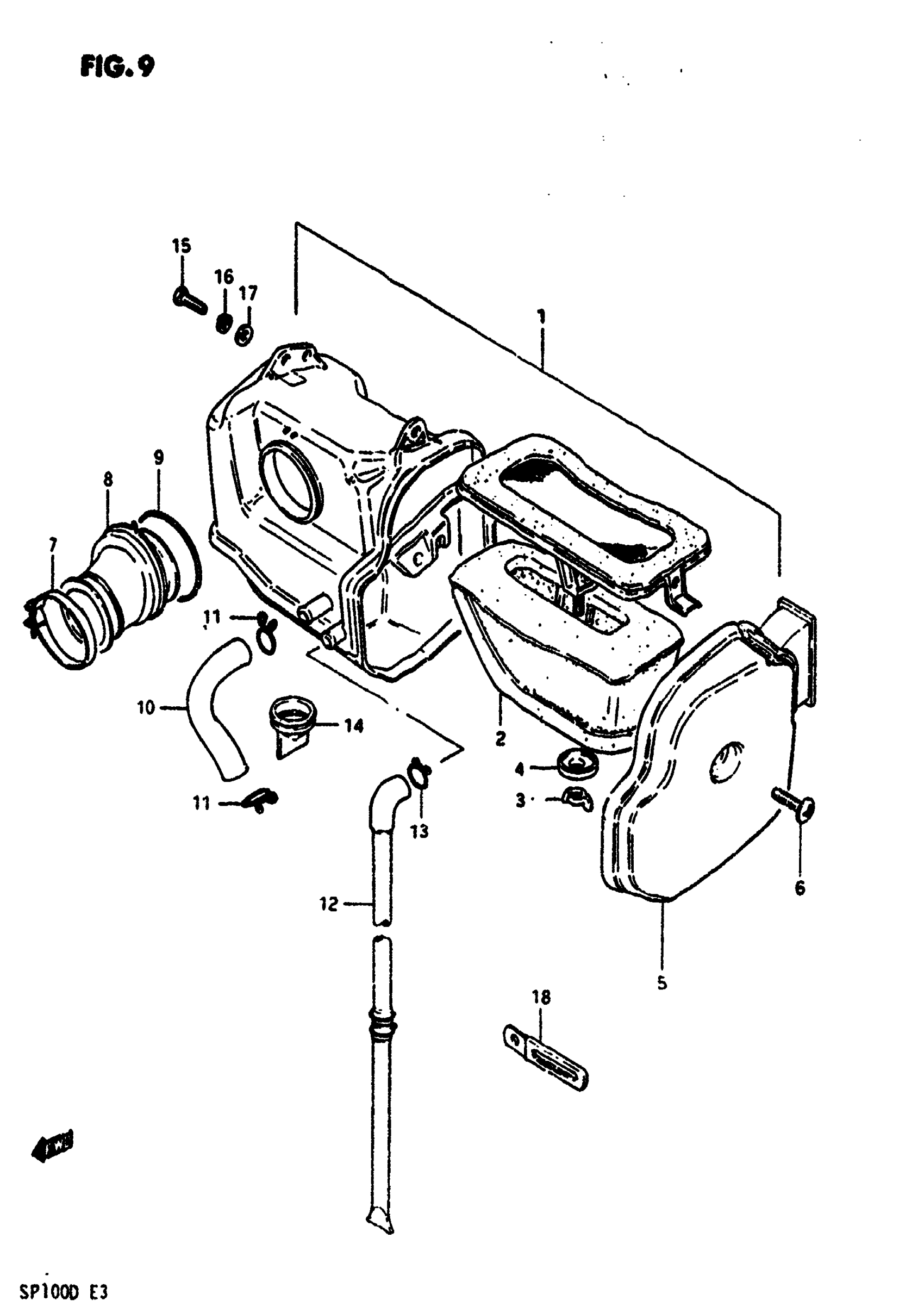

Suzuki SP100 (1983) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | OTHER THAN CALIFORNIA This part replaces 13700-05230.

13700-05231

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 2 - 14 This part replaces 13700-05240.

13700-05241

Unavailable

2

FILTER ASSY This part replaces 13781-38200.

13780-38200

Unavailable

3

NUT This part replaces 08317-11056.

08317-1205A

$2.53

4

WASHER

13796-20400

$2.99

5

CAP

13740-05230

Unavailable

6

SCREW, BODY COVER UPPER This part replaces 02142-06255.

09125-06055

$2.34

7

CLAMP This part replaces 09402-46306.

09402-46208

$4.64

8

HOSE, OUTLET

13881-05200

Unavailable

9

SPRING

13931-02100

Unavailable

10

HOSE, BREATHER

13853-05200

Unavailable

11

CLIP

09401-16301

Unavailable

12

HOSE, DRAIN (1)

13873-20400

Unavailable

13

CLIP

09401-00020

Unavailable

14

TUBE,DRAIN This part replaces 13870-00100.

13870-21629

$22.90

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 09160-06007.

09160-06084

$1.78

18

CLAMP This part replaces 09404-06412.

09404-06039

$1.74
