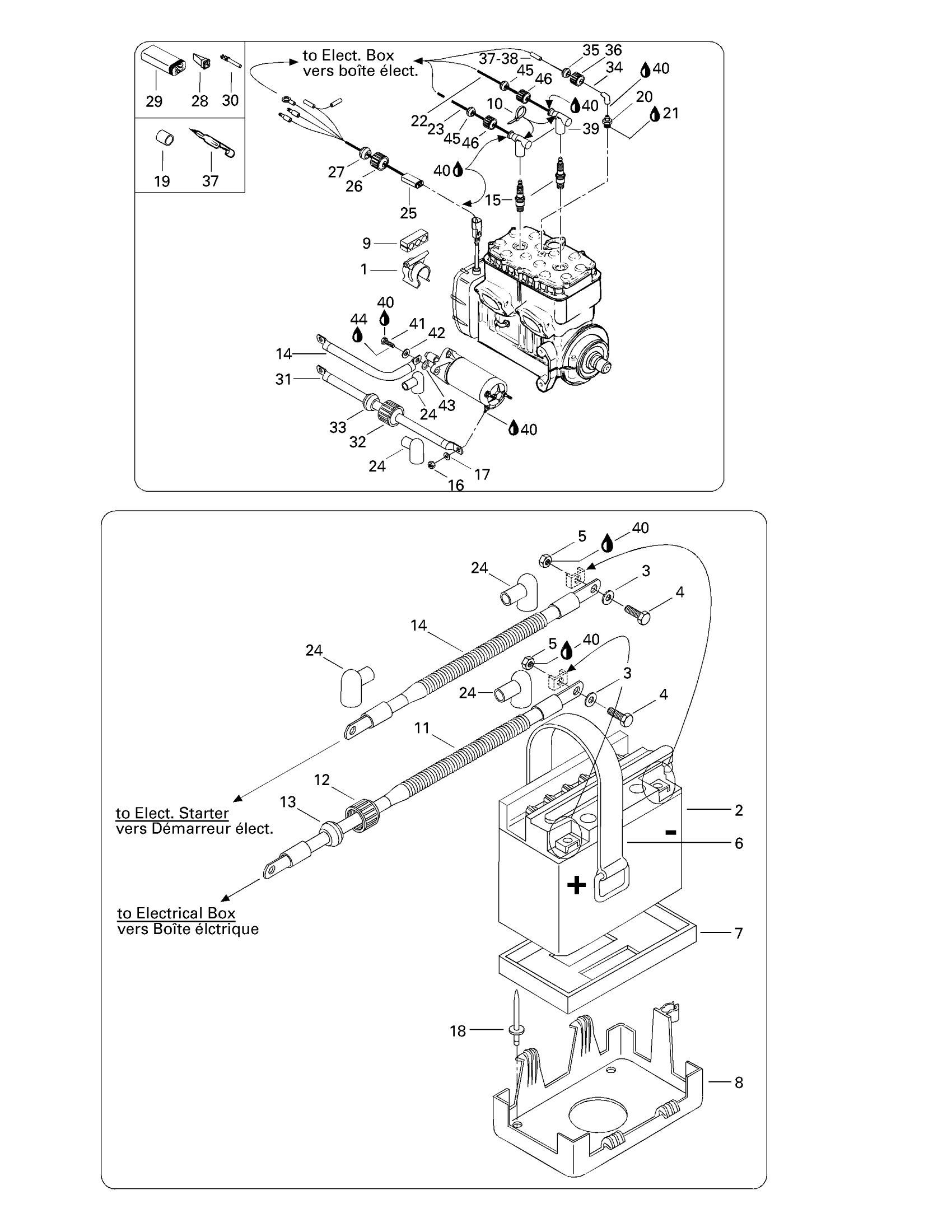

Sea-doo SP, 5879, 1997 Electrical System (SP) Diagram

#

Description
Price

1

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

2

Battery 19A | Includes 5 to 8

278001756

$153.36

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Screw M6 X 16

207161644

$0.74

5

Hex. Nut M6

232061414

$0.53

6

Retainer Strap

293850097

$11.64

7

Battery Lower Pad

278000776

Unavailable

8

Battery Support

278000476

Unavailable

9

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

10

Tie Wrap 142 mm

293750002

$1.25

11

Battery Cable (Red)

278000514

Unavailable

12

Electric Wire Cap

278000100

Unavailable

13

GROMMET - Call your local BRP dealership

278000098

Unavailable

14

Battery Ground Cable

278000681

Unavailable

15

Spark Plug NGK BR7ES | SP 5879.

219703118

Unavailable

16

Hex. Elastic Stop Nut M6

232561600

$1.15

17

Stainless Flat Washer M6

234061600

$0.33

18

Avdel Rivet 3/16"

293150037

$0.56

19

Insulation Sheath

278000231

$5.08

20

Temperature Sensor

278000194

Unavailable

21

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

22

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

23

Spark Plug Wire 530 (MAG)

278000322

Unavailable

24

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

25

Engine Harness | (Incl. It.19,21,26,47,52,54,57,64,66,67,68)

278000472

Unavailable

26

Electric Wire Cap

278000100

Unavailable

27

Grommet, 4 Circuit, Red

570026800

Unavailable

28

Male Lock, 4 Circuits | CE

278000738

$3.09

29

Male Connector, 4 Circuits | CE

278000739

$19.49

30

Female Terminal

278000632

$2.09

31

Starter Cable (Red) | Includes 51 - 53.

278000192

Unavailable

32

Electric Wire Cap

278000100

Unavailable

33

GROMMET - Call your local BRP dealership

278000098

Unavailable

34

Temperature Harness Ass'y | (Incl. It. 1,52,64,65)

278000489

Unavailable

35

Grommet, 1 Circuit, Blue

293720030

Unavailable

36

Electric Wire Cap

278000100

Unavailable

37

Male Terminal

278000230

$4.39

38

Insulation Sheath

278000231

$5.08

39

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

40

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

41

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

42

Flat Washer M8, Stainless

234080600

$1.48

43

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

44

Loctite 271, 10 ml

293800005

$26.99

45

Grommet

278000682

Unavailable

46

Electric Wire Cap

278000100

Unavailable
